FIRST® (For Inspiration and Recognition of
Science and Technology) was founded by inventor Dean Kamen to inspire young
people’s interest in science and technology. As a robotics community that
prepares young people for the future, FIRST is the world’s leading
youth-serving nonprofit advancing STEM education. For 30 years, FIRST
has combined the rigor of STEM learning with the fun and excitement of
traditional sports and the inspiration that comes from community through
programs that have a proven impact on learning, interest, and skill-building
inside and outside of the classroom. FIRST provides programs that span a
variety of age groups:
-
FIRST® Robotics Competition for grades 9-12,
ages 14-18
-
FIRST® Tech Challenge for grades 7-12, ages
12-18
-
FIRST® LEGO® League for grades
Pre-K-8, ages 4-16
o
FIRST® LEGO® League Challenge for
grades 4-8 (ages 9-16, ages vary by country)
o
FIRST® LEGO® League Explore for
grades 2-4 (ages 6-10)
o
FIRST® LEGO® League Discover for
grades Pre-K-1 (ages 4-6)
Please visit the FIRST website for more information about FIRST
and its programs.
In October 2019, Dr. Woodie Flowers, an innovator in design
and engineering education and a Distinguished Advisor to FIRST and
supporter of our mission, passed away. As thousands of heartfelt tributes to
Woodie have poured in from around the world, it is clear his legacy will live
on indefinitely through the gracious nature of our community and our ongoing
commitment to empowering educators and building global citizens.
Figure 1‑1 Dr. Woodie Flowers, 1943-2019
FIRST® Robotics Competition combines the
excitement of sport with the rigors of science and technology. Teams of
students are challenged to design, build, and program industrial-size robots
and compete for awards, while they also create a team identity, raise funds,
hone teamwork skills, and advance respect and appreciation for STEM within the
local community.
Volunteer professional mentors lend their time and talents
to guide each team. It’s as close to real-world engineering as a student can
get. Plus, high school students gain access to exclusive scholarship
opportunities from colleges, universities, and technical programs.
Each January at an event known as “Kickoff,” a new,
challenging game is introduced. These exciting competitions combine the
practical application of science and technology with the fun, intense energy,
and excitement of a championship-style sporting event. Teams are encouraged to
display Gracious Professionalism®, help other teams, and cooperate
while competing. This is known as Coopertition®.
In 2025, FIRST Robotics Competition is projected to
reach approximately 90,000 high-school students representing approximately 3,600
teams. Teams come from nearly every state in the United States, as well as many
other countries.
FIRST Robotics Competition teams will participate in 69
Regional Competitions, 103 District Competitions, and 12 District
Championships. In addition, approximately 600 teams will qualify to attend the FIRST
Championship in April 2025.
This year’s game, and this manual, were presented at the 2025
FIRST Robotics Competition Kickoff on Saturday, January 4, 2025.
At the Kickoff, all teams:
-
saw the 2025 game, REEFSCAPESM presented by Haas, for
the first time,
-
learned about the 2025 game rules and regulations, and
-
received a set of game specific materials.
Gracious Professionalism is part of the ethos of FIRST.
It’s a way of doing things that encourages high quality work, emphasizes the
value of others, and respects individuals and the community.
Gracious Professionalism is not clearly defined for a
reason. It can and should mean different things to everyone.
Some possible meanings of Gracious Professionalism
include:
-
gracious attitudes and behaviors are win-win,
-
gracious folks respect others and let that respect show in their
actions,
-
professionals possess special knowledge and are trusted by
society to use that knowledge responsibly, and
-
gracious professionals make a valued contribution in a manner
pleasing to others and to themselves.
In the context of FIRST, this means that all teams
and participants should:
-
learn to be strong competitors, but also treat one another with
respect and kindness in the process and
-
avoid leaving anyone feeling as if they are excluded or
unappreciated.
Knowledge, pride, and empathy should be comfortably and
genuinely blended.
In the end, Gracious Professionalism is part of
pursuing a meaningful life. When professionals use knowledge in a gracious
manner and individuals act with integrity and sensitivity, everyone wins and
society benefits.
Figure 1‑2 Dr. Woodie Flowers, Gracious Professionalism advocate and
exemplar
“The FIRST spirit encourages doing high-quality, well-informed
work in a manner that leaves everyone feeling valued. Gracious Professionalism
seems to be a good descriptor for part of the ethos of FIRST. It is part of
what makes FIRST different and wonderful.”
- Dr.
Woodie Flowers, (1943 – 2019)
Distinguished Advisor to FIRST
It is a good idea to spend time going over this concept with
your team and reinforcing it regularly. We recommend providing your team with
real-life examples of Gracious Professionalism in practice, such as when
a team loans valuable materials or expertise to another team that they will
later face as an opponent in competition. Routinely highlight opportunities to
display Gracious Professionalism at events and encourage team members to
suggest ways in which they can demonstrate this quality themselves and through
outreach activities.
At FIRST, Coopertition is displaying
unqualified kindness and respect in the face of fierce competition. Coopertition
is founded on the concept and philosophy that teams can and should help and
cooperate with one another even as they compete. Coopertition involves
learning from teammates and mentors. Coopertition means competing always
but assisting and enabling others when you can.
Message from Woodie Flowers Award Recipients
The Woodie Flowers Award is the most prestigious mentoring
award in FIRST. The award recipients created an important message for all FIRST
Robotics Competition teams to consider as we tackle each season.
Performing at your best is important. Winning is important.
This is a competition.
However, winning with Gracious Professionalism and being proud
of what you have accomplished and how you have accomplished it is more
important. FIRST could create rules and penalties to cover almost any scenario
or situation, but we prefer an understandable game with simpler rules that
allow us to think and be creative in our designs.
We want to know that our partners and opponents are playing at
their best in every MATCH. We want to know they are playing with integrity and
not using strategies based on questionable behaviors.
As you create your ROBOTS and award presentations, prepare for
competition and MATCH play, create and implement game strategies, and live your
daily lives, remember what Woodie said time and time again, and let’s ‘Make
your Grandmother proud.’
|
Woodie Flowers
Liz Calef (88)
Mike Bastoni (23)
Ken Patton (51, 65)
Kyle Hughes (27)
Bill Beatty (71)
Dave Verbrugge (5110, 67)
Andy Baker (3940, 45)
Dave Kelso (131)
Paul Copioli (3310, 217)
|
Rob Mainieri (812, 64, 498, 2735,
6833)
Dan Green (111)
Mark Breadner (188)
John Novak (16, 323)
Chris Fultz (234)
John Larock (365)
Earl Scime (2614)
Fredi Lajvardi (842)
Lane Matheson (932)
Mark Lawrence (1816)
|
Eric Stokely (258, 360, 2557,
& 5295)
Glenn Lee (359)
Gail Drake (1885)
Allen Gregory (3847)
Lucien Junkin (118)
Matt Fagen (4253)
Christine Sapio (2486)
Mark Buckner (4265)
Norman Morgan (2468)
|
Message from
the Global Volunteers
Welcome to the 2025 FIRST Robotics Competition – we're excited
for you to discover FIRST®
DIVE℠ presented by Qualcomm and REEFSCAPE℠ presented by Haas. We’re even more
excited to see what you and your team can achieve this season and at the more
than 185 events worldwide this season.
FIRST is made possible by our volunteers
Volunteers are the driving force behind the delivery of all
FIRST programs including the FIRST Robotics Competition. Each year it takes
thousands of volunteers donating their time, energy, and enthusiasm to ensure
that every FIRST Robotics Competition
team has the opportunity to achieve its goals. FIRST volunteers come from a
diverse set of backgrounds and are united by the same goal: to provide the best
possible FIRST experience for all participating teams.
We encourage everyone in the FIRST community to join in the fun
and excitement of events by participating as a volunteer.
Why
Volunteer?
·
Witness capable students learning and growing
·
Forge meaningful friendships with other awesome volunteers
·
Be part of the magic that brings events to life
·
Share the wonders of FIRST with those who are yet to discover it
·
Bring invaluable event experiences back to your team
·
Learn and grow beyond your usual circles
FIRST
Alumni and Graduating Students:
You’ve experienced firsthand the impact of FIRST in your
life, the opportunities it has provided, and the excitement of participating.
Your FIRST experience does not have to end after you graduate – being a
volunteer or mentor gives you the opportunity to continue learning, growing,
building a community, and having fun at FIRST events. Your experience as a
student in a FIRST program is invaluable to helping ensure future students have
an amazing experience. There are volunteer roles for every skill level,
background, and level of commitment
– everyone is welcome!
Learn more and sign up as a FIRST volunteer on the FIRST website.
FIRST
is about you
Volunteers eagerly donate their time and efforts to make it
possible for you to participate and have fun! We strive to demonstrate the
FIRST philosophies of Gracious Professionalism and Coopertition in every
interaction – in return, we ask the same of you. If for any reason you feel
like our volunteers could have done a better job, we want to know about it –
talk to a mentor, trusted adult, other event volunteer or staff member, or report
it to FIRST via customerservice@firstinspires.org.
Join us for the 2025 season and be a part of the incredible
journey that is FIRST Robotics Competition! Your involvement is key to our
collective success. We look forward to welcoming you!
With gratitude and excitement for what lies ahead, your
2025 Global Volunteers:
Global Field Supervisors –
Ayla DeLaat & Bryan Herbst
Global FIRST Technical Advisors (FTAs) – James Cerar & Mark McLeod
Global Head Referees – Aidan Browne & Jon Zawislak
Global Judge Advisors – Cindy Stong & Allen Bancroft
Global Lead Robot Inspectors – Al Skierkiewicz & Chuck Dickerson
Global Lead Scorekeepers – Alex Herreid & Andrea “Duckie” Tribo
Global Volunteer Coordinators – Laurie Shimizu & Sarah Plemmons
1.7
This Document & Its Conventions
The 2025 Game Manual is a resource for all FIRST Robotics
Competition teams for information specific to the 2025 season and the REEFSCAPE
game. Its audience will find the following detail:
-
a general overview of the REEFSCAPE game,
-

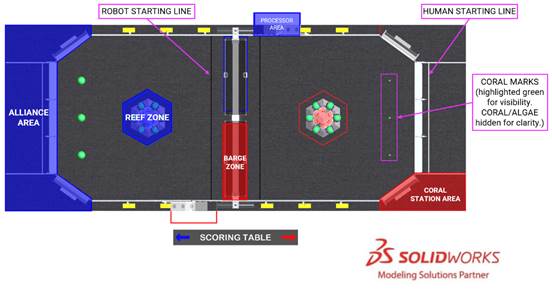

detail about the REEFSCAPE playing FIELD,
-
a description of how to play the REEFSCAPE game,
-
rules (related to safety, conduct, game play, inspection, event, etc.),
and
-

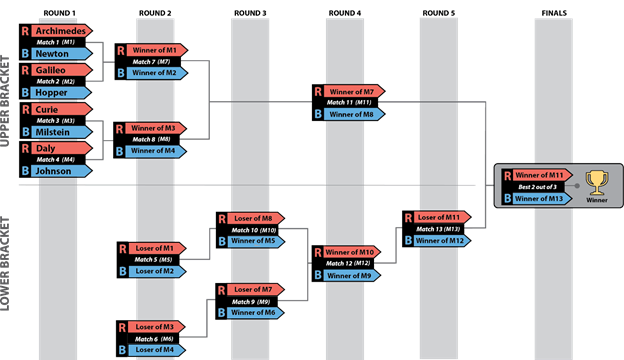

a description of how teams advance at 2025 tournaments and
throughout the season
The intent of this manual is that the text means exactly,
and only, what it says. Please avoid interpreting the text based on assumptions
about intent, implementation of past rules, or how a situation might be in
“real life.” There are no hidden requirements or restrictions. If you’ve read
everything, you know everything.
Specific methods are used throughout this manual to
highlight warnings, cautions, key words, and phrases. These conventions are
used to alert the reader to important information and are intended help teams
in constructing a ROBOT that complies with the rules in a safe manner.
Links to other section headings in this manual, external
articles, and rule references appear in blue
underlined text.
Key words that have a particular meaning within the context
of the FIRST Robotics Competition and REEFSCAPE are defined in section 15 Glossary and indicated in ALL CAPS throughout this
document.
The rule numbering method indicates the section, subsection,
and position of the rule within that subsection. The letter indicates the
section in which the rule is published.
-
Q for Section
6.7.1 Question Box
-
G for Section 7
Game Rules
-
R for Section 8 ROBOT Construction Rules
-
I for Section 9 Inspection & Eligibility
-
T for Section
10 Tournaments
-
C for Section 13 FIRST Championship Tournament
-
E for Section
14 Event Rules
The following digit(s) represents the subsection in which
the rule can be found. The final digits indicate the rule’s position within
that subsection.
Figure 1‑3 Rule numbering method
Warnings, cautions, and notes appear in blue boxes. Pay
close attention to their contents as they’re intended to provide insight into
the reasoning behind a rule, helpful information on understanding or
interpreting a rule, and/or possible “best practices” for use when implementing
systems affected by a rule.
While blue boxes are part of the manual, they do not carry
the weight of the actual rule (if there is an inadvertent conflict between a
rule and its blue box, the rule supersedes the language in the blue box).
Imperial dimensions are followed by comparable metric
dimensions in parentheses to provide metric users with the approximate size,
mass, etc. Metric conversions for non-rules (e.g. dimensions) round to the
nearest whole unit, e.g. "17 in. (~43 cm)” and “6 ft. 4 in. (~193 cm).”
Metric conversions in rules round such that the metric dimension is compliant
with the rule (i.e. maximums round down, minimums round up). The metric
conversions are offered for convenient reference only and do not overrule or
take the place of the imperial dimensions presented in this manual and the
official drawings (i.e. dimensions and rules will always defer to measurements
using imperial units).
Rules include colloquial language, also called headlines, in
an effort to convey an abbreviated version of the rule or rule set. There are
two versions of headline formatting. Evergreen rules, or rules which are
expected to go relatively unchanged from season to season, are indicated with a
leading asterisk and their rule number and headline are presented in bold green text. “Relatively unchanged” means
that the overall intent and presence of the rule from season to season is
constant, but game specific terms may be updated as needed (e.g. changing
Power Cells to ALGAE in a rule about what COACHES may not contact during a MATCH).
These rules also start their respective section, so their rule number is not
expected to change from season to season. All other rule headlines use bold blue text. Any disagreement between
the specific language used in the rules and the colloquial language is an
error, and the specific rule language is the ultimate authority. If you
discover a disparity, please let us know at customerservice@firstinspires.org
and we will correct it.
Team resources that aren’t generally season specific (e.g.,
what to expect at an event, communication resources, team organization
recommendations, ROBOT transportation procedures, and award descriptions) can
be found on the FIRST Robotics Competition website.
The REEFSCAPE manual is originally and officially written in
English and is occasionally translated into other languages for the benefit of FIRST
Robotics Competition teams whose native language may not be English. These
assets are posted on the Translated Manuals page.
A text-based English version is provided only for use with
assistive devices on the Translated Manuals page. This document is
locked for editing and has a watermark applied to indicate that it should not be
copied. If you have any questions on the document, please contact the FIRST
Robotics Competition Team Advocate at frcteamadvocate@firstinspires.org.
In the event that a rule or description is modified in an
alternate version of this manual, the English pdf version as published on the REEFSCAPE - Season Materials web page is the
commanding version.
Team Updates are used to notify the FIRST Robotics Competition
community of revisions to the official season documentation (e.g. the manual,
drawings, etc.) or important season news. Team Update posts are scheduled as
follows:
-
each Tuesday and Friday, starting on the first Tuesday after
Kickoff and ending on the Tuesday prior to Week 1 events
-
each Tuesday, starting Week 1 and ending the week after the final
District Championship events.
Team Updates are posted on the REEFSCAPE - Season Materials web page and are
generally posted before 5 pm, Eastern.
Generally, Team Updates follow the following convention:
-
Additions are highlighted in yellow. This is an example.
-
Deletions are indicated with a strikethrough. This is an
example.
The Question and Answer System (Q&A) is a
resource for clarifying the 2025 REEFSCAPE Game Manual, Awards webpages, official FIELD drawings, and/or FIRST Robotics Competition District and Regional Events
web page content. Teams can search for previously asked questions
and responses or pose new questions. Questions can include examples for clarity
or reference multiple rules to understand the relationships and differences
between them.
The Q&A opens on January 8, 2025, 12:00 PM Eastern.
Details on the Q&A can be found on the REEFSCAPE - Season Materials web page. The
Q&A may result in revisions to the text in the official manuals (which are
communicated using the process described in Team Updates).
The responses in the Q&A do not supersede the text in
the manual, although every effort will be made to eliminate inconsistencies
between the two. While responses provided in the Q&A may be used to aid
discussion at each event, per section 9 Inspection & Eligibility and section 6.7 Head REFEREE and FTA Interaction, REFEREES and
INSPECTORS are the ultimate authority on rules. If you have concerns about
enforcement trends by volunteer authorities, please notify FIRST at customerservice@firstinspires.org.
The Q&A is not a resource for firm predictions on how a
situation will play out an event. Questions about the following will not be
addressed:
-
rulings on vague situations,
-
challenging decisions made at past events, or
-
design reviews of a ROBOT system for legality.
Weak questions are overly broad, vague, and/or include no
rule references. Some examples of questions that will not be answered in the
Q&A are:
-
Is this part/design legal?
-
How should the REFEREE have ruled when this specific game play
happened?
-
Duplicate questions
-
Nonsense questions
Good questions ask generically about features of parts or
designs, gameplay scenarios, or rules, and often reference one or more relevant
rules within the question. Some examples of questions that will likely be
answered in the Q&A are:
-
A device we are considering using on the ROBOT comes with purple
AWG 40 wire, does this comply with R?? and R??
-
We’re not sure how to interpret how Rule G?? applies if blue ROBOT
A does X and red ROBOT B does Y, can you please clarify?
-
If a ROBOT does this specific action, is it doing what this
defined term is describing?
Questions from “FRC 99999” represent content asked by key
volunteers (e.g., REFEREES, INSPECTORS, etc.), answered by FIRST, and
are considered relevant to teams.
Beneath the ocean’s surface lies our planet’s most complex
ecosystems, full of life and potential for exploration and learning, where each
inhabitant has a role to play in building a thriving environment.
During the 2024-2025 FIRST® season, FIRST®
DIVE℠ presented by Qualcomm, teams will use their STEM and collaboration skills
to explore life beneath the surface of the ocean. Along the way, we’ll uncover
the potential in each of us to strengthen our community and innovate for a
better world with healthy oceans.
Thank you to the 2025 FIRST® Robotics
Competition season presenting sponsor, the Gene Haas Foundation.
In REEFSCAPESM presented by Haas, two competing alliances
are invited to score coral, harvest algae, and attach to the barge before time
runs out. Alliances earn additional rewards for meeting specific scoring
thresholds and for cooperating with their opponents.
During the first 15 seconds of the match, robots are
autonomous. Without guidance from their drivers, robots leave their starting
zone, score coral on the reef, harvest algae from the reef, and collect and
score additional coral.
During the remaining 2 minutes and 15 seconds, drivers
control their robots. Robots collect coral from human players at their coral
station and score them on the reef. To unlock all scoring locations on the
reef, robots must dislodge algae from the reef and either score it in the barge
or deliver it to the human player through the processor.
A human player can then deliver the algae to the barge. If
at least two algae are scored in the processor by each alliance, both alliances
earn a Coopertition Point (which influences their rank in the
tournament) and lowers the requirements for a ranking point.
As time runs out, robots prepare to return to the surface
with their algae by grabbing onto their cages and parking under the barge.
The alliance that earns the most points wins the match!
The ARENA includes all elements of the game
infrastructure that are required to play REEFSCAPESM presented by
Haas: the FIELD, SCORING ELEMENTS, queue area, team media area, designated TECHNICIAN
area, and all equipment needed for FIELD control, ROBOT control, and
scorekeeping.
Figure 5‑1 REEFSCAPE ARENA (queue area, TECHNICIAN area, and media area
not pictured)
The ARENA is modular and assembled, used, disassembled, and
shipped many times during the competition season. It undergoes wear and tear.
The ARENA is designed to withstand rigorous play and frequent shipping. Every
effort is made to ensure that ARENAS are consistent from event to event.
However, ARENAS are assembled in different venues by different event staff and
some small variations occur. For details regarding assembly tolerances, please
refer to the 2025 ARENA Layout and Marking Diagram. Successful teams will design ROBOTS that are
insensitive to these variations.
Illustrations included in this section are for a general
visual understanding of the REEFSCAPE ARENA, and dimensions included in the
manual are nominal. Please refer to the official drawings for exact dimensions,
tolerances, and construction details. The official drawings, CAD models, and
drawings for low-cost versions of important elements of the REEFSCAPE FIELD are
posted on the REEFSCAPE Playing FIELD web page on the FIRST
website.
Each FIELD for REEFSCAPE is an approximately
26 ft. 5 in. (~805 cm) by 57 ft. 6⅞ in. (~1 755 cm) carpeted area bounded by
inward facing surfaces of the ALLIANCE WALLS, CORAL STATIONS, PROCESSORS and
PROCESSOR openings, and guardrails.
Figure 5‑2 FIELD boundary in pink
The FIELD is populated with and surrounded by the following
elements:
-
1 REEF per ALLIANCE,
-
1 PROCESSOR per ALLIANCE,
-
2 CORAL STATIONS per ALLIANCE, and
-
1 BARGE which consists of 3 CAGES and 1 NET for each ALLIANCE.
The surface of the FIELD is low pile carpet, Shaw Floors,
Philadelphia Commercial, Neyland II 20, “66561 Medallion.” Neyland II carpet is
not available for purchase, and the closest equivalent is Shaw, Philadelphia Brand, Profusion 20, Style 54933;
see results from FIRST’s evaluation in this blog post.
Carpet edges and seams are secured with 3MTM Premium
Matte Cloth (Gaffers) Tape GT2, GT3 or comparable Gaffer’s Tape. Tears, rips,
and damage to the carpet may be repaired with the same styles of tape and
ROBOTS must be prepared to operate on surfaces made of carpet, tape, or
combinations of both materials as repairs are made through the course of
competition.
Guardrails form the long edges of the FIELD. Guardrails are
a 1 ft. 8 in. (~51 cm) tall system of transparent polycarbonate supported on
the top and bottom by aluminum extrusion. There are 4 gates in the guardrail
that allow access to the FIELD for placement and removal of ROBOTS. The gate
passthrough, when open, is 3 ft. 2 in. (~97 cm) wide. Gates are closed and
shielded during the MATCH.
Figure 5‑3 Gate locations
There are 2 versions of guardrails and DRIVER STATIONS used
for competitions. 1 design is reflected in the 2025 Official FIRST FIELD Drawings & Models.
The other is designed and sold by AndyMark. While the designs are slightly
different, the critical dimensions, performance, and expected user experience
between them are the same unless otherwise noted. Detailed drawings for the
AndyMark design are posted on the AndyMark website. All illustrations in this
manual show the traditional FIELD design.
FIELD areas, zones, and markings of consequence are
described below. Unless otherwise specified, the tape used to mark lines and
zones throughout the FIELD is 2 in. (~51 mm) 3M™ Premium Matte Cloth (Gaffers) Tape (GT2), ProGaff® Premium Professional Grade Gaffer Tape,
or comparable gaffers tape.
Figure 5‑4 Areas, markings, and zones
-
ALLIANCE AREA: a 30 ft. wide by 13 ft. 8⅜
in. deep (~914 cm by 423 cm) infinitely tall volume formed by, and including
the ALLIANCE WALL, CORAL STATION AREAs, the edge of the carpet, and white
colored tape perpendicular to the DRIVER STATIONS.
-
BARGE ZONE: a 3 ft. 10 in. deep by 12 ft. 2½
in. long (~117 cm by 372 cm)., infinitely tall, 4-sided volume surrounding the
ALLIANCE’S half of the BARGE. It is bounded by and includes the
ALLIANCE-colored tape.
-
CORAL MARK: 1 of 6 4 in. by 4 in. (~102 mm
by 102 mm) “+” marks used to identify placement of CORAL before the MATCH.
Marks are made with black tape.
-
CORAL STATION AREA: a 5 ft. 10⅞ in.
wide by 13 ft. 8⅜ in. ft deep (~180 cm by 423 cm) infinitely tall volume bounded
by the CORAL STATION, edge of carpet, and ALLIANCE and white colored tape.
-
HUMAN STARTING LINE: a white line
spanning the ALLIANCE AREA between the CORAL STATION AREAs that is parallel to
and located 2 ft. (~61 cm) from the bottom square tube of the ALLIANCE WALL to
the near edge of the tape.
-
PROCESSOR AREA: a 3 ft. 7⅜ in. wide by 7
ft. 6 in. deep (~110 cm by 229 cm) infinitely tall volume formed by, and
including, the ALLIANCE colored tape, guardrail, and the PROCESSOR wall.
-
REEF ZONE: an infinitely tall 6-sided, 7 ft. 9½
in. wide (face to face) (~237 cm), volume surrounding the ALLIANCE’S REEF. It
is bounded by and includes the ALLIANCE-colored tape.
-
ROBOT STARTING LINE: a black line that
spans the width of the FIELD between each REEF and the BARGE. It is positioned
such that it is 7 ft. 4 in. (~224 cm) from the REEF.
Figure 5‑5 REEF
A REEF is 1 of 2 5 ft. 5 ½ in. (~166 cm) hexagonal
structures with BRANCHES that extend from each side where CORAL are scored.
Each ALLIANCE has a dedicated REEF centered between each guardrail and located 12
ft. away from the ALLIANCE WALL. Each REEF has 4 levels to score on: Level 1
(L1), Level 2 (L2), Level 3 (L3), and Level 4 (L4).
Figure 5‑6: Scoring Level Locations (L1-L4)
The base of each REEF has a trough (L1) into which ROBOTS
can score CORAL. The trough includes the angled and vertical surfaces, as well
as the top of the front edge as shown in Figure 5‑7. The front edge of the trough is 1 ft. 6
in. (~46 cm) off the carpet.
Figure 5‑7: Trough Surfaces
Vertical pipes extend up from the base, and pipes on the
same face are 1 ft. 1 in. (~33 cm) apart (center to center). The pipes are made
out of 1-¼ in. Schedule 40 Steel. Each pipe has 3 BRANCHES which are angled or compound extensions from the REEF vertical pipes.
L2 is the 12 lowest level BRANCHES and are angled up at 35°.
The highest point of the L2 BRANCH is 2 ft. 7⅞ in. (~81 cm) from the carpet and
is inset 1⅝ in. (~41 mm) from the REEF base.
L3 is the 12 mid-level BRANCHES and are angled up at 35°.
The highest point of the L3 BRANCH is 3 ft. 11⅝ in. (~121 cm) from the carpet
and is inset 1⅝ in. (~41 mm) from the REEF base.
L4 is the 12 highest-level BRANCHES and they are vertical.
The highest point of the L4 BRANCH is 6 ft. (~183 cm) from the carpet and is inset
1⅛ in. (~29 mm) from the REEF base.
For scoring purposes, the BRANCHES of the REEF are tracked
in FMS as follows:
Figure 5‑8: Reef Scoring Location Tracking
Figure 5‑9 BARGE
The BARGE is a 29 ft. 2 in. (889 cm) wide, 3
ft. 8 in. (~112 cm) deep, and 8 ft. 5 in. (~257 cm) tall structure that spans
the center of the FIELD. It is made of truss structure supported by legs
just outside the guardrail. The BARGE includes 6 CAGES, a red and blue NET, and
all structure supporting CAGES and NETS. The horizontal truss structure is 5
ft. 2 in. (~157 cm) above the carpet and is supported in the center of the
FIELD by vertical truss and supporting materials. The BARGE has three CAGE
locations on each side located 3 ft. 5½ in., 7 ft. ⅜ in., 10 ft. 7⅜ in. (~105
cm, ~214 cm, ~324 cm) from mid field to the center of the CAGE.
The BARGE has three segments of lights on each side of the
truss which indicate progression toward and completion of the Coopertition
Bonus and the final 20 seconds in the match. One segment will light up each
time an ALGAE is scored in the PROCESSOR. Once each alliance has scored two
ALGAE all six segments will illuminate. The lights will flash to indicate that
there are 20 seconds left in the match. At the end of the match, the lights
will illuminate and then turn off 3 seconds after the ARENA timer displays 0:00
following TELEOP to help indicate to REFEREES when scoring assessments should
be made.
Figure 5‑10 Shallow (left) and Deep (right) staged CAGES
CAGES are 2 ft. tall and 7⅜ in. wide (outside
dimension) (~61 cm tall and ~19 cm wide) rectangular structures. Each CAGE
is a welded structure made of 4 steel 1 in. Schedule 40 pipes, a bottom plate,
a top plate, and an eyebolt with fastening hardware. CAGES are suspended from the truss structure in specific locations
as shown in Figure 5‑9 and hang at shallow or deep positions
according to the corresponding team’s selection (see section 6.3.5 CAGES for details) such that the bottom of the cage
is 2 ft. 6-1/8 in. (~77 cm) and 3-1/8 in. (~79 mm) from the carpet respectively.
Deep CAGES are suspended using chain that is 19 links of ¼-in. Grade 43 zinc plated chain.
ANCHORS are a collection of surfaces at
the top of the CAGE and chain assembly that include the following items and
as shown in Figure 5‑11:
A.
the top surface of the CAGE top plate,
B.
the chain,
C.
both carabiners,
D.
the portion of the eye bolt extending above the CAGE top plate,
E.
the eye nut attached to the BARGE,
F.
the upper end surfaces of the CAGE pipes, and
G.
the inside surfaces of the CAGE pipes.
Figure 5‑11: ANCHOR Surfaces
Figure 5‑12 NET
A NET is a goal in
which an ALLIANCE scores ALGAE. The NET is ¼ in. (~6 mm) knit polyester
mesh, 4 ft. (~122 cm) wide by 12 ft. (~366 cm) long with a sewn cord border. It
is available for purchase from AndyMark, am-5522. It is suspended from the top of the BARGE such that its
lowest point hangs 6 ft. 4 in. (~193 cm) above the FIELD carpet. There is a NET
for the Blue ALLIANCE and for the Red ALLIANCE.

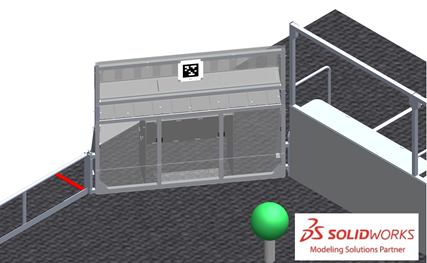

Figure 5‑13: PROCESSOR
A PROCESSOR is a goal into which an ALLIANCE scores ALGAE. There
is 1 PROCESSOR per ALLIANCE. The PROCESSOR is integrated into the guardrail near
the ALLIANCE’S REEF ZONE and adjacent to the opponent’s PROCESSOR AREA. Each PROCESSOR
has a rectangular opening through which ROBOTS score ALGAE
which is 2 ft. 4 in. wide (~71 cm), 1 ft. 8 in. tall (~51 cm), and 7 in. (~18
cm) from the carpet.
Once an ALGAE passes through the PROCESSOR, it rolls past a
scoring sensor array and into the opponent’s PROCESSOR AREA. The HUMAN PLAYER
must keep the PROCESSOR clear for scoring, and can shift scored ALGAE on top of
the PROCESSOR where there are designated ALGAE holders.
Figure 5‑14: Red ALLIANCE WALL (highlighted in red)
The ALLIANCE WALL separates ROBOTS
from DRIVE TEAM members in the ALLIANCE AREA. It consists of 3 DRIVER
STATIONS.
Figure 5‑15 DRIVER STATION (ALLIANCE AREA perspective and FIELD
perspective)
A DRIVER STATION is 1 of 3
assemblies within an ALLIANCE WALL behind which a DRIVE TEAM operates their ROBOT.
Each DRIVER STATION is made from a 3 ft. ¾ in. (~93 cm) tall diamond plate base
topped with a 3 ft. 6 in. (~107 cm) tall transparent plastic sheet and a top
rail. An aluminum shelf is attached to each DRIVER STATION to support an
OPERATOR CONSOLE. The shelf is 5 ft. 9 in. (~175 cm) wide and 1 ft. ¼ in. (~31
cm) deep. There is a 4 ft. 6 in. (~137 cm) long by 2 in. (nominal) wide strip
of hook-and-loop tape (“loop” side) along the center of the support shelf that
may be used to secure the OPERATOR CONSOLE to the shelf. The shelf also
includes two clips to hold the shelf in place with a 1 in. (~25 mm) by 2 in. (~51
mm) thick tab that sits on the top surface of the shelf.
There may be a ramp available at events for DRIVE TEAMS
with limited mobility. It is designed to allow an individual using a wheelchair
to access the DRIVER STATION shelf and/or see onto the FIELD; however, this
accommodation is available to anyone who has a wheelchair or other physical
disability that obstructs their view of the FIELD. Due to space constraints,
the ramp is not allowed to be used in the PROCESSOR AREA. Teams should speak to
the FTA before MATCHES begin to ensure that it is available for each of the
team’s MATCHES.
This ramp is available at many Regional and District
events. For questions, please connect with the local Program Delivery Partner.
Each DRIVER STATION contains the following elements for
DRIVE TEAMS:
-
1 Ethernet cable: attaches to the Ethernet port of the OPERATOR
CONSOLE and provides connectivity to the FIELD Management System
(FMS)
-
1 120VAC NEMA 5-15R power outlet (i.e. standard US outlet):
located on each DRIVER STATION shelf and protected by its own 2-Amp circuit
breaker. It can be used to power the OPERATOR CONSOLE. DRIVE TEAMS are
responsible for monitoring their power consumption as a tripped breaker in the
outlet does not constitute an ARENA FAULT. For some events in regions that
don’t use NEMA 5-15 shaped outlets, event organizers may install appropriate
plug adapters to be used throughout the event.
-
1 Emergency Stop (E-Stop) button: located on the left side of the
DRIVER STATION shelf and is used to deactivate a ROBOT in an emergency
-
1 Autonomous Stop (A-Stop) button: located on the right side of
the DRIVER STATION shelf and is used to DISABLE a ROBOT during AUTO
-
1 team sign: located at the top of each DRIVER STATION. The FIELD
facing side of the sign displays the team number in the ALLIANCE color. The
ALLIANCE AREA side of the sign displays the following information in red:
o
Pre-MATCH: team number and ROBOT connection state
o
During the MATCH:
§
remaining MATCH period time,
§
MATCH scores, and
§
progress towards the CORAL RP threshold (n/a during the Playoff
Tournament).
Figure 5‑16 Back of team sign
-
1 timer (in DRIVER STATION 2 only): displays the official time
remaining in the MATCH period on the FIELD-facing side (in white) and a more
detailed breakdown of CORAL scored on each level of the REEF on the TEAM-facing
side. (in red).
Figure 5‑17 Back of timer
-
1 team LED stack: indicates ALLIANCE color, ROBOT status, E-Stop and
A-Stop status, and is centered at the top of each DRIVER STATION.
The stack includes 2 identical ALLIANCE-colored
ROBOT status LEDs above a third amber A-stop/E-stop LED. LED states are as
follows:
o
ROBOT status LEDs
§
Solid: indicates that the ROBOT is connected and enabled. This
only happens during a MATCH.
§
Blinking: indicates that either the FMS is preset for the MATCH
and the ROBOT is not connected yet, or it’s during a MATCH and the
corresponding ROBOT is BYPASSED, has lost connectivity, or the E-stop was
pressed.
§
Off: indicates that the ROBOT is linked and DISABLED prior to the
start of the MATCH. This light is also off, regardless of ROBOT connection
status, after the MATCH has concluded.
o
A-Stop/E-stop LED
§
Solid: the ROBOT is DISABLED due to a press of the team E-stop
button, the FIELD E-stop button, or by the scorekeeper via the FMS.
§
Blinking: the ROBOT is DISABLED for the remainder of AUTO due to
a press of the team A-Stop button.
§
Off: the ROBOT is not DISABLED by the FIELD.
-
FMS hardware and wiring: mostly located below shelves in the 2
DRIVER STATIONS closer to the scoring table.
Figure 5‑18 CORAL STATION
A CORAL STATION is an assembly
through which HUMAN PLAYERS feed CORAL into the FIELD. There are 4 CORAL STATIONS,
1 in each corner of the FIELD connecting the guardrail to the ALLIANCE WALL. Each
CORAL STATION has a 6 ft. 4 in. wide by 7 in. tall (~193 cm wide by ~18 cm tall)
opening through which CORAL passes to the FIELD; the bottom of the opening is 3
ft. 1½ in. (~95 cm) from the carpet. A 55° sloped tunnel,
called the CHUTE, leads to the opening in the CORAL
STATION.
There are 2 stools available at events for DRIVE TEAMS to
use. Each stool is 1 ft. 11 in. (~58 cm) wide by 1 ft. 1½ in. (~34 cm) deep, 6¼
in. (~16 cm) tall, and rated for 300 lbs. (~136 kg).
It is specially intended to allow individuals who are
shorter, better sightlines onto the FIELD; however, this accommodation is
available to anyone who has another physical disability that obstructs their
view of the FIELD. Due to space constraints, stools are not allowed to be used
in the PROCESSOR AREA.
Only 2 stools are available, and priority will be given to
those with the biggest need. Teams should speak to the FTA before MATCHES begin
to request that it is available for each of the team’s MATCHES. Teams may also purchase
their own (Item Number: 779ac01stpm) or bring an
equivalent (e.g. not foldable and similar dimensions) version to the event to
guarantee use for every match.
This stool is available at all events within the US &
Canada and equivalents are available at international events. For questions,
please connect with the local Program Delivery Partner.
SCORING ELEMENTS are items that teams use to score
additional points. There are 2 types of SCORING ELEMENTS used in REEFSCAPE:
CORAL and ALGAE.
Figure 5‑19 CORAL
A CORAL is a 11 ⅞ in. long (~30 cm) piece of 4
in. diameter Schedule 40 Cellular (Foam) Core PVC pipe. CORAL has a 4-in. (~102
mm) inside diameter and a 4½-in. (~11 cm) outside diameter. CORAL is
available for purchase from AndyMark, am-5601 or can be cut from longer lengths of 4
in. diameter Schedule 40 Cellular (Foam) Core PVC pipe.
Prior to Kickoff, CORAL was known as “Game Piece 1” and not
available for pre-order prior to the season.
CORAL in the KOP and at events has a weight of between 1.1-1.8
lbs. (~0.5-0.8 kg) and has text marking along the length of the pipe that may
vary in color.
Teams should be aware that CORAL and PVC pipe from
different sources may have variances in color, markings, and weight.
CORAL undergoes wear and tear during a competition.
Generally, a CORAL that still appears to look approximately like a CORAL is
considered a CORAL for the purposes of rule evaluation and scoring, whether
damaged or not. Small chunks of a CORAL are not considered a CORAL.
The edge of the CORAL may be rough or sharp. Teams should
use caution when handling CORAL.
Figure 5‑20: ALGAE
Each ALGAE is a 16.25 in. (~413 mm) ± ¼ in.
(~6 mm) diameter rubber playground ball. The ball is custom made for FIRST
by Baden Sports and sold by AndyMark am-5602.
Prior to Kickoff, ALGAE was known as “Game Piece 2” and was
available for pre-order prior to the season.
At events, ALGAE will be inflated using a sizing gauge so
that the diameter measures between 16 in. (~406 mm) and 16.5 in. (~419 mm). The
ALGAE and the jig will both be placed on a flat surface, and the ALGAE will be
inflated with the valve sticking up vertically so that the seam is
perpendicular to the large hole in the jig. It will be inflated until the two
opposite points along the seam are contacting the top edge of the hole in the
jig, which is 16.25 in. (~413 mm) diameter.
The tolerances to which ALGAE are manufactured allow for variances
in diameter, wall thickness, weight distribution and overall weight. They may
not always be uniformly spherical, roll straight, or bounce as expected.

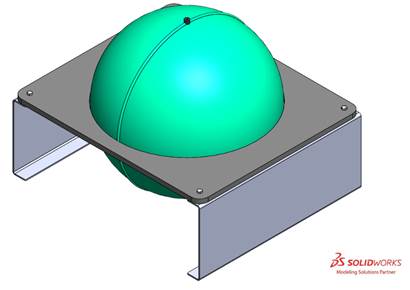

Figure 5‑21 ALGAE Inflation Jig
AprilTags are 8⅛ in. (~21 cm) square targets located above CAGES,
PROCESSORS, CORAL STATIONS and on REEFS. There are 22 unique markers on the
FIELD, positioned as shown in Figure 5‑22.
Figure 5‑22 AprilTag locations
All markers are from the 36h11 tag family, IDs 1-22. All
AprilTags are mounted to and centered on a 10½ in. (~27 cm) square
polycarbonate panel. Each marker has an identifying text label. If AprilTags
experience wear and marking during MATCHES, they are repaired with gaffers
tape.
Figure 5‑23 AprilTag sizing
CORAL STATION AprilTags (IDs
1, 2, 12, and 13) are mounted to the CORAL STATION. The bottom of each tag’s
panel is 4 ft. 5¼ in. (~135 cm) above the carpet and centered on the CORAL
STATION.
Figure 5‑24: CORAL STATION AprilTags
PROCESSOR AprilTag panels (IDs 3 and 16) are 3 ft. 9⅞ in. (~117
cm) above the carpet and centered horizontally above the opening in the PROCESSOR
WALL.
Figure 5‑25: PROCESSOR AprilTags
REEF AprilTag plates (IDs 6-11 and 17-22) are 6⅞ in. (~17 cm)
above the carpet and centered horizontally on each of the faces REEF.
Figure 5‑26: REEF AprilTags
BARGE AprilTag plates (IDs 4, 5, 14, 15) are 5 ft. 9 in.
(~178 cm) above the carpet, approximately centered above the middle CAGE, and
angled 30° from vertical.
Figure 5‑27: BARGE AprilTags
For further marker locating information please refer to the 2025 ARENA Layout and Marking Diagram. Printable
versions of the markers are available on the 2025 Playing FIELD webpage.
The FIELD Management System (FMS) is
all the electronics responsible for sensing and controlling the FIRST Robotics
Competition FIELD. The FMS encompasses all FIELD electronics, including
computers, REFEREE touchscreens, the wireless access point, sensors,
stack lights, A-Stops and E-Stops, etc.
When a DRIVE TEAM connects the Ethernet cable from their
assigned DRIVER STATION to their OPERATOR CONSOLE, the Driver Station Software
on the OPERATOR CONSOLE computer communicates with FMS. Once connected, the
open ports available are described in Table 8‑5.
Note that ROBOT code cannot be deployed while connected to
the FMS. Additional information about the FMS may be found in the FMS Whitepaper.
The FMS alerts participants to milestones in the MATCH using
audio cues detailed in Table 5‑1. Please note that audio cues are intended
as a courtesy to participants and not intended as official MATCH markers. If
there is a discrepancy between an audio cue and the FIELD timers, the FIELD
timers are the authority.
Table 5‑1 Audio cues
|
Event
|
Timer
Value
|
Audio
Cue
|
|
MATCH start
|
0:15 (for AUTO)
|
“Cavalry Charge”
|
|
AUTO ends
|
0:00 (for AUTO)
|
“Buzzer”
|
|
TELEOP begins
|
2:15
|
“3 Bells”
|
|
Final 20 seconds
|
0:20
|
“Submarine Sonar Ping”
|
|
MATCH end
|
0:00
|
“Buzzer”
|
|
MATCH stopped
|
n/a
|
“Foghorn”
|
FIELD STAFF are responsible for making
sure the MATCHES are cycled through efficiently, fairly, safely, and with a
spirit of cooperation, Gracious Professionalism, and generosity of spirit. FIELD
STAFF roles are filled by volunteers from the community who prepare for the
event with thorough training and certification. There are 3 FIELD-side key
volunteer roles with whom teams should be familiar and are encouraged to use as
resources to make their event experience valuable (in whatever way the team
defines “valuable”).
-
Head REFEREE – trains, directs, and supervises REFEREES. They
oversee all scoring processes and procedures in collaboration with the FIRST
Technical Advisor (FTA). They interact with STUDENTS, volunteers, and
contracted/FIRST staff. The Head REFEREE is positioned between the FIELD
and the scoring table and wears a yellow shirt. The Head REFEREE has final
authority for decisions regarding MATCH scores, penalties, and YELLOW and RED
CARD assignments. For additional details, please refer to the Head REFEREE role description.
-
FIRST Technical Advisor (FTA) - ensures events run
smoothly, safely, and in accordance with FIRST requirements. The FTA
collaborates with FIRST staff, event staff, and other event volunteers
in many different areas at events. The FTA is the liaison between FIRST
HQ and the event for all things related to the FIELD, ROBOTS, and game, acts as
a team advocate for all teams competing at the event and is a major point of
escalation and conflict resolution for the event. For additional details,
please refer to the FTA role description.
-
FIELD Supervisor - directs activity on the FIELD to ensure
efficient execution of the MATCHES, pacing of the event, and smooth flow of MATCH
play. FIELD Supervisors are responsible for ensuring the FIELD is intact and lead
FIELD Reset teams, who are responsible for resetting the FIELD after each MATCH
in preparation for the subsequent MATCH. For additional details, please refer
to the FIELD Supervisor role description.
Figure 6‑1 REEFSCAPE
In REEFSCAPE, 2 ALLIANCES (an ALLIANCE is a
cooperative of up to 4 FIRST Robotics Competition teams) play MATCHES,
set up and implemented per the details described below.
6.1
MATCH Overview
MATCHES run on 7–10-minute cycles, which consist of pre-MATCH
setup, the 2-minute and 30-second MATCH, and the post-MATCH
reset.
During the MATCH, ROBOTS collect CORAL and score on their REEF.
ROBOTS also collect ALGAE and score in their PROCESSOR or NET. HUMAN PLAYERS can
score ALGAE in their NET once it has been passed to them via their opponent’s
PROCESSOR.
ROBOTS conclude the MATCH PARKING in their BARGE ZONE or
suspending from a CAGE.
6.2
DRIVE TEAM
A DRIVE TEAM is a set of up to 5 people
from the same FIRST Robotics Competition team responsible for team
performance for a specific MATCH. There are 4 specific roles on a DRIVE
TEAM which ALLIANCES can use to assist ROBOTS with REEFSCAPE, and no more than
1 member of the DRIVE TEAM may be a non-STUDENT.
The intent of the definition of DRIVE TEAM and DRIVE TEAM
related rules is that, barring extenuating circumstances, the DRIVE TEAM
consists of people who arrived at the event affiliated with that team and are
responsible for their team’s and ROBOT’S performance at the event (this means a
person may be affiliated with more than 1 team). The intent is not to allow
teams to “adopt” members of other teams for strategic advantage for the loaning
team, borrowing team, and/or their ALLIANCE (e.g. an ALLIANCE CAPTAIN believes
1 of their DRIVERS has more experience than a DRIVER on their first pick, and
the teams agree the first pick team will “adopt” that DRIVER and make them a
member of their DRIVE TEAM for Playoffs).
The definition isn’t stricter for 2 main reasons. First, to
avoid additional bureaucratic burden on teams and event volunteers (e.g.
requiring that teams submit official rosters that Queuing must check before
allowing a DRIVE TEAM into the ARENA). Second, to provide space for exceptional
circumstances that give teams the opportunity to display Gracious
Professionalism (e.g. a bus is delayed, a COACH has no DRIVERS, and their
pit neighbors agree to help by loaning DRIVERS as temporary members of the team
until their bus arrives).
Table 6‑1 DRIVE TEAM roles
A STUDENT is a person who has not completed
high-school, secondary school, or the comparable level as of September 1 prior
to Kickoff.
The TECHNICIAN provides teams with a technical resource for
pre-MATCH setup, ROBOT connectivity, OPERATOR CONSOLE troubleshooting, and
post-MATCH removal of the ROBOT. Some pre-MATCH responsibilities for the
TECHNICIAN may include, but are not limited to:
-
location of the ROBOT radio, its power connection, and
understanding of its indicator lights
-
location of the roboRIO and understanding of its indicator lights
-
username and password for the OPERATOR CONSOLE
-
restarting the Driver Station and Dashboard software on the
OPERATOR CONSOLE
-
changing the bandwidth utilization (e.g. camera resolution, frame
rate, etc.)
-
changing a battery
-
charging pneumatics
While the TECHNICIAN may be the primary technical member of
the DRIVE TEAM, all members of the DRIVE TEAM are encouraged to have knowledge
of the basic functionality of the ROBOT, such as the location and operation of
the main circuit breaker, connecting and resetting joysticks or gamepads from
the OPERATOR CONSOLE, and removing the ROBOT from the FIELD.
Per Table 6‑1, each team is allotted up to 3 STUDENTS
who may be assigned as DRIVERS or HUMAN PLAYERS. If multiple teams on an
ALLIANCE do not have 3 STUDENTS at the event to act in these roles, 1 of the
ALLIANCE’S teams may substitute a STUDENT TECHNICIAN as a HUMAN PLAYER for that
MATCH only. In this case,
-
the Head REFEREE must be notified,
-
all HUMAN PLAYER rules now apply to this DRIVE TEAM member, and
-
this DRIVE TEAM member is no longer considered a TECHNICIAN for
that MATCH.
Before each MATCH begins, FIELD STAFF stage SCORING ELEMENTS
as described in section 6.3.4 SCORING ELEMENTS. DRIVE TEAMS stage their ROBOTS (as
described in section 6.3.3 ROBOTS) and OPERATOR CONSOLES (as described in section
6.3.2 OPERATOR CONSOLES). Then, DRIVE TEAMS take their
places as described in section 6.3.1 DRIVE TEAMS.
6.3.1 DRIVE
TEAMS
DRIVE
TEAMS prepare for a MATCH by staging in the appropriate areas, according to
their role on the DRIVE TEAM, and by identifying themselves accordingly. DRIVE
TEAM starting conditions are listed below, and a DRIVE TEAM obstructing or
delaying any of the conditions is at risk of violating G301.
A. only
DRIVE TEAM members assigned to the upcoming MATCH are present,
B. For
QUALIFICATION and PLAYOFF MATCHES only DRIVE TEAM members whose ROBOTS have
passed initial, complete Inspection are present,
C.
1 HUMAN PLAYER must be staged in their PROCESSOR AREA,
D.
any number of HUMAN PLAYERS are staged in their CORAL STATION AREAS,
E. HUMAN
PLAYERS not included in C or D, DRIVERS, and COACHES are in their ALLIANCE AREA
and behind the HUMAN STARTING LINE,
F. TECHNICIANS
are in the event-designated area near the FIELD,
G. DRIVE TEAM
members clearly display their designated buttons above their waists (COACH -
“Coach”, DRIVERS and HUMAN PLAYERS - “Drive Team”, and TECHNICIAN -
“Technician”), and
H. if a
Playoff MATCH, the ALLIANCE CAPTAIN clearly displays their designated ALLIANCE
CAPTAIN identifier (e.g. hat or armband).
6.3.2 OPERATOR
CONSOLES
DRIVE TEAMS
set up their OPERATOR CONSOLE as soon as the DRIVE TEAM from the previous MATCH
has cleared the area. OPERATOR CONSOLES must be compliant with all relevant
rules, specifically those in section 8.9 OPERATOR CONSOLE. The OPERATOR CONSOLE is plugged
into the team’s assigned DRIVER STATION, as indicated on the team sign. Any control
devices worn or held by their HUMAN PLAYERS and/or DRIVERS during the MATCH must
be disconnected from or set on or beside the OPERATOR CONSOLE before the MATCH
can begin. A DRIVE TEAM obstructing or delaying OPERATOR CONSOLE setup is at
risk of violating G301.
For the purposes of FIRST Robotics Competition, any
device connected to the OPERATOR CONSOLE is considered a control device because
REFEREES are not expected to differentiate between devices that can or cannot
control the ROBOT.
6.3.3
ROBOTS
DRIVE TEAMS stage their ROBOT in accordance with G303. A DRIVE TEAM obstructing or delaying ROBOT
setup requirements is at risk of violating G301.
If order of placement matters to either or both ALLIANCES,
the ALLIANCE notifies the Head REFEREE during setup for that MATCH, and the
Head REFEREE instructs ALLIANCES to alternate placement of ROBOTS. In a
Qualification MATCH, REFEREE instructions are that ROBOTS are placed in the
following order:
1. red
DRIVER STATION 1 ROBOT
2. blue
DRIVER STATION 1 ROBOT
3. red
DRIVER STATION 2 ROBOT
4. blue
DRIVER STATION 2 ROBOT
5. red
DRIVER STATION 3 ROBOT
6. blue
DRIVER STATION 3 ROBOT
In an intra-Division Playoff MATCH,
the same pattern is applied, but instead of blue ALLIANCE placing last, the
higher seeded ALLIANCE (regardless of color) places last. For inter-Division
Playoff MATCHES, the ALLIANCE that places last is determined by a (real or
virtual) coin flip facilitated by the Head REFEREE where a “heads” result
invites the red ALLIANCE to place last.
FIELD STAFF may ask teams to indicate their intended location
and are not required to wait for a team to stage their ROBOT in its exact location
before moving to the next team.
6.3.4
SCORING ELEMENTS
Before each MATCH
begins, FIELD STAFF stage SCORING ELEMENTS.
Figure 6‑2 CORAL MARK locations and SCORING ELEMENT staging positions
6.3.4.1
CORAL
126 CORAL are staged for each MATCH as follows (reference Figure 6‑2):
A. 1
CORAL is staged on each CORAL MARK (6 total, CORAL are staged such that each
CORAL covers the opposite ends of each CORAL MARK),
B. 1
CORAL may be preloaded in each ROBOT by the ROBOT’S DRIVE TEAM, such that the CORAL
is fully supported by the ROBOT (up to 6 total, a CORAL not pre-loaded in a
ROBOT is staged with CORAL in the corresponding ALLIANCE AREA), and
C. remaining
CORAL are split evenly behind each CORAL STATION (57 to 60 per ALLIANCE,
depending on how many are preloaded in ROBOTS).
6.3.4.2
ALGAE
18 ALGAE are staged for each MATCH as follows (reference Figure 6‑2):
A.
6 ALGAE are staged on pairs of BRANCHES as shown in Figure 6‑3 (12 total) such that they are placed
lightly onto the REEF, and
B.
1 ALGAE is placed on top of each CORAL staged on a CORAL MARK (6 total).
Staged ALGAE will not contact CORAL placed on L4.
Figure 6‑3 Staging positions for ALGAE on a REEF
Each team can choose the height of the CAGE closest to their
driver station. By default, all CAGES are left in the state from the last
match. At the start of each day, all CAGES are set as deep CAGES. If a team
would like to alter the CAGE height they must alert the FIELD STAFF during
reset. Each team informs FIELD STAFF of their preference for their
corresponding CAGE height.
Figure 6‑4 CAGE positions corresponding to DRIVER STATIONS
The first phase of each MATCH is 15 seconds long and called
the Autonomous Period (AUTO). During AUTO, ROBOTS operate without any DRIVE
TEAM control or input. ROBOTS attempt to leave their ROBOT STARTING LINE, score
SCORING ELEMENTS, and retrieve SCORING ELEMENTS. There is a 3-second delay
between AUTO and TELEOP for scoring purposes as described in section 6.5 Scoring.
The second phase of each MATCH is the remaining 2 minutes
and 15 seconds (2:15) and called the Teleoperated Period
(TELEOP). During TELEOP, DRIVERS remotely operate ROBOTS to retrieve and score SCORING
ELEMENTS and climb their CAGES.
6.5
Scoring
ALLIANCES are rewarded for accomplishing various actions
throughout a MATCH, including LEAVING their ROBOT STARTING LINE, scoring CORAL
on their REEF, scoring ALGAE in their PROCESSOR and NET, climbing CAGES, and
winning or tying MATCHES.
Rewards are granted either via MATCH points, Coopertition
points, or Ranking Points (often abbreviated to RP, which
increase the measure used to rank teams in the Qualification Tournament).
All scores are assessed and updated throughout the MATCH,
except as follows:
A. assessment
of CORAL scored on the REEF and ALGAE scored in the PROCESSOR or NET continues
for up to 3 seconds after the ARENA timer displays 0:00 following AUTO.
B. assessment
of CORAL scored on the REEF and ALGAE scored in the PROCESSOR or NET continues
for up to 3 seconds after the ARENA timer displays 0:00 following TELEOP.
C. assessment
of CAGE points is made 3 seconds after the ARENA timer displays 0:00 following
TELEOP, or when all ROBOTS have come to rest following the conclusion of the MATCH,
whichever happens first.
LEAVING the ROBOT STARTING LINE, CORAL scoring, ALGAE
scoring in the NET, PARKING and CAGE points are all evaluated and scored by
human volunteers. Teams are encouraged to make sure that it is obvious and
unambiguous that the criteria are met.
A CORAL is scored in the trough (L1) of the REEF if it is not
in contact with a ROBOT on that ALLIANCE, not scored on any other level of the
REEF, and
A. contacting
the trough, or
B. directly
supported (either fully or partially) by a CORAL in contact with the trough.
Figure 6‑5 Examples of CORAL scored
in the trough (L1)
Figure 6‑5 includes
examples of CORAL on the REEF at the conclusion of a MATCH.
A. CORAL A, C, F, and H are scored because they meet criteria A.
B. CORAL B and G are scored because they meet criteria B.
C. CORAL D and E do not meet any criteria for trough scoring.
A
CORAL is scored on L2-L4 BRANCH if the BRANCH is inside the volume of the CORAL
and the CORAL is not in contact with a ROBOT on that ALLIANCE or an ALGAE. Only
1 CORAL can be scored per BRANCH.
An ALGAE is scored in a PROCESSOR once it has passed through
the opening of the PROCESSOR and by the sensor array. An ALGAE is scored in a NET
if it is above the NET and within the perimeter of the NET, contacting the NET
or ALGAE contacting the NET, and not in contact with a ROBOT on that ALLIANCE.
If a CORAL scored in AUTO gets removed from a BRANCH during
TELEOP, the AUTO points are removed but the CORAL will still count towards the
AUTO RP. If a CORAL is scored in that location again, the AUTO points
associated with the original scored CORAL is restored. CORAL scored in the
trough is not tracked by specific location, if a CORAL is removed from the
trough after AUTO, the points removed will correspond to the lowest scoring
CORAL (i.e. TELEOP CORAL removed first); if CORAL is re-scored in the trough,
points will be re-added in the reverse order (i.e. AUTO CORAL re-added first).
To qualify for LEAVE points, a ROBOT must move
such that its BUMPERS no longer overlap its ROBOT STARTING LINE at the end of AUTO.
To qualify for PARK points, a ROBOT’S BUMPERS must
be partially or completely contained in their BARGE ZONE at the end of the
MATCH and does not meet the criteria for CAGE points.
To qualify for CAGE points, a ROBOT must be contacting one
and only one of their ALLIANCE’S CAGES (and not touching any ANCHOR), not contacting
the carpet, and may additionally contact only the following elements:
A. SCORING
ELEMENTS,
B. another
ROBOT qualified for CAGE points,
C. a
partner ROBOT contacted by an opponent in violation of G428, and
D.
an opponent ROBOT.
6.5.3 Coopertition
Bonus
In Qualification MATCHES, if at least 2 ALGAE are scored in
each ALLIANCE’S PROCESSOR, all teams earn 1 Coopertition Point, and the
threshold for the CORAL RP decreases as described in Table 6‑2.
See section 10.5.3 Qualification Ranking for more information about Coopertition
influence on Qualification Ranking order.
Point values for tasks in REEFSCAPE are detailed in Table 6‑2.
Table 6‑2 REEFSCAPE point values
|
|
|
MATCH points
|
Ranking Points
|
Coopertition Points
|
|
AUTO
|
TELEOP
|
|
LEAVE
|
3
|
|
|
|
CORAL
|
CORAL scored in trough (L1)
|
3
|
2
|
|
CORAL scored on L2 BRANCH
|
4
|
3
|
|
CORAL scored on L3 BRANCH
|
6
|
4
|
|
CORAL scored on L4 BRANCH
|
7
|
5
|
|
ALGAE
|
scored in PROCESSOR
|
6
|
6
|
|
scored in NET
|
4
|
4
|
|
BARGE
|
PARK in the BARGE ZONE
|
|
2
|
|
off-the-ground via shallow CAGE
|
6
|
|
off-the-ground via deep CAGE
|
12
|
|
Coopertition Bonus – at least 2 ALGAE
scored in each PROCESSOR
|
|
1
|
|
AUTO RP - all non-BYPASSED ROBOTS LEAVE and at
least 1 CORAL scored in AUTO
|
1
|
|
|
*CORAL RP - If at least 7 CORAL scored on each
level.
If Coopertition achieved, at least 7 CORAL must
be scored on each of 3 levels.
|
1
|
|
|
*BARGE RP - at least 16 BARGE points are scored
|
1
|
|
|
Win
|
completing a MATCH with more MATCH points than your
opponent
|
3
|
|
|
Tie
|
completing a MATCH with the same number of MATCH
points as your opponent
|
1
|
|
|
*For District Championship and/or FIRST
Championship events, the CORAL or BARGE RP requirement may increase.
|
6.6
Violations
Unless otherwise noted, all violations are assigned for each
instance of a rule violation. A description of the penalties are listed in Table 6‑3. All rules throughout the Game Rules
section are called as perceived by a REFEREE.
Table 6‑3 Rule violations
6.6.1 YELLOW
and RED CARDS
In addition to rule violations explicitly listed throughout this
document, YELLOW CARDS and RED CARDS are used in FIRST Robotics
Competition to address team and ROBOT behavior that does not align with the
mission, values, and culture of FIRST.
The Head REFEREE may assign a YELLOW CARD as a warning, or a
RED CARD for egregious behavior inappropriate at a FIRST Robotics
Competition event.
A YELLOW or RED CARD is indicated by the Head REFEREE
holding a YELLOW and/or RED CARD in the air while the Game Announcer describes
the violation.
YELLOW CARDS are additive, meaning that a second YELLOW CARD
is automatically converted to a RED CARD. A team is issued a RED CARD for any
subsequent incident in which they receive an additional YELLOW CARD, including
earning a second YELLOW CARD during a single MATCH. A second YELLOW CARD is
indicated by the Head REFEREE holding a YELLOW CARD and RED CARD in the air
simultaneously after the completion of the MATCH. A team that has received
either a YELLOW CARD or a RED CARD carries a YELLOW CARD into subsequent
MATCHES, except as noted below.
Once a team receives a YELLOW or RED CARD, a yellow
rectangle will show next to the team number on the audience display during
subsequent MATCHES, including any replays.
Figure 6‑6 Example audience screen graphic showing YELLOW CARD
indicators
All YELLOW CARDS are cleared in FMS at the conclusion of
Practice, Qualification, and division Playoff MATCHES. VERBAL WARNINGS issued
by the head REFEREE are cleared after Practice MATCHES and persist from
Qualification MATCHES through subsequent tournament phases.
YELLOW and RED CARDS are applied based on the following:
Table 6‑4 YELLOW and RED CARD application
|
Time YELLOW or RED CARDS earned:
|
MATCH
to which CARD is applied:
|
|
Prior to Qualification
MATCHES
|
REFEREES may or may not be
present during Practice MATCHES. With input from event staff, The Head
REFEREE may opt to perpetuate a VERBAL WARNING or YELLOW CARD earned prior to
Qualification MATCHES to the first Qualification MATCH for particularly
egregious behavior.
|
|
during the Qualification
MATCHES
|
team’s current (or
just-completed) MATCH. In the case where the team participated as a SURROGATE
in the current (or just completed) MATCH, the card is applied to the team’s
previous MATCH (i.e. the team’s second Qualification MATCH)
|
|
between the end of
Qualification MATCHES and the start of Playoff MATCHES
|
ALLIANCE’S first Playoff MATCH
|
|
during the Playoff MATCHES
|
ALLIANCE’S current (or
just-completed) MATCH
|
Please see examples of the application of YELLOW and RED
CARDS as shown in section 6.6.4 Violation Details.
During Playoff MATCHES, YELLOW and RED CARDS are assigned to
the violating team’s entire ALLIANCE instead of to only the violating team. If
an ALLIANCE receives 2 YELLOW CARDS, the entire ALLIANCE is issued a RED CARD
which results in DISQUALIFICATION for the associated MATCH. If both ALLIANCES
receive a RED CARD, the ALLIANCE assessed the first RED CARD, chronologically,
is DISQUALIFIED and loses the MATCH.
6.6.4 Violation
Details
There are several styles of violation wording used in this
manual. Below are some example violations and a clarification of the way the
violation would be assessed. The examples shown do not represent all possible
violations, but rather a representative set of combinations.
Table 6‑5 Violation examples
|
Example
Violation
|
Expanded
Interpretation
|
|
MINOR
FOUL
|
Upon violation, a MINOR FOUL
is assessed against the violating ALLIANCE.
|
|
MAJOR
FOUL and YELLOW CARD
|
Upon violation, a MAJOR FOUL is
assessed against the violating ALLIANCE. After the MATCH, the Head REFEREE
presents the violating team with a YELLOW CARD.
|
|
MINOR
FOUL per additional SCORING ELEMENT. If egregious, YELLOW CARD
|
Upon violation, a number of MINOR
FOULS are assessed against the violating ALLIANCE equal to the number of
additional SCORING ELEMENTS beyond the permitted quantity. Additionally, if
the REFEREES determine that the action was egregious, the Head REFEREE presents
the violating team with a YELLOW CARD after the MATCH.
|
|
MINOR
FOUL. MAJOR FOUL IF REPEATED
|
Upon initial violation in a
MATCH, a MINOR FOUL is assessed against the violating ALLIANCE. If the
ALLIANCE ROBOT repeats the infraction in the MATCH, a MAJOR FOUL is assessed
against the violating ALLIANCE. Assuming no additional infractions of that
rule by that ROBOT in that MATCH, the ROBOT has “earned” a MINOR FOUL and a MAJOR
FOUL for their ALLIANCE.
|
|
MAJOR
FOUL, and for every 3 seconds in which the situation is not corrected, a MAJOR
FOUL is assessed
|
Upon violation, a MAJOR FOUL
is assessed against the violating ALLIANCE and the REFEREE begins to count.
Their count continues until the criteria to discontinue the count are met,
and for each 3 seconds within that time, an additional MAJOR FOUL is assessed
against the violating ALLIANCE. A ROBOT in violation of this type of rule for
15 seconds receives a total of 6 MAJOR FOULS (assuming no other rules were
being simultaneously violated).
|
|
RED
CARD for the ALLIANCE
|
After the MATCH, the Head REFEREE
presents the violating ALLIANCE with a RED CARD in the following fashion:
·
In a PLAYOFF MATCH, a single RED CARD is assessed to the ALLIANCE.
·
In all other scenarios, each team on the ALLIANCE is issued a RED
CARD.
|
6.7
Head REFEREE and FTA Interaction
The Head REFEREE has the ultimate authority in the ARENA
during the event, but may receive input from additional sources, e.g. Game
Designers, FIRST personnel, FTA, and other event staff. The Head REFEREE
rulings are final. No event staff, including the Head REFEREE, will review
video, photos, artistic renderings, etc. of any MATCH, from any source, under
any circumstances.
6.7.1 Question
Box (Q)
Each ALLIANCE has a designated Question Box near the scoring
table. If a DRIVE TEAM has a question about a MATCH, the FIELD, etc., they may
send 1 DRIVE TEAM member to their corresponding Question Box. Depending on
timing, the Head REFEREE or FTA may postpone any requested discussion until the
end of the subsequent MATCH.
Technical questions regarding FIELD or ROBOT operation are
addressed by the FTA, and additional team members are invited to participate in
these conversations if necessary. If a DRIVE TEAM needs clarification on a
ruling or score, per Q101, 1 STUDENT from that DRIVE TEAM should address
the Head REFEREE after the ARENA Reset Signal (e.g. FIELD lights turn green).
While FMS tracks quantities of MINOR and MAJOR FOULS, FIRST
instructs REFEREES to not self-track details about MINOR FOULS and MAJOR FOULS;
as a result, REFEREES are not expected to recall details about what MINOR FOULS
and MAJOR FOULS were made, when they occurred, and against whom.
Any reasonable question is fair game in the Question Box,
and Head REFEREES will make good faith efforts to provide helpful feedback
(e.g. how/why certain MINOR FOULS are being called, why a particular ROBOT may
be susceptible to certain MINOR FOULS based on its design or game play, how
specific rules are being called or interpreted), but please know that they may
not be able to supply specific details.
Q101 *1 STUDENT, 1 Head REFEREE. A team may only
address the Head REFEREE with 1 STUDENT. The STUDENT may not be accompanied by
more than 1 silent observer.
Violation: The Head REFEREE will not address additional,
non-compliant team members or peripheral conversations.
Some events may restrict ARENA access to members of the
DRIVE TEAM. Team members are permitted to swap buttons within their team as
needed to access the Question Box.
Laws regarding recording of conversations vary
state-to-state and country-to country, and, in some cases, recording without
consent may be criminal. Introducing the idea of recording a conversation with
an implied reason of proving someone’s error can escalate a discussion and is
likely to increase its adversarial nature. Sometimes it’s appropriate; often
it’s neither appropriate nor constructive.
Please do not record FIRST event staff, or anyone at
an event, without the person’s consent and please do not challenge the decision
to decline consent to be recorded. FIRST event staff are empowered to excuse
themselves from an interaction in which they are being recorded after declining
consent.
6.8
Other Logistics
SCORING ELEMENTS that leave the FIELD, other than via the PROCESSOR,
are placed back into the FIELD approximately at the point of exit by FIELD
STAFF (REFEREES, FTAs, or other staff working around the FIELD) at the earliest
safe opportunity. ALGAE that leaves the PROCESSOR AREA may be returned to the
PROCESSOR AREA or the FIELD.
Note that, except for ALGAE via the PROCESSOR, ROBOTS may
not deliberately cause SCORING ELEMENTS to leave the FIELD (see G407).
An ARENA FAULT (an error in ARENA operation described in section
10.2 MATCH Replays) is not called for MATCHES that
accidentally begin with damaged SCORING ELEMENTS. Damaged SCORING ELEMENTS are
not replaced until the next ARENA reset period. DRIVE TEAMS should alert the
FIELD STAFF to any missing or damaged SCORING ELEMENTS prior to the start of
the MATCH.
Once the MATCH is over and the Head REFEREE determines that
the FIELD is safe for FIELD STAFF and DRIVE TEAMS, they or their designee
change the FIELD lights to green and DRIVE TEAMS may retrieve their ROBOT. Some
MATCHES may include a short period afterward for the REFEREES and official
scorers to confirm SCORING ELEMENT counts prior to finalizing the score. This
period is indicated with purple lights on the team signs and the word “count”
displayed. TEAMS are not allowed on the field during this time.
During ARENA reset, the ARENA is cleared of ROBOTS and
OPERATOR CONSOLES from the MATCH that just ended, ROBOTS and OPERATOR CONSOLES
for the subsequent MATCH are loaded into the ARENA by DRIVE TEAMS, and FIELD
STAFF reset ARENA elements.
FIRST Robotics Competition uses 3 words in the
context of how durations and actions are assessed with regards to evaluation of
rules and assignment of violations. These words provide general guidance to
describe benchmarks to be used across the program. It is not the intent for
REFEREES to provide a count during the time periods.
-
MOMENTARY describes durations that are fewer
than approximately 3 seconds.
-
CONTINUOUS describes durations that are more
than approximately 10 seconds.
-
REPEATED describes actions that happen more than
once within a MATCH.
G101 *Humans, stay off the FIELD until green. A team
member may only enter the FIELD if FIELD lighting (FIELD facing side of the team
signs and timers) is green, unless explicitly instructed by a REFEREE or an
FTA.
Violation: VERBAL WARNING. YELLOW CARD if subsequent
violations during the event.
Violations of this rule apply to the entire team, not
specifically to any 1 individual. For example, a member of Team 9999 enters the
FIELD prior to lights going green after MATCH 3, and a different member enters
the FIELD prior to lights going green after MATCH 25. The team receives a VERBAL
WARNING for the first violation and a YELLOW CARD for the second.
G102 *Never step over the guardrail. A team member
may only enter or exit the FIELD through open gates.
Violation: VERBAL WARNING. YELLOW CARD if subsequent
violations during the event.
Teams are encouraged to ensure that all members of their
DRIVE TEAM are aware of this rule. It’s easy to violate, particularly when
teams are doing their best to move on and off the FIELD quickly. The violations
of this rule are intended to avoid nuisance penalties, but still enforce safety
requirements around the FIELD. There is the potential for injury when stepping
over the guardrail.
Violations of this rule apply to the entire team, not
specifically to any 1 individual. For example, a member of Team 9999 steps over
the guardrail prior to MATCH 3, and a different member steps over the guardrail
prior to MATCH 25. The team receives a VERBAL WARNING for the first violation
and a YELLOW CARD for the second.
G103 *Be careful what you interact with. A team
member is prohibited from the following actions with regards to interaction
with ARENA elements.
A.
climbing on or inside,
B.
hanging from,
C.
manipulating such that it doesn’t return to its original shape without
human intervention, and
D.
damaging.
Violation: VERBAL WARNING. YELLOW CARD if
subsequent violations during the event.
G104
*Teams may not enable their ROBOTS on
the FIELD. Teams may not tether to the ROBOT while on the FIELD except
in special circumstances (e.g. after Opening Ceremonies, before an immediate MATCH
replay, etc.) and with the express permission from the FTA or a REFEREE.
Violation: VERBAL WARNING. YELLOW CARD if subsequent
violations during the event.
Teams are encouraged to consider this rule when developing
their ROBOTS.
FMS will not enable ROBOTS after the conclusion of the MATCH.
For the purposes of this rule, tethering includes any wired
or wireless connection used to electrically energize and/or control elements on
the ROBOT. The safety of teams and volunteers in close proximity to ROBOTS and ARENA
elements on the FIELD is of the utmost importance, therefore ROBOTS or ROBOT
COMPONENTS may not be enabled in any way on the FIELD before or after the MATCH.
ROBOTS need to be safely transported off the FIELD and back
to the pits after the MATCH, and there may be bystanders, doorways, or height
restrictions along the route.
G201 *Be a good person. All teams must be civil
toward everyone and respectful of team and event equipment while at a FIRST
Robotics Competition event.
Violation: VERBAL WARNING. YELLOW CARD if subsequent
violations during the event.
Examples of inappropriate behavior include, but are not
limited to, the use of offensive language or other uncivil conduct.
Examples of particularly contemptible behavior that is
likely to result in ARENA ejection include, but are not limited to, the
following:
A. assault, e.g. throwing something that hits another person
(even if unintended),
B. threat, e.g. saying something like “if you don’t reverse
that call, I’ll make you regret it,”
C. harassment, e.g. badgering someone with no new information
after a decision’s been made or a question’s been answered,
D. bullying, e.g. using body or verbal language to cause
another person to feel inadequate,
E. insulting, e.g. telling someone they don’t deserve to be on
a DRIVE TEAM,
F. swearing at another person (versus swearing under one’s
breath or at oneself), and
G. yelling at another person(s) in anger or frustration.
G202
*Don’t bang on the glass. A team
member may never strike or hit the DRIVER STATION plastic windows.
Violation: VERBAL WARNING. YELLOW CARD if subsequent
violations during the event.
G203
*Asking other teams to throw a MATCH
– not cool. A team may not encourage an ALLIANCE of which it is not a
member to play beneath its ability.
Note: This rule is not intended to prevent an
ALLIANCE from planning and/or executing its own strategy in a specific MATCH in
which all the teams are members of the ALLIANCE.
Violation: VERBAL WARNING. RED CARD if subsequent violations
during the event.
Example 1: A MATCH is being played by Teams A, B, and C, in
which Team C is encouraged by Team D to not get on a CAGE at the end of the MATCH,
resulting in Teams A, B, and C not earning a Ranking Point. Team D’s motivation
for this behavior is to prevent Team A from rising in the Tournament rankings
and negatively affecting Team D’s ranking. Team D has violated this rule.
Example 2: A MATCH is being played by Teams A, B, and C, in
which Team A is assigned to participate as a SURROGATE. Team D encourages Team
A to not participate in the MATCH so that Team D gains ranking position over
Teams B and C. Team D has violated this rule.
Example 3: Asking a team to “no show” for a MATCH.
FIRST considers the
action of a team influencing another team to throw a MATCH, to deliberately
miss Ranking Points, etc. incompatible with FIRST values and not a
strategy any team should employ.
G204
*Letting someone coerce you into
throwing a MATCH – also not cool. A team, as the result of encouragement
by a team not on their ALLIANCE, may not play beneath its ability.
Note: This rule is not intended to prevent an
ALLIANCE from planning and/or executing its own strategy in a specific MATCH in
which all the ALLIANCE members are participants.
Violation: VERBAL WARNING. RED CARD if subsequent violations
during the event.
Example 1: A
MATCH is being played by Teams A, B, and C. Team D requests Team C ignore the
CAGES at the end of the MATCH, resulting in Teams A, B, and C not being able to
earn the BARGE RP. Team C accepts this request from Team D. Team D’s motivation
for this behavior is to prevent Team A from rising in the Tournament rankings
negatively affecting Team D’s ranking. Team C has violated this rule.
Example 2: A MATCH is being played by Teams A, B, and C, in
which Team A is assigned to participate as a SURROGATE. Team A accepts Team D’s
request not to participate in the MATCH so that Team D gains ranking position
over Teams B and C. Team A has violated this rule.
FIRST considers the
action of a team influencing another team to throw a MATCH, to deliberately
miss Ranking Points, etc. incompatible with FIRST values and not a
strategy any team should employ.
G205
*Throwing your own MATCH is bad.
A team may not intentionally lose a MATCH or sacrifice Ranking Points in an
effort to lower their own ranking or manipulate the rankings of other teams.
Violation: VERBAL WARNING. RED CARD if subsequent violations
during the event.
The intent of this rule is not to punish teams who are
employing alternate strategies, but rather to ensure that it is clear
that throwing MATCHES to negatively affect your own rankings, or to manipulate
the rankings of other teams (i.e. throw a MATCH to lower a partner's ranking,
and/or increase the ranking of another team not in the MATCH) is incompatible
with FIRST values and not a strategy any team should employ.
G206
*Don't violate rules for RPs.
A team or ALLIANCE may not collude with another team to each purposefully
violate a rule in an attempt to influence Ranking Points.
Violation: YELLOW CARD and the ALLIANCE is ineligible for CORAL
and BARGE RPs.
For example, if Team A on the blue ALLIANCE agrees with
Team F on the red ALLIANCE to contact each other's CAGES in TELEOP resulting in
both ALLIANCES being awarded the BARGE RP.
G207
*Don’t abuse ARENA access. A team
member (except DRIVERS, HUMAN PLAYERS, and COACHES) granted access to
restricted areas in and around the ARENA (e.g. via TECHNICIAN button, event
issued Media badges, etc.) may not assist or use signaling devices during the
MATCH. Exceptions will be granted
for inconsequential infractions and in cases concerning safety.
Violation: VERBAL WARNING. YELLOW CARD if subsequent
violations during the event.
The TECHNICIAN’S role is to help the team prepare the ROBOT
so it can perform at its full potential during a MATCH. The TECHNICIAN, except
as described at the end of section 6.2 DRIVE TEAM, is not an
additional COACH, DRIVER, or HUMAN PLAYER.
Team members in open-access spectator seating areas are not
considered to be in a restricted area and are not prevented from assisting or
using signaling devices. See E102 for related details.
G208 *Show up to your MATCHES. If a ROBOT has passed
initial, complete inspection, at least 1 member of its DRIVE TEAM must report
to the ARENA and participate in each of their assigned Qualification MATCHES.
Violation: DISQUALIFIED.

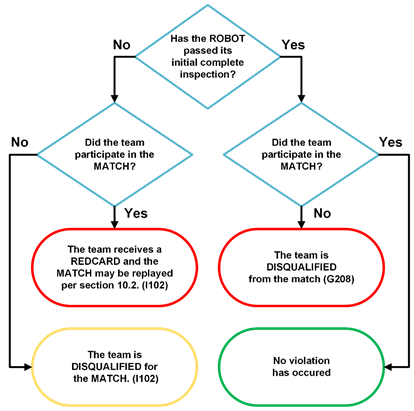

Figure 7‑1 MATCH participation
flowchart
The team should inform the Lead Queuer if the team’s ROBOT
is not able to participate.
G209
*Keep your ROBOT together. A ROBOT
may not intentionally detach or leave a part on the FIELD.
Violation: RED CARD.
G210
*Don’t expect to gain by doing others
harm. A strategy not consistent with standard gameplay and clearly aimed
at forcing the opponent ALLIANCE to violate a rule is not in the spirit of FIRST
Robotics Competition and not allowed. Rule violations forced in this manner
will not result in an assignment of a penalty to the targeted ALLIANCE.
Violation: MAJOR FOUL. YELLOW CARD if REPEATED.
This rule does not apply for strategies consistent with
standard gameplay, for example:
A. a red ALLIANCE ROBOT attempting to climb in their BARGE
ZONE in the final 20 seconds of the MATCH contacts a blue ALLIANCE ROBOT.
B. a blue ROBOT attempts to enter their REEF ZONE to score a CORAL
and pushes a red ROBOT just outside the blue REEF ZONE into it.
This rule requires an intentional act with limited or no
opportunity for the team being acted on to avoid the penalty such as:
C. forcing an opponent ROBOT to CONTROL more than 1 of either
SCORING ELEMENT and violate G409.
D. a blue ALLIANCE ROBOT, pushing a red ALLIANCE ROBOT from
fully outside and far from (i.e. more than 4 ft. (~121 cm)) the blue BARGE ZONE
through the blue BARGE ZONE while another red ROBOT is already on the opposing
ALLIANCE’s side of the FIELD and the REFEREE perceiving that the blue ROBOT is
deliberately making the red ROBOT violate G421.
E. a blue ALLIANCE ROBOT, pushing a red ALLIANCE ROBOT from
fully outside and far from (i.e. more than 4 ft. (~121 cm)) the blue BARGE ZONE
into a CAGE and the REFEREE perceiving that the blue ROBOT is deliberately
making the red ROBOT violate G418.
G211
*Egregious or exceptional violations.
Egregious behavior beyond what is listed in the rules or subsequent violations
of any rule or procedure during the event is prohibited.
In addition to rule violations explicitly
listed in this manual and witnessed by a REFEREE, the Head REFEREE may assign a
YELLOW or RED CARD for egregious ROBOT actions or team member behavior at any
time during the event.
Please see section 6.6.1 YELLOW and RED CARDS for additional detail.
Violation: YELLOW or RED CARD.
The intent of this rule is to provide the Head REFEREES the
flexibility necessary to keep the event running smoothly, as well as keep the
safety of all the participants as the highest priority. Behaviors that put the FIRST
community or integrity of the game at risk are not allowed and are violations
of this rule. Those behaviors include, but are not limited to the list below:
A. inappropriate behavior as outlined in the blue box of G201,
B. jumping over the guardrail,
C. pushing past the FIELD reset person blocking an open gate
to get on the FIELD,
D. reaching into the FIELD and grabbing a ROBOT during a MATCH,
E. PINNING in excess of 15 seconds,
F. exploiting the 3-second window after a MATCH described in section 6.5 Scoring to avoid rule violations (e.g.
triggering an over-extension that enables CAGE points or using a ROBOT’S
residual energy to impact an opponent ROBOT on their BARGE),
G. triggering scoring sensors or otherwise interfering with FMS
or FIELD operation,
H. climbing on the BARGE, and
I.
throwing an ALGAE directly at an opponent
ROBOT
J. deliberately, running an AUTO to disrupt the opponent
ALLIANCE’S CAGES.
K. deliberately, trying to disrupt multiple opponent
ALLIANCE’S CAGES during TELEOP.
The Head REFEREE may assign a YELLOW or RED CARD for a
single instance of a rule violation such as the examples given in items above, or
for multiple instances of any single rule violation. Teams should be aware that
any rule in this manual could escalate to a YELLOW or RED CARD. The Head
REFEREE has final authority on all rules and violations at an event.
G212
*All teams can play. A team
may not encourage another team to exclude their ROBOT or be BYPASSED from a
qualification MATCH for any reason.
Violation: YELLOW CARD or RED CARD if the ROBOT does not
participate in the MATCH.
G301 *Be prompt. A DRIVE TEAM member may not cause
significant delays to the start of their MATCH. Causing a significant delay
requires both of the following to be true:
A.
The expected MATCH start time has passed, and
Event volunteers communicate schedule delays with teams to
the best of their ability. The Pit Display (which is typically located near the
Pit Administration desk) shows any event timing delay. Announcements on the
FIELD and in the pits also provide information on delays, and any team
uncertain of when to queue for a MATCH should communicate with queuing
volunteers.
During Qualification MATCHES, the expected start time of
the MATCH is the time indicated on the MATCH schedule or the cycle time for
current round minus 3 minutes from the end of the previous MATCH (which is
reflected on the schedule on the Pit Display), whichever is later.
During Playoff MATCHES, the expected start time of the
MATCH is the time indicated on the MATCH schedule or 15 minutes from either
ALLIANCE’S previous MATCH, whichever is later.
B.
The DRIVE TEAM has access to the FIELD and is neither MATCH ready nor
making a good faith effort, to quickly become MATCH ready.
Teams that have violated G208 or have 1 DRIVE TEAM
member present and have informed event staff that their ROBOT will not be
participating in the MATCH are considered MATCH ready and not in violation of
this rule.
Violation: If a Qualification MATCH, VERBAL WARNING, or if a
subsequent violation within the tournament phase, MAJOR FOUL applied to their
upcoming MATCH. If the DRIVE TEAM is not MATCH ready within 2 minutes of the VERBAL
WARNING/MAJOR FOUL and the Head REFEREE perceives no good faith effort by the
DRIVE TEAM to quickly become MATCH ready, DISABLED. If a Playoff MATCH, VERBAL
WARNING issued the ALLIANCE, or if an ALLIANCE’S subsequent violation within
the tournament phase, MAJOR FOUL applied to their upcoming MATCH. If the
ALLIANCE is not MATCH ready within 2 minutes of the VERBAL WARNING having been
issued to all 3 teams/MAJOR FOUL and the Head REFEREE perceives no good faith
effort by the DRIVE TEAM to quickly become MATCH ready, their ROBOT is
DISABLED.
The intent of this rule is to provide an equitable amount
of time for both ALLIANCES to prepare for each MATCH and give DRIVE TEAMS grace
given extenuating circumstances that cause them to be late.
Once a VERBAL WARNING /MAJOR FOUL is issued, the Head
REFEREE starts a 2-minute timer and makes a good faith effort to share the
timer’s status with the delaying DRIVE TEAM.
Being “MATCH ready” requires that the ROBOT is on the
FIELD, in its STARTING CONFIGURATION, and turned on. Additionally, the DRIVE
TEAM members must be in their starting positions.
In general, good faith efforts to quickly become MATCH
ready are entirely for the purposes of transitioning the ROBOT into a MATCH
ready state (i.e. not attempts to significantly alter a ROBOT’s capabilities.)
Examples of good faith efforts to quickly become MATCH ready include but are
not limited to:
A. walking safely towards the FIELD with a ROBOT that a team
is not actively modifying,
B. applying quick fixes such as tape or cable ties to make the
ROBOT compliant with STARTING CONFIGURATION requirements,
C. waiting for an OPERATOR CONSOLE computer to boot, and
D. working with FIELD STAFF to get the ROBOT connected to the
FIELD.
Examples that are not considered good faith efforts to
quickly become MATCH ready include but are not limited to:
E. a ROBOT not moving to the FIELD,
F. a ROBOT moving to the FIELD but being actively modified
while doing so,
G. a DRIVE TEAM member remaining on the FIELD once a MATCH is
ready to begin (indicated by the green LEDs having turned off),
H. installing BUMPERS, charging pneumatic systems, or any
other ROBOT maintenance not considered a quick fix as described in item B above
once on the FIELD,
I.
time-consuming use of alignment devices that
are external to the ROBOT (e.g. a DRIVE TEAM could bring and use a measuring
tape, as long as there is no delay to the MATCH by doing so), and
J. repairs more substantial than those described in B.
There are no rules that prohibit use of hand tools
(including battery operated tools) while setting up ROBOTS from the FIELD,
provided they do not cause significant delay or cause safety concerns.
G302
*You can’t bring/use anything you
want. The only equipment that may be brought to the ARENA for use during
a MATCH is listed below. Regardless of if equipment fits criteria below, it may
not be employed in a way that breaks any other rules, introduces a safety
hazard, blocks visibility for FIELD STAFF or audience members, or jams or
interferes with the remote sensing capabilities of another team or the FIELD.
A.
the OPERATOR CONSOLE,
B. non-powered
signaling devices,
C.
reasonable decorative items,
D.
special clothing and/or equipment required due to a disability,
E.
devices used solely for planning, tracking, and communicating strategy
within the same designated area (e.g. ALLIANCE AREA),
F.
devices used solely to record gameplay, and
G. non-powered
Personal Protective Equipment (examples include, but aren’t limited to, gloves,
eye protection, and hearing protection).
Items brought to the ARENA under allowances B-G must meet all following conditions:
I.
do not connect or attach to the OPERATOR CONSOLE, FIELD, or ARENA,
II.
do not connect or attach to another ALLIANCE member (other than items in
category G),
III.
do not communicate with anything or anyone outside of the ARENA,
IV.
do not communicate with the TECHNICIAN,
V.
do not include any form of enabled wireless electronic communication
with the exception of medically required equipment, and
VI.
do not in any way affect the outcome of a MATCH, other than by allowing
the DRIVE TEAM to
a. plan
or track strategy for the purposes of communication of that strategy to other
ALLIANCE members or
b. use
items allowed per B
to communicate with the ROBOT.
Violation: MATCH will not start until the situation is
remedied. If discovered or used inappropriately during a MATCH, YELLOW CARD.
Examples of equipment that may be considered a safety
hazard in the confined space of the ALLIANCE AREA include, but are not limited
to, a folding step stool, ladder, or a large signaling device.
Examples of remote sensing capabilities include, but are
not limited to, vision systems, acoustic range finders, sonars, and infrared
proximity sensors.
Use of imagery that, to a reasonably astute observer,
mimics the AprilTags employed on the FIELD is a violation of this rule.
Examples of wireless communication include, but are not
limited to, radios, walkie-talkies, cell phones, Bluetooth communications, and
Wi-Fi.
G303 *Start your ROBOTS. A ROBOT must meet all
following MATCH-start requirements:
A. it
does not pose a hazard to humans, FIELD elements, or other ROBOTS,
B.
has passed initial, complete inspection, i.e. it’s compliant with all
ROBOT rules (for exceptions regarding Practice MATCHES, see section 9 Inspection
and Eligibility),
C. if
modified after initial Inspection, it’s compliant with I104,
D.
its BUMPERS overlap their ROBOT STARTING LINE,
E.
it’s the only team-provided item left on the FIELD,
F.
it’s not attached to, entangled with, or suspended from any FIELD
element,
G.
it’s confined to its STARTING CONFIGURATION (reference R102 and R104), and
H.
it fully and solely supports not more than 1 CORAL (as described in section
6.3.4 SCORING ELEMENTS).
Violation: If fix is a quick remedy, the MATCH won’t start
until all requirements are met. If it is not a quick remedy, DISABLED and, at
the discretion of the Head REFEREE, must be re-inspected. If a ROBOT not
compliant with part B or C participates, its team receives a RED CARD.
If a ROBOT is BYPASSED prior to the start of the MATCH, the
DRIVE TEAM may not remove the ROBOT from the FIELD without permission from the
Head REFEREE or the FTA.
For assessment of many of the items listed above, the Head
REFEREE is likely to consult with the LRI.
Rules in this section pertain to game play once a MATCH
begins.
The AUTO period is the first 15 seconds of the
MATCH, and the FMS blocks any DRIVER control, so ROBOTS operate with only their
pre-programmed instructions. Rules in this section apply only during the
AUTO period.
G401
*Behind the lines. In AUTO, each
DRIVE TEAM member must remain in their staged areas. A DRIVE TEAM member staged
behind a HUMAN STARTING LINE may not contact anything in front of that HUMAN STARTING
LINE, unless for personal or equipment safety, to press the E-Stop or A-Stop,
or granted permission by a Head REFEREE or FTA.
Violation: MINOR FOUL regardless of the number of items
contacted.
Pointing, gesturing, or otherwise extending across the HUMAN
STARTING LINE such that contact is not made with carpet or other ARENA elements
is not a violation of this rule.
An example of an exception for equipment safety is if an
OPERATOR CONSOLE starts to fall from, or has already fallen off of, the DRIVER
STATION shelf. In that circumstance, DRIVE TEAM members may step forward to
catch it or pick it up off the ground and return it to the shelf.
G402
*Let the ROBOT do its thing.
In AUTO, a DRIVE TEAM member may not directly or indirectly interact with a
ROBOT or an OPERATOR CONSOLE unless for personal safety, OPERATOR CONSOLE
safety, or pressing an E-Stop or A-Stop. A HUMAN PLAYER feeding CORAL to a
ROBOT is an exception to this rule.
Violation: MINOR FOUL and YELLOW CARD
G403
Limited AUTO opponent
interaction. In AUTO, a ROBOT whose BUMPERS are completely across the
BARGE ZONE (i.e. to the opposite side of the BARGE ZONE from its ROBOT STARTING
LINE) may not contact an opponent ROBOT (either directly or transitively
through a SCORING ELEMENT CONTROLLED by either ROBOT and regardless of who
initiates contact).
Violation: MAJOR FOUL and VERBAL WARNING. YELLOW CARD if
subsequent violations during the event.
G404
No throwing in AUTO. In
AUTO, a HUMAN PLAYER may not enter ALGAE onto the field.
Violation: MINOR FOUL.
G405
No opponents CAGES in AUTO. In
AUTO, a ROBOT may not contact an opposing ALLIANCE’s CAGE.
Violation: MAJOR FOUL.
7.4.2 SCORING
ELEMENTS
G406 *ROBOTS: use SCORING ELEMENTS as directed. A ROBOT
may not deliberately use a SCORING ELEMENT in an attempt to ease or amplify a challenge
associated with a FIELD element.
Violation: MAJOR FOUL.
Examples include, but are not limited to:
A. launching SCORING ELEMENTS at ROBOTS,
B. using SCORING ELEMENTS to elevate ROBOTS in an attempt to
get on a CAGE,
C. positioning SCORING ELEMENTS to impede opponent access to
their PROCESSOR,
D. Placing a CORAL into the PROCESSOR, and
E. Using CORAL to dislodge ALGAE from the REEF
G407 *Keep SCORING ELEMENTS in bounds. A ROBOT may
not intentionally eject a SCORING ELEMENT from the FIELD (either directly or by
bouncing off a FIELD element or other ROBOT) other than ALGAE through a PROCESSOR.
Violation: MINOR FOUL. If REPEATED, MAJOR FOUL.
G408
*Don’t abuse SCORING ELEMENTS. Neither a ROBOT nor a HUMAN PLAYER may
damage a SCORING ELEMENT.
Violation: VERBAL WARNING. MAJOR FOUL if REPEATED in any
subsequent MATCHES during the event. If via a ROBOT and the Head REFEREE
determines that further damage is likely to occur, DISABLED. Corrective action
(such as eliminating sharp edges, removing the damaging MECHANISM, and/or
re-inspection) may be required before the ROBOT may compete in subsequent
MATCHES.
SCORING ELEMENTS are expected to undergo a reasonable
amount of wear and tear as they are handled by ROBOTS, such as scratching or
marking. Routinely gouging, tearing off pieces, or marking SCORING ELEMENTS are
violations of this rule.
G409
1 of each at a time. A
ROBOT may not simultaneously CONTROL more than 1 CORAL and 1 ALGAE either
directly or transitively through other objects. A ROBOT is in CONTROL of a
SCORING ELEMENT if
A.
the SCORING ELEMENT is fully supported by or stuck in, on, or under the
ROBOT or
B. the
ROBOT intentionally pushes a SCORING ELEMENT to a
desired location or in a preferred direction (i.e. herding).
A ROBOT pushing scored CORAL on level 1 while
attempting to score other CORAL is an exception to this rule.
Violation: MINOR FOUL per additional SCORING ELEMENT. YELLOW
CARD if excessive.
Examples of interaction with a SCORING ELEMENT that are not
“CONTROL” include, but are not limited to:
A. “bulldozing” (inadvertent contact with a SCORING ELEMENT
while in the path of the ROBOT moving about the FIELD)
B. “deflecting” (being hit by a SCORING ELEMENT that bounces
into or off a ROBOT)
C. inadvertent contact with a SCORING ELEMENT while attempting
to acquire a SCORING ELEMENT from the CORAL STATION.
It is important to design your ROBOT so that it is
impossible to inadvertently or unintentionally CONTROL more than the limit.
Excessive violations of CONTROL limits include, but are not
limited to, simultaneous CONTROL of 3 or more CORAL or frequent,
greater-than-MOMENTARY CONTROL (i.e. more than twice in a MATCH) of 2 or more CORAL.
G410 No de-scoring. A ROBOT may not de-score a
CORAL scored on the opponent’s REEF.
Violation: MAJOR FOUL per de-scored CORAL and the opposing
ALLIANCE is awarded the CORAL RP.
G411 Don’t put ALGAE on their REEF. A ROBOT may
not deliberately put ALGAE on their opponent’s REEF.
Violation: MAJOR FOUL and YELLOW CARD.
G412
Only throw CORAL if in your REEF
ZONE. A ROBOT may not launch CORAL unless their BUMPERS are partially in
their REEF ZONE.
Violation: MAJOR FOUL.
A CORAL is considered launched if it is shot into the air,
kicked across the floor to a desired location or in a preferred direction, or
thrown in a forceful way. “Bulldozing” (inadvertent contact with a SCORING
ELEMENT while in the path of the ROBOT moving about the FIELD) is not
considered launching.
This rule is not
intended to penalize typical movement of CORAL outside an ALLIANCE’S REEF ZONE
which come to rest a short distance (approximately 3 ft. (~92cm)) from the ROBOT.
Examples of such actions could be but are not limited to:
A. Running an intake in reverse causing a CORAL to travel a
short distance from the ROBOT
B. A ROBOT pushing a CORAL a short distance away in the
process of herding it across the FIELD
7.4.3
ROBOT
G413
*ROBOTS must be safe. A ROBOT may
not pose an undue hazard to a human, an ARENA element, or another ROBOT in the
following ways:
A.
the ROBOT or anything it CONTROLS, e.g. a CORAL, contacts anything
outside the FIELD except for MOMENTARY contact inside the CHUTE,
B.
its BUMPERS fail such that a segment completely detaches,
C.
a corner of its ROBOT PERIMETER is exposed,
D.
its team number or ALLIANCE color are indeterminate,
E.
its BUMPERS leave the BUMPER ZONE REPEATEDLY or for more than a
MOMENTARY amount of time, or
F.
its operation or design is dangerous or unsafe.
Violation: DISABLED.
Examples of dangerous operation or designs that likely pose
undue hazards include, but are not limited to:
A. uncontrolled motion that cannot be stopped by the DRIVE
TEAM,
B. ROBOT parts “flailing” outside of the FIELD,
C. ROBOTS dragging their battery, and
D. ROBOTS that consistently extend outside the FIELD.
Please be conscious of REFEREES and FIELD STAFF working
around the ARENA who may be in close proximity to your ROBOT.
G414 *Keep your BUMPERS low.
BUMPERS must be in the BUMPER ZONE (see R405).
Violation: MINOR FOUL.
G415 Expansion limits. A ROBOT may not extend more
than 1 ft. 6 in. (~45 cm) beyond the vertical projection of its ROBOT PERIMETER.
If the over-expansion is due to damage and
not used for strategic benefit, it is an exception to this rule, and no penalty
is imposed.
Violation: MINOR FOUL, or MAJOR FOUL if the over-expansion is
used for strategic benefit, including if it impedes or enables a scoring action.
Examples of compliant and non-compliant extensions are
shown in Figure 7‑2. ROBOT A
violates this rule for having an extension that is too long, while ROBOTS B, C,
and D do not violate this rule.
Figure 7‑2 Examples of compliance
and non-compliance of this rule (examples A and B are side views, examples C
and D are top views)
The intent of this rule is to prevent piling on a punitive
response to a ROBOT that’s already experienced hardship and not leveraging that
hardship for gain. Examples for this rule include the following:
A.
a physical device on a team’s ROBOT, whose
purpose is to restrain their CORAL scoring arm from extending beyond the limit,
breaks after a collision with another ROBOT. Provided the ROBOT does not use
the now-too-long extension to score SCORING ELEMENTS, no violation is assigned.
B.
a vertical structural member of a ROBOT breaks
at the bottom and rotates out such that it breaches the limit imposed. The
ROBOT then parks such that its extension blocks opponent ROBOTS from reaching
their PROCESSOR. A MAJOR FOUL is issued.
G416 Don’t damage the FIELD.
A ROBOT may not damage FIELD elements.
Violation: VERBAL WARNING. If the Head REFEREE infers that additional
damage is likely, DISABLED. YELLOW CARD for any subsequent damage during the
event. Corrective action (such as eliminating sharp edges, removing the
damaging MECHANISM, and/or re-inspection) may be required before the ROBOT will
be allowed to compete in subsequent MATCHES.
G417
Watch your FIELD interaction.
A ROBOT is prohibited from the following interactions with FIELD elements with
the exception of CAGES.
A. grabbing,
B. grasping,
C.
attaching to (including the use of a vacuum or hook fastener to anchor
to the FIELD carpet),
D.
becoming entangled with, and
E. suspending
from.
Violation: MAJOR FOUL, plus YELLOW CARD if REPEATED, or
longer than MOMENTARY. If the Head REFEREE infers that damage is likely,
DISABLED. Corrective action (such as removing the offending MECHANISM, and/or
re-inspection) may be required before the ROBOT will be allowed to compete in
subsequent MATCHES.
G418
An Opponent’s CAGES are
off-limits in TELEOP. In TELEOP, A ROBOT may not contact an opponent’s
CAGE.
Violation: MAJOR FOUL and opposing ALLIANCE is awarded the
BARGE RP if a Qualification MATCH.
G419 ANCHORS are off-limits. A ROBOT may not
contact the ANCHORS. Exceptions are granted for actions that are
inconsequential.
Violation: MAJOR FOUL and the ROBOT is ineligible for CAGE
points.
The intent of
this rule is to disallow the use of the ANCHOR to ease the climbing challenge.
Examples of
contact with the ANCHOR that are considered inconsequential include, but are
not limited to:
A.
bumping into the ANCHOR during an attempt to
climb
B.
inadvertent contact while attempting to PARK
C.
inadvertent contact while driving through the
BARGE ZONE
Examples of contact with the
ANCHOR that are considered consequential include, but are not limited to:
D. Reacting against the ANCHOR to lift off the floor
E. Reacting against the ANCHOR to stabilize the ROBOT (It is
possible that certain interactions with the ANCHOR that absorb ROBOT energy may
still be considered inconsequential.)
F. Overtly contacting the ANCHOR to stop the movement of the
CAGE (It is possible that certain interactions with the ANCHOR that absorb
ROBOT energy may be still be considered inconsequential.)
G420 NET and contents are off-limits. A ROBOT
may not contact either NET or any ALGAE scored in an opponent NET.
Violation: MAJOR FOUL. Additional MAJOR FOUL for each opponent
ALGAE de-scored.
G421
1 defender at a time. No more than 1 ROBOT may be on the opponent’s side of the
FIELD (i.e. containing the opponent REEF) with its BUMPERS fully outside and
beyond the BARGE ZONES.
Violation: MINOR FOUL, and for every 3 seconds in which the
situation is not corrected, a MAJOR FOUL is assessed.
Note, G422, G423, G424 are mutually exclusive. A single ROBOT to ROBOT
interaction which violates more than 1 of these rules results in the most
punitive penalty, and only the most punitive penalty, being assessed.
G422
*Stay out of other ROBOTS. A
ROBOT may not use a COMPONENT outside its ROBOT PERIMETER (except its BUMPERS)
to initiate contact with an opponent ROBOT inside the vertical projection of the
opponent’s ROBOT PERIMETER.
Violation: MINOR FOUL.
For the purposes of this rule, “initiate contact” requires
movement towards an opponent ROBOT.
In a collision, it’s possible for both ROBOTS to initiate
contact.
G423 *This isn’t combat robotics. A ROBOT may not
damage or functionally impair an opponent ROBOT in either of the following
ways:
A.
deliberately.
B. regardless
of intent, by initiating contact, either directly or transitively via a SCORING
ELEMENT CONTROLLED by the ROBOT, inside the vertical projection of an opponent’s
ROBOT PERIMETER.
Damage or functional impairment because of
contact with a tipped-over opponent ROBOT, which is not perceived by a REFEREE
to be deliberate, is not a violation of this rule.
Violation: MAJOR FOUL and YELLOW CARD, or if opponent ROBOT
is unable to drive, then MAJOR FOUL and RED CARD.
FIRST Robotics
Competition can be a full-contact competition and may include rigorous game
play. While this rule aims to limit severe damage to ROBOTS, teams should
design their ROBOTS to be robust.
Examples of violations of this rule include, but are not
limited to:
A. A ROBOT leaves an arm extended, spins around to change
course, and unintentionally hits and damages a COMPONENT inside the ROBOT PERIMETER
of a nearby opponent ROBOT.
B. A ROBOT, in the process of trying to quickly reverse
direction, tips up on a single pair of wheels, lands atop an opponent ROBOT,
and damages a COMPONENT inside that opponent’s ROBOT PERIMETER.
C. A ROBOT high-speed rams and/or REPEATEDLY smashes an
opponent ROBOT and causes damage. The REFEREE infers that the ROBOT was
deliberately trying to damage the opponent’s ROBOT.
Examples of functionally impairing another ROBOT include,
but are not limited to:
D. opening an opponent’s relief valve such that the opponent’s
air pressure drops and
E. powering off an opponent’s ROBOT (this example also clearly
results in a RED CARD because the ROBOT is no longer able to drive).
At the conclusion of the MATCH, the Head REFEREE may elect
to visually inspect a ROBOT to confirm violations of this rule made during a
MATCH and remove the violation if the damage cannot be verified.
For the purposes of this rule, “initiating contact”
requires movement towards an opponent ROBOT.
In a collision, it’s possible for both ROBOTS to initiate
contact.
"Unable to drive" means that because of the
incident, the DRIVER can no longer drive to a desired location in a reasonable
time (generally). For example, if a ROBOT can only move in circles, or can only
move extremely slowly, the ROBOT is considered unable to drive.
G424 *Don’t tip or entangle. A ROBOT may not
deliberately, attach to, tip, or entangle with an opponent ROBOT.
Violation: MAJOR FOUL and YELLOW CARD, or if CONTINUOUS or
opponent ROBOT is unable to drive, then MAJOR FOUL and RED CARD.
Examples of violations of this rule include, but are not
limited to:
A. using a wedge-like MECHANISM to tip over opponent ROBOTS,
B. making BUMPER-to-BUMPER contact with an opponent ROBOT that
is attempting to right itself after previously falling over and causing them to
fall over again, and
C. causing an opponent ROBOT to tip over by contacting the
ROBOT after it starts to tip if, in the judgement of the REFEREE, that contact
could have been avoided.
Tipping as an unintended consequence of normal ROBOT to
ROBOT interaction, including single BUMPER to BUMPER hits that result in a
ROBOT tipping, is not a violation of this rule.
"Unable to drive" means that because of the
incident, the DRIVER can no longer drive to a desired location in a reasonable
time (generally). For example, if a ROBOT can only move in circles, or can only
move extremely slowly, the ROBOT is considered unable to drive.
G425
*There’s a 3-count on PINS. A
ROBOT may not PIN an opponent’s ROBOT for more than 3 seconds. A ROBOT is
PINNING if it is preventing the movement of an opponent ROBOT by
contact, either direct or transitive (such as against a FIELD element). A
PIN count ends once any of the following criteria below are met:
A.
the ROBOTS have separated by at least 6 ft. (~183 cm) from each other
for more than 3 seconds,
B.
either ROBOT has moved 6 ft. from where the PIN initiated for more than 3
seconds, or
C.
the PINNING ROBOT gets PINNED.
For criteria A, the PIN count pauses once
ROBOTS are separated by 6 ft. until either the PIN ends or the PINNING ROBOT
moves back within 6 ft., at which point the PIN count is resumed.
For criteria B, the PIN count pauses once
either ROBOT has moved 6ft from where the PIN initiated until the PIN ends or
until both ROBOTS move back within 6ft., at which point the PIN count is
resumed.
Violation: MINOR FOUL, and for every 3 seconds in which the
situation is not corrected, a MAJOR FOUL is assessed.
A team’s desired direction of travel is not a consideration
when determining if a ROBOT is PINNED.
G426
*Don’t collude with your partners to
shut down major parts of game play. 2 or more ROBOTS that appear to a
REFEREE to be working together may not isolate or close off any major element
of MATCH play.
Violation: MAJOR FOUL, and for every 3 seconds in which the
situation is not corrected, a MAJOR FOUL is assessed.
Examples of violations of this rule include, but are not
limited to:
A. shutting down access to all SCORING ELEMENTS,
B. quarantining all opponents to a small area of the FIELD,
C. blocking all access to the opponent’s PROCESSOR, and
D. blocking all access to the opponent’s CAGES.
A single ROBOT blocking access to a particular area of the
FIELD is not a violation of this rule.
2 ROBOTS independently playing defense on 2 opponent ROBOTS
is not a violation of this rule.
G427 ZONE protection. A ROBOT may not contact,
directly or transitively through a SCORING ELEMENT, an opponent ROBOT partially
or fully inside the opponent’s BARGE ZONE or REEF ZONE regardless of who
initiates contact.
Violation: MAJOR FOUL.
ROBOTS that contact each other while in their respective BARGE
ZONES may result in a violation for both ALLIANCES
G428
CAGE protection. A ROBOT
may not contact, directly or transitively through a SCORING ELEMENT, an
opponent ROBOT in contact with an opponent CAGE during the last 20 seconds
regardless of who initiates contact.
Violation: MAJOR FOUL and the opponent ALLIANCE is awarded
the BARGE RP
7.4.5 Human
G429
*No wandering. A DRIVE TEAM
member must remain in their designated area as follows:
A.
DRIVERS and COACHES may not contact anything outside their ALLIANCE
AREA,
B.
a DRIVER must use the OPERATOR CONSOLE in the DRIVER STATION to which
they are assigned, as indicated on the team sign,
C.
a HUMAN PLAYER may not contact anything outside their ALLIANCE AREA or their
PROCESSOR AREA, and
D.
a TECHNICIAN may not contact anything outside their designated area.
Exceptions are granted as follows:
E.
for a HUMAN PLAYER partially outside the ALLIANCE or PROCESSOR AREA,
F.
in cases concerning safety, and
G.
for actions that are inadvertent, MOMENTARY, and inconsequential.
Violation: MINOR FOUL
An intent of item B is to prevent unsafe situations where
long tethers to OPERATOR CONSOLE devices increase tripping hazards as the
operator moves about the ALLIANCE AREA. In the interest of avoiding nuisance
penalties associated with a DRIVE TEAM member stepping outside of a prescribed
area, we prefer to offer a general guideline as to what it means to use the
OPERATOR CONSOLE in the ALLIANCE AREA. Provided the DRIVE TEAM member is within
close proximity of their DRIVER STATION, there will be no repercussions. However,
a DRIVE TEAM member located more than approximately half a DRIVER STATION width
away from their own DRIVER STATION while using their OPERATOR CONSOLE is likely
violating this rule.
G430
*COACHES and other teams: hands off
the controls. A ROBOT shall be operated only by the DRIVERS and/or HUMAN
PLAYERS of that team. A COACH activating their E-Stop or A-Stop is the
exception to this rule.
Violation: MAJOR FOUL. RED CARD if greater-than-MOMENTARY.
Exceptions may be made before a MATCH for major conflicts,
e.g. religious holidays, major testing, transportations issues, etc.
G431
*DRIVE TEAMS, watch your reach.
A DRIVE TEAM member may not extend into the CHUTE.
Violation: MINOR FOUL.
G432
*Humans: use SCORING ELEMENTS as
directed. A DRIVE TEAM member may not deliberately use a SCORING ELEMENT
in an attempt to ease or amplify a challenge associated with a FIELD
element.
Violation: MAJOR FOUL.
Examples include, but are not
limited to:
A. a HUMAN PLAYER uses an ALGAE to disrupt an opponent ROBOT
G433
*SCORING ELEMENT delivery. SCORING
ELEMENTS may only be entered onto the FIELD as follows:
A. CORAL
may only be introduced to the FIELD by a HUMAN PLAYER or DRIVER through the CORAL
STATION and
B. ALGAE
may only be entered onto the FIELD by a HUMAN PLAYER in their PROCESSOR AREA.
Violation: MAJOR FOUL.
G434
*COACHES, SCORING ELEMENTS are off
limits. COACHES may not touch SCORING ELEMENTS, unless for safety
purposes.
Violation: MINOR FOUL.
G435
The PROCESSOR AREA has a storage
limit. HUMAN PLAYERS may not store more than 4 ALGAE in the PROCESSOR
AREA. ALGAE can only be stored in the following locations:
A. 3 in
the holders on top of the PROCESSOR, and
B. 1 at
the end of the PROCESSOR exit ramp
HUMAN PLAYERS making a good-faith
effort to immediately move or enter additional ALGAE is an exception to this
rule.
Violation: MAJOR FOUL per additional ALGAE.
G501 *Leave promptly. A DRIVE TEAM member may not
cause significant or multiple delays to the start of a subsequent MATCH,
scheduled break content, or other FIELD activities.
Violation: VERBAL WARNING. YELLOW CARD if subsequent
violations at any point during the event.
8 ROBOT
Construction Rules (R)
The rules listed below explicitly address legal parts and
materials and how those parts and materials may be used on a REEFSCAPE ROBOT. A
ROBOT is an electromechanical assembly built by the FIRST Robotics
Competition team to play the current season’s game and includes all the basic
systems required to be an active participant in the game –power,
communications, control, BUMPERS, and movement about the FIELD. A BUMPER is
a protective assembly designed to attach to the exterior of the ROBOT and
constructed as specified in section 8.4 BUMPER Rules.
There are many reasons for the structure of the rules,
including safety, reliability, parity, creation of a reasonable design
challenge, adherence to professional standards, impact on the competition, and
compatibility with the Kit of Parts (KOP). The KOP is the collection
of items listed on the current season’s Kickoff Kit Checklists, distributed to
the team via FIRST Choice in the current season, or paid for completely
(except shipping) with a Product Donation Voucher (PDV) from the current
season.
Another intent of these rules is to have all energy sources
and active actuation systems on the ROBOT (e.g. batteries, compressors, motors,
servos, cylinders, and their controllers) drawn from a well-defined set of
options. This is to ensure that all teams have access to the same actuation
resources and that the INSPECTORS are able to accurately and
efficiently assess the legality of a given part.
ROBOTS are made up of COMPONENTS and MECHANISMS. A COMPONENT
is any part in its most basic configuration, which cannot be
disassembled without damaging or destroying the part or altering its fundamental
function. A MECHANISM is an assembly of COMPONENTS that
provide specific functionality on the ROBOT. A MECHANISM can be disassembled
(and then reassembled) into individual COMPONENTS without damage to the parts.
Many rules in this section reference
Commercial-Off-The-Shelf (COTS) items. A COTS item must be a
standard (i.e. not custom order) part commonly available from a VENDOR for all
teams for purchase. To be a COTS item, the COMPONENT or MECHANISM must be
in an unaltered, unmodified state (with the exception of installation or
modification of any software). Items that are no longer commercially available
but are functionally equivalent to the original condition as delivered from the
VENDOR are considered COTS and may be used.
Example 1: A team orders 2 ROBOT grippers from RoboHands
Corp. and receives both items. They put 1 in their storeroom and plan to use it
later. Into the other, they drill “lightening holes” to reduce weight. The
first gripper is still classified as a COTS item, but the second gripper is now
a FABRICATED ITEM, as it has been modified.
Example 2: A team obtains openly available blueprints of a
drive module commonly available from Wheels-R-Us Inc. and has local machine
shop “We-Make-It, Inc.” manufacture a copy of the part for them. The produced
part is not a COTS item, because it is not commonly carried as part of the
standard stock of We-Make-It, Inc.
Example 3: A team obtains openly available design drawings
from a professional publication during the pre-season and uses them to
fabricate a gearbox for their ROBOT during the build period following Kickoff.
The design drawings are considered a COTS item and may be used as “raw
material” to fabricate the gearbox. The finished gearbox itself would be a
FABRICATED ITEM, and not a COTS item.
Example 4: A COTS part that has non-functional label
markings added would still be considered a COTS part, but a COTS part that has
device-specific mounting holes added is a FABRICATED ITEM.
Example 5: A team has a COTS single-board processor version
1.0, which can no longer be purchased. Only the COTS single-board processor
version 2.0 may be purchased. If the COTS single-board processor version 1.0 is
functionally equivalent to its original condition, it may be used.
Example 6: A team has a COTS gearbox which has been
discontinued. If the COTS gearbox is functionally equivalent to its original
condition, it may be used.
A VENDOR is a legitimate business source for
COTS items that satisfies all the following criteria:
A.
has a Federal Tax Identification number. In cases where the VENDOR is
outside of the United States, they must possess an equivalent form of
registration or license with the government of their home nation that
establishes and validates their status as a legitimate business licensed to
operate within that country.
B.
is not a “wholly owned subsidiary” of a FIRST Robotics Competition
team or collection of teams. While there may be some individuals affiliated
with both a team and the VENDOR, the business and activities of the team and
VENDOR must be completely separable.
C.
should maintain sufficient stock or production capability so they are
able to ship any general (i.e., non-FIRST unique) product within 5
business days of receiving a valid purchase request. It is recognized that
certain unusual circumstances (such as such as a global supply chain disruption
and/or 1,000 FIRST teams all ordering the same part at once from the
same VENDOR) may cause atypical delays in shipping due to backorders for even
the largest VENDORS. Such delays due to higher-than-normal order rates are
excused. This criterion may not apply to custom-built items from a source that
is both a VENDOR and a fabricator.
For example, a VENDOR may sell flexible belting that the
team wishes to procure to use as treads on their drive system. The VENDOR cuts
the belting to a custom length from standard shelf stock that is typically
available, welds it into a loop to make a tread, and ships it to a team. The
fabrication of the tread takes the VENDOR 2 weeks. This would be considered a
FABRICATED ITEM, and the 2-week ship time is acceptable. Alternately, the team
may decide to fabricate the treads themselves. To satisfy this criterion, the
VENDOR would just have to ship a length of belting from shelf stock (i.e. a
COTS item) to the team within 5 business days and leave the welding of the cuts
to the team.
D.
makes their products available to all FIRST Robotics Competition
teams. A VENDOR must not limit supply or make a product available to just a
limited number of FIRST Robotics Competition teams.
The intent of this definition is to be as inclusive as
possible to permit access to all legitimate sources, while preventing ad hoc
organizations from providing special-purpose products to a limited subset of
teams in an attempt to circumvent the cost accounting rules.
FIRST desires to
permit teams to have the broadest choice of legitimate sources possible, and to
obtain COTS items from the sources that provide them with the best prices and
level of service available. Teams also need to protect against long delays in
availability of parts that will impact their ability to complete their ROBOT.
The build season is brief, so the VENDOR must be able to get their product,
particularly FIRST unique items, to a team in a timely manner.
Ideally, chosen VENDORS should have national distributors
(e.g. Home Depot, Lowes, MSC, McMaster-Carr, etc.). Remember, FIRST Robotics
Competition events are not always near home – when parts fail, local access to
replacement materials is often critical.
A FABRICATED ITEM is any COMPONENT
or MECHANISM that has been altered, built, cast, constructed, concocted,
created, cut, heat treated, machined, manufactured, modified, painted,
produced, surface coated, or conjured partially or completely into the final
form in which it will be used on the ROBOT.
Note that it is possible for an item (typically raw
materials) to be neither COTS nor a FABRICATED ITEM. For example, a 20 ft.
(~610 cm) length of aluminum which has been cut into 5 ft. (~152 cm) pieces by
the team for storage or transport is neither COTS (it’s not in the state
received from the VENDOR), nor a FABRICATED ITEM (the cuts were not made to
advance the part towards its final form on the ROBOT).
Teams may be asked to provide documentation proving the
legality of non-REEFSCAPE KOP items during inspection where a rule specifies
limits for a legal part (e.g. pneumatic items, current limits, COTS
electronics, etc.).
Some of these rules make use of English unit requirements
for parts. If your team has a question about a metric-equivalent part’s
legality, please e-mail your question to the FIRST Robotics Competition
Kit of Parts team at frcparts@firstinspires.org for an official
ruling. To seek approval for alternate devices for inclusion in future FIRST
Robotics Competition seasons, please contact the Kit of Parts team at frcparts@firstinspires.org
with item specifications.
Teams should acknowledge the support provided by the
corporate sponsors and mentors with an appropriate display of their school and
sponsors names and/or logos (or the name of the supporting youth organization,
if appropriate).
FIRST Robotics Competition can be a full-contact
competition and may include rigorous game play. While the rules aim to limit
severe damage to ROBOTS, teams should design their ROBOTS to be robust.
R101
*ROBOT PERIMETER must be fixed. The
ROBOT (excluding BUMPERS) must have a ROBOT PERIMETER, contained
within the BUMPER ZONE and established while in the ROBOT’S STARTING
CONFIGURATION, that is comprised of fixed, non-articulated structural elements
of the ROBOT. Minor protrusions no greater than ¼ in. (~6 mm) such as bolt
heads, fastener ends, weld beads, and rivets are not considered part of the ROBOT
PERIMETER.
To determine the ROBOT PERIMETER, wrap a piece of string
around the outer most parts of the ROBOT (excluding BUMPERS) at the BUMPER ZONE
described in R405 and pull it taut.
The string outlines the ROBOT PERIMETER.
Example: A ROBOT’S chassis is shaped like the letter ‘U’,
with a large gap between chassis elements on the front of the ROBOT. When
wrapping a taut string around this chassis, the string extends across the gap
and the resulting ROBOT PERIMETER is a rectangle with 4 sides.
Figure 8‑1 ROBOT PERIMETER example
R102
*STARTING CONFIGURATION – no
overhang. In the STARTING CONFIGURATION (the
physical configuration in which a ROBOT starts a MATCH), no part of the ROBOT
shall extend outside the vertical projection of the ROBOT PERIMETER, with the
exception of its BUMPERS and minor protrusions such as bolt heads, fastener
ends, rivets, cable ties, etc.
If a ROBOT is designed as intended and each side is pushed
up against a vertical wall (in STARTING CONFIGURATION and with BUMPERS
removed), only the ROBOT PERIMETER (or minor protrusions) will be in contact
with the wall.
The allowance for minor protrusions in this rule is
intended to allow protrusions that are both minor in extension from the ROBOT PERIMETER
and cross-sectional area.
If a ROBOT uses interchangeable MECHANISMS per I103, Teams should be
prepared to show compliance with this rule and R105 in all
configurations.
R103
*ROBOT weight limit. The ROBOT
weight must not exceed 115 lbs. (~52 kg). When determining weight, the basic ROBOT
structure and all elements of all additional MECHANISMS that might be used in a
single configuration of the ROBOT shall be weighed together (see I103).
For the purposes of determining compliance
with the weight limitations, the following items are excluded:
A.
ROBOT BUMPERS,
B. ROBOT
battery and its associated half of the Anderson cable quick connect/disconnect
pair (including no more than 12 in. (~30 cm) of cable per leg, the associated
cable lugs, connecting bolts, and insulation), and
C.
tags used for location detection systems if provided by the event.
R104
STARTING CONFIGURATION – max
size. A ROBOT’S STARTING CONFIGURATION may not have a ROBOT PERIMETER
greater than 120 in. (~304 cm) and may not be more than 3 ft. 6 in. (~106 cm)
tall.
Be sure to consider the size of the ROBOT on its cart to
make sure it will fit through doors. Also consider the size of the ROBOT to
ensure that it will fit into a shipping crate, vehicle, etc.
Note that rules contained in section 8.4 BUMPER Rules may impose
additional restrictions on ROBOT design.
R105
ROBOT extension limit. ROBOTS
may not extend more than 1 ft. 6 in. (~457 mm) beyond the vertical projection
of their ROBOT PERIMETER.
Figure 8‑2 ROBOT PERIMETER extension
Teams should expect to have to demonstrate a ROBOT’S
ability to constrain itself per above during inspection. Constraints may be
implemented with either hardware or software.
See section 7.4.3 ROBOT for height and
extension restrictions for various areas of the FIELD.
R201
*No digging into carpet. Traction
devices must not have surface features that could damage the ARENA (e.g. metal,
sandpaper, inflexible studs, cleats, hook-loop fasteners or similar
attachments). Traction devices include all parts of the ROBOT that are designed
to transmit any propulsive and/or braking forces between the ROBOT and FIELD
carpet.
R202
*No exposed sharp edges.
Protrusions from the ROBOT and exposed surfaces on the ROBOT shall not pose
hazards to the ARENA elements (including SCORING ELEMENTS) or people.
R203
*General safety. ROBOT parts
shall not be made from hazardous materials, be unsafe, cause an unsafe
condition, or interfere with the operation of other ROBOTS.
Examples of items that will violate this rule include (but
are not limited to):
A. shields, curtains, or any other devices or materials
designed or used to obstruct or limit the vision of any DRIVE TEAM members
and/or interfere with their ability to safely control their ROBOT,
B. speakers, sirens, air horns, or other audio devices that
generate sound at a level sufficient to be a distraction,
C. any devices or decorations specifically intended to jam or
interfere with the remote sensing capabilities of another ROBOT, including
vision systems, acoustic range finders, sonars, infrared proximity detectors,
etc. (e.g. including imagery on your ROBOT that utilizes or closely mimics
36h11 AprilTags),
D. exposed lasers other than Class I,
E. flammable gasses,
F. any device intended to produce flames or pyrotechnics,
G. hydraulic fluids or hydraulic items,
H. switches or contacts containing liquid mercury,
I.
circuitry used to create voltages in excess of
24 Volts,
J. any ballast not secured sufficiently, including loose
ballast e.g. sand, ball bearings, etc., such that it may become loose during a MATCH,
K. exposed, untreated hazardous materials (e.g. lead weights)
used on the ROBOT. These materials may be permitted if painted, encapsulated,
or otherwise sealed to prevent contact. These materials may not be machined in
any way at an event.
L. tire sealant, and
M. high intensity light sources used on the ROBOT (e.g. super
bright LED sources marketed as ‘military grade’ or ‘self-defense’) may only be
illuminated for a brief time while targeting and may need to be shrouded to
prevent any exposure to participants. Complaints about the use of such light
sources will be followed by re-inspection and possible disablement of the
device.
R204
*Leave SCORING ELEMENTS at the FIELD.
ROBOTS must allow removal of SCORING ELEMENTS from the ROBOT and the ROBOT from
FIELD elements while DISABLED and powered off.
ROBOTS will not be re-enabled after the MATCH, so teams
must be sure that SCORING ELEMENTS and ROBOTS can be quickly, simply, and
safely removed.
Teams are encouraged to consider G501 when developing their
ROBOTS.
R205
*Don’t contaminate the FIELD.
Lubricants may be used only to reduce friction within the ROBOT. Lubricants
must not contaminate the FIELD or other ROBOTS.
R206
*Don’t damage SCORING ELEMENTS.
ROBOT elements likely to come in contact with a SCORING ELEMENT shall not pose
a significant hazard to the SCORING ELEMENT.
SCORING ELEMENTS are expected to undergo a reasonable
amount of wear and tear as they are handled by ROBOTS, such as scratching or
marking. Gouging, tearing off pieces, or routinely marking SCORING ELEMENTS are
violations of this rule.
R301
*Individual item cost limit.
No individual, non-KOP item or software shall have a Fair Market Value (FMV)
that exceeds $600 USD. The total cost of COMPONENTS purchased in bulk may
exceed $600 USD as long as the cost of an individual COMPONENT does not exceed
$600 USD.
Teams should be ready to show INSPECTORS documentation of
FMV for any COMPONENTS that appear to be in the range of the $600 USD limit.
The Analog Devices IMU MXP Breakout Board, P/N ADIS16448,
does not have a published FMV. This device is considered to comply with this
rule regardless of its true FMV.
The FMV of a COTS item is its price defined by a VENDOR for
the part or an identical functional replacement. This price must be generally
available to all FIRST Robotics Competition teams throughout the build
and competition season (i.e. short-term sale prices or coupons do not reflect
FMV), however teams are only expected to make a good faith effort at
determining the item price and are not expected to monitor prices of ROBOT
items throughout the season. The FMV is the cost of the item itself and does
not include any duties, taxes, tariffs, shipping, or other costs that may vary
by locality.
The FMV of COTS software is the price, set by the VENDOR,
to license the software (or piece of the software) that runs on the ROBOT for
the period from Kickoff to the end of the FIRST Championship. The FMV of
software licensed free-of-cost, including through the Virtual KOP, for use on
the ROBOT is $0.
The FMV of FABRICATED parts is the value of the material
and/or labor, except for labor provided by team members (including sponsor
employees who are members of the team), members of other teams, and/or event
provided machine shops. Material costs are accounted for as the cost of any
purchasable quantity that can be used to make the individual part (i.e. the
purchasable raw material is larger than the FABRICATED part).
Example 1: A team orders a custom bracket made by a company
to the team's specification. The company’s material cost and normally charged
labor rate apply.
Example 2: A team receives a donated sensor. The company
would normally sell this item for $450 USD, which is therefore its FMV.
Example 3: A team purchases titanium tube stock for $400
USD and has it machined by a local machine shop. The machine shop is not
considered a team sponsor but donates 2 hours of expended labor anyway. The
team must include the estimated normal cost of the labor as if it were paid to
the machine shop and add it to the $400 USD.
Example 4: A team purchases titanium tube stock for $400
USD and has it machined by a local machine shop that is a recognized sponsor of
the team. If the machinists are considered members of the team, their labor
costs do not apply. The total applicable cost for the part would be $400 USD.
It is in the best interests of the teams and FIRST
to form relationships with as many organizations as possible. Recognizing
supporting companies as sponsors of, and members in, the team is encouraged,
even if the involvement of the sponsor is solely through the donation of
fabrication labor.
Example 5: A team purchases titanium tube stock for $400
USD and has it machined by another team. The total applicable cost for the part
would be $400 USD.
Example 6: A team purchases a widget at a garage sale or
online auction for $300, but it’s available for sale from a VENDOR for $700.
The FMV is $700.
If a COTS item is part of a modular system that can be
assembled in several possible configurations, then each individual module must
fit within the price constraints defined in this rule.
If the modules are designed to assemble into a single
configuration, and the assembly is functional in only that configuration, then
the total cost of the complete assembly including all modules must fit within
the price constraints defined in this rule.
In summary, if a VENDOR sells a system or a kit, a team
must use the entire system/kit FMV and not the value of its COMPONENT pieces.
Example 7: VENDOR A sells a gearbox that can be used with a
number of different gear sets, and can mate with 2 different motors they sell.
A team purchases the gearbox, a gear set, and a motor, then assembles them
together. Each part is treated separately for the purpose of determining FMV
since the purchased pieces can each be used in various configurations.
Example 8: VENDOR B sells a robotic arm assembly that a
team wants to use. However, it costs $630 USD, so they cannot use it. The
VENDOR sells the “hand”, “wrist”, and “arm” as separate assemblies, for $210
USD each. A team wishes to purchase the 3 items separately, then reassemble
them. This would not be legal, as they are really buying and using the entire
assembly, which has a Fair Market Value of $630 USD.
Example 9: VENDOR C sells a set of wheels or wheel modules
that are often used in groups of 4. The wheels or modules can be used in other
quantities or configurations. A team purchases 4 and uses them in the most
common configuration. Each part is treated separately for the purpose of
determining FMV, since the purchased pieces can be used in various
configurations.
R302 *MAJOR MECHANISM, from this year only. MAJOR
MECHANISMS, as defined in I101, created before Kickoff are not permitted.
Neither this rule nor the language in this blue box define
specific thresholds for how much of a MAJOR MECHANISM must be constructed after
Kickoff. This rule expects and requires the team’s honest assessment of whether
they built the MAJOR MECHANISMS of their ROBOT after Kickoff.
Attempts to exploit loopholes in the definition of MAJOR
MECHANISM in order to bypass this requirement are in the spirit of neither this
rule nor FIRST Robotics Competition. Examples of exploitation include:
A. Pre-assembling significant portions of a MAJOR MECHANISM
prior to Kickoff and attaching those assemblies together post-Kickoff
B. Removing a small COMPONENT of a MAJOR MECHANISM prior to
Kickoff such that it is no longer a MAJOR MECHANISM and replacing it after
Kickoff.
R303
*Create new designs and software,
unless they’re public. ROBOT software and designs created before Kickoff
are only permitted if the source files (complete information sufficient to
produce the design) are available publicly prior to Kickoff.
Example 1: A team realizes that the transmission designed
and built in the fall perfectly fits their need for a transmission to drive the
ROBOT arm. They build an exact copy of the transmission from the original
design plans and bolt it to the ROBOT. This would be prohibited, as the
transmission – although made during the competition season – was built from
detailed designs developed prior to Kickoff.
Example 2: A team developed an omni-directional drive
system for the 2019 competition. In July 2019 they refined and improved the
control software, written in C++, to add more precision and capabilities. They
decided to use a similar system for the REEFSCAPE competition. They copied
large sections of unmodified code over into the control software of the new ROBOT,
also written in C++. This would be a violation of the schedule constraint and
is not allowed.
Example 3: The same team decides to use LabVIEW as their
software environment for REEFSCAPE. Following Kickoff, they use the previously
developed C++ code as a reference for the algorithms and calculations required
to implement their omni-directional control solution. Because they developed
new LabVIEW code as they ported over their algorithms, this is permitted.
Example 4: A different team develops a similar solution
during the fall and plans to use the developed software on their competition ROBOT.
After completing the software, they post it in a generally accessible public
forum and make the code available to all teams. Because they have made their
software publicly available before Kickoff, they can use it on their ROBOT.
Example 5: A team develops a transmission prior to Kickoff.
After completing the project, they publish the CAD files on a generally
accessible public forum and make them available to all teams. Because they have
made the design publicly available before Kickoff, they can use the design to
create an identical transmission, fabricated after Kickoff, for use on their REEFSCAPE
ROBOT.
R304
*During an event, only work during
pit hours. During an event a team is attending (regardless of whether
the team is physically at the event location), the team may neither work on nor
practice with their ROBOT or ROBOT elements outside of the hours that pits are
open, with the following exceptions:
A.
OPERATOR CONSOLES, BUMPERS, battery assemblies (as described in R103-B),
B.
COTS items with minor modifications (attachment of connectors, assembly
of COTS items per manufacturer instructions, labeling or decoration, etc.)
C.
software development, and
D.
charging batteries.
For the purposes of this rule, official events begin as
follows:
-
Regionals, District Championships, and FIRST
Championship: at the start of the first designated load-in period, according to
the Public Schedule. If the Public Schedule is not available or there is no
designated load-in period, the events begin at 4pm on the day prior to pits
opening.
-
District Events: when pits open
Examples of activity prohibited by this rule include:
A. working on the ROBOT at the team’s shop after load-in for
the event has begun,
B. working on ROBOT parts at night at the team’s hotel, and
C. running a 3D printer or other automated manufacturing
process overnight producing ROBOT parts.
Note that E107 and E401 impose additional
restrictions on work done on the ROBOT or ROBOT materials while attending an
event.
This rule is intended to increase equity between teams with
significant travel to an event and those nearby (close teams would otherwise
have an advantage by being able to work on their ROBOT, in their shop, until
it’s time to go to the event).
8.4
BUMPER Rules
A BUMPER is a required assembly which
attaches to the ROBOT frame. BUMPERS protect ROBOTS from damaging/being damaged
by other ROBOTS and FIELD elements.
A BUMPER guide providing additional information on materials
and design based on historical best practices may be found under the Mechanical
Resources section of the Technical Resources page. Teams may also
reference the KitBot Instructions for a detailed step-by-step
on how to build bumpers for the KitBot.
All dimensions specified in this section are nominal and
will be measured during inspection with a tolerance of ¼ in. (~6 mm) unless
otherwise specified. This means that maximums specified have a tolerance of + ¼
in. and minimums specified have a tolerance of – ¼ in. Teams are encouraged to
design to the nominal dimension and reserve the tolerance for unexpected
deviation such as manufacturing error or tolerance stack-up.
R401 *BUMPERS all around. ROBOTS are required to use
BUMPERS to protect the entire ROBOT PERIMETER. Gaps of
less than 1 ¼ in. (~31 mm) between adjacent segments are permitted as long as
all corners are filled per R406.
Figure 8‑3 BUMPER coverage requirements
R402
*BUMPER construction. BUMPERS
must consist of the following:
A.
Padding – A minimum of 2 ¼ in. (~58 mm) depth of foam padding, at least
4 ½ in. (~114 mm) tall consisting of solid blocks, sheets, or stacked rods of
one or more of the following materials:
i.
Pool noodles (hollow or solid) or backer rod
ii.
Solid polyethylene closed cell foam with density between 1.5 and 3
lb./ft.3 (~24 to 48 kg/m3)
iii.
Solid EVA closed cell foam with density between 2 and 6 lb./ft.3
(~32 to 96 kg/m3)
iv.
Foam floor tiles
Multiple types,
shapes, and/or layers of foam may be used within a single BUMPER.
Teams should be prepared to provide information about the
padding material used in their BUMPERS. Teams do not need to have a separate
material sample or expose padding for direct inspection to show compliance with
this rule.
B.
Backing – A backer at least 4 ½ in. (~115 mm) tall which supports the
padding (i.e. padding is not cantilevered other than in corners) and
facilitates installation and removal of the BUMPER from the ROBOT (as noted in R410). Additional elements may be added to
strengthen the backing, fill space between the BUMPER and ROBOT frame, or serve
as part of the attachment system.
Figure 8‑4 BUMPER
backing supporting padding (cross section)
C.
Cover – Cloth (as noted in R411) which covers all outward, upward and downward
facing surfaces of padding such that no padding is exposed to interaction with
the FIELD or other ROBOTs.
D.
Fastening System – BUMPERS must attach to the ROBOT PERIMETER with a
rigid fastening system to form a tight, robust connection to the main
structure/frame (e.g. not attached with hook-and-loop tape, tape, or cable
ties). The fastening system must be designed to withstand vigorous game play.
All removable fasteners (e.g. bolts, locking pins, quick release pins, etc.)
may be considered part of either the BUMPERS or ROBOT for determination of
weight per R103 and R408.
The BUMPER Rules provide teams significant freedom in
choosing designs and materials. For information on a reference design, see the
Bumper Guide under the Mechanical Resources section of the Technical Resources page.
Figure 8‑5 BUMPER Cross Section Example
R403 *BUMPER extension limit. BUMPERS must not extend more than 4 in. (~101 mm)
from the ROBOT PERIMETER.
R404
*BUMPERS must be soft. Hard
parts of BUMPERS must not extend more than 1 ¼ in. (~31 mm) from the ROBOT
PERIMETER. Only padding (per R402-A),
cover (per R402-C,
including any coatings or markings), and soft fasteners used to secure padding
or cover are permitted beyond this limit. Padding must extend at least 2 in.
(~51 mm) beyond any hard parts of the BUMPER.
Hard parts include any items which are likely to cause
damage to the cloth or padding of other BUMPERS such as nuts and bolts, cable
ties, hard plastics, etc.
R405
*BUMPERS interact with BUMPERS.
All BUMPERS must have padding (per R402-A) supported
by backing (per R402-B) entirely
filling the BUMPER ZONE, a space between 2 ½ in. (~63 mm)
and 5 ¾ in. (~146 mm) from the floor.
Figure 8‑6 BUMPER ZONE examples
This measurement is intended to be made as if the ROBOT is
resting on a flat floor (without changing the ROBOT configuration), not
relative to the current height of the ROBOT from the FIELD carpet at any given
time. Examples include:
Example 1: A ROBOT that is at an angle while navigating the
FIELD has its BUMPERS outside the BUMPER ZONE. If this ROBOT were virtually
transposed onto a flat floor, and its BUMPERS are in the BUMPER ZONE, it meets
the requirements of this rule.
Example 2: A ROBOT deploys a MECHANISM which lifts the
BUMPERS outside the BUMPER ZONE (when virtually transposed onto a flat floor).
This violates this rule.
R406
*Fill BUMPER corners. Corner joints between
BUMPERS must be filled with uncompressed padding material extending at least 2
¼ in. (~58 mm) from the corner with no gaps or voids. Examples of
implementation are shown in Figure 8‑7.
Figure 8‑7 Uncompressed corner padding
Examples that do not meet the requirements of R406:
A. Foam cylinders or sheets bent around a sharp corner (less
than 135°) are considered compressed.
B. Separate bumper segments meeting at a miter in the corner
are not considered to “fill” the corner due to the cloth covering.
R407
*BUMPERS shouldn’t be wedges. BUMPERS
must not act as wedges when interacting with other BUMPERS.
Examples of BUMPERS which
act as a wedge include:
A. BUMPERS utilizing softer foam towards the top of a BUMPER
profile
B. BUMPERS utilizing excessively rounded profiles such as a
single semi-circle
C. BUMPERS with tapered or stepped padding such that the
padding is thinner or thicker towards the top or bottom
R408
*Weight limit with BUMPERS. The
total weight of the ROBOT (as described in R103) with BUMPERS must not exceed 135 lbs. (~61
kg)
R409
*BUMPERS shouldn’t move. BUMPERS
must not be articulated, relative to the ROBOT PERIMETER.
R410
*BUMPERS must come off. BUMPERS
must be designed for installation and removal to facilitate inspection and
weighing.
As a guideline, BUMPERS should be able to be installed or
removed by 2 people in fewer than 5 minutes.
R411
*BUMPERS indicate your ALLIANCE.
Each ROBOT must be able to display red or blue BUMPER covers to reflect their ALLIANCE
color, as assigned in the MATCH schedule distributed at the event (as described
in section 10.1 MATCH Schedules). Contrasting markings on outward,
upward, or downward facing surfaces of the BUMPER cover, other than the
following, are prohibited:
A.
those required per R412,
B.
hook-and-loop tape, snap fasteners, or functional equivalents backed by
the hard parts of the BUMPER,
C.
solid white FIRST logos between 4¾ in. (~121 mm) and 5¼ in. wide
(~133 mm) (i.e. comparable to those available in the REEFSCAPE Virtual Kit),
and
D.
narrow areas of underlying cloth exposed at seams, corners, or folds.
R412 *Team number on BUMPERS. Team numbers must be
displayed and positioned on the BUMPER cover such that an observer walking
around the perimeter of the ROBOT can unambiguously tell the team’s number from
any point of view, from as far as approximately 60 ft. (1 829 cm), and meet the
following additional criteria:
A.
consist of only white Arabic numerals at least 3 ¾ in. (~96 mm) high, at
least ½ in. (~13 mm) in stroke width,
The ½ in. (~13 mm) stroke width requirement applies to the
majority of the stroke. Font elements less than ½ in. (~13 mm) such as serifs,
rounded edges, small hairlines or gaps, etc. are permitted as long as the
majority of the stroke meets the sizing requirement and the numbers are
unambiguous.
B.
must not wrap around sharp corners (less than 135°) of the ROBOT PERIMETER,
C.
must not split individual digits such that the team number is ambiguous,
and
As a guideline, spacing between digits or groups of digits
which exceeds ~4 in. (~101 mm) may be ambiguous.
D.
may not substitute logos or icons for numerals.
There is no prohibition against
splitting team numbers onto different sections of BUMPER. The intent is that
the team’s number is clearly visible and unambiguous so that Judges, REFEREES,
Announcers, and other teams can easily identify competing ROBOTS.
This marking is intended to display the
team number only, not to intentionally change the surface characteristics of
the BUMPER. Excessive material usage as part of any team number marking will
invite close scrutiny.
R501
*Allowable motors. The
only motors and actuators permitted include the following (in any quantity):
Table 8‑1 Motor allowances
|
Motor Name
|
Part Numbers Available
|
|
AndyMark 9015
|
am-0912
|
AndyMark 9015
|
|
AndyMark NeveRest
|
am-3104
|
|
|
AndyMark PG
|
am-2161 (alt. PN am-2765)
|
am-2194 (alt. PN am-2766)
|
|
AndyMark RedLine Motor
|
am-3775
|
am-3775a
|
|
AndyMark Snow Blower Motor
|
am-2235
|
am-2235a
|
|
Banebots
|
am-3830
M7-RS775-18
RS775WC-8514
|
M5 – RS550-12
RS550VC-7527
RS550
|
|
CIM
|
FR801-001
M4-R0062-12
AM802-001A
217-2000
PM25R-44F-1005
|
PM25R-45F-1004
PM25R-45F-1003
PMR25R-45F-1003
PMR25R-44F-1005
am-0255
|
|
CTR Electronics Minion
|
24-777378
|
WCP-1691
|
|
CTR Electronics/VEX Robotics
Falcon 500
|
217-6515
am-6515
|
19-708850
am-6515_Short
|
|
Current/former KOP automotive motors
|
Denso AE235100-0160
Denso 5-163800-RC1
Denso 262100-3030
|
Denso 262100-3040
Bosch 6 004 RA3 194-06
Johnson Electric JE-PLG-149
Johnson Electric JE-PLG-410
|
|
Nidec Dynamo BLDC Motor
|
am-3740
|
DM3012-1063
|
|
Playing with Fusion Venom
|
BDC-10001
|
|
|
REV Robotics HD Hex
|
REV-41-1291
|
|
|
REV Robotics NEO Brushless
|
REV-21-1650 (v1.0 or v1.1)
|
am-4258
am-4258a
|
|
REV Robotics
NEO 550
|
REV-21-1651
|
am-4259
|
|
REV Robotics NEO Vortex
|
REV-21-1652
|
am-5275
|
|
VEX BAG
|
217-3351
|
|
|
VEX Mini-CIM
|
217-3371
|
|
|
West Coast Products Kraken x44
|
WCP-0941
|
|
|
West Coast Products Kraken x60
|
WCP-0940
|
am-5274
|
|
West Coast Products RS775 Pro
|
217-4347
|
|
|
Fans, no greater than 120mm (nominal) size and rated
electrical input power no greater than 10 watts (W) continuous duty at 12
volts (VDC)
|
|
Hard drive motors part of a legal COTS computing
device
|
|
Factory installed vibration and autofocus motors
resident in COTS computing devices (e.g. rumble motor in a smartphone).
|
|
PWM COTS rotational servos with
stall current ≤ 4A and mechanical output power ≤ 8W at 6V. PWM COTS linear
servos with max stall current ≤ 1A at 6V.
|
|
Motors integral to a COTS sensor (e.g. LIDAR, scanning sonar, etc.), provided the
device is not modified except to facilitate mounting
|
|
1 compressor compliant with R806 and used to compress air
for the ROBOT’S pneumatic system
|
|
COTS linear actuators,
electrical solenoid actuators, or electromagnets rated for 12V and wired
downstream of a breaker 20A or less. Electrical solenoid actuators or
electromagnets used at 24V must be rated for 24V.
|
For servos, note that the roboRIO is limited to a max
current output of 2.2A on the 6V rail (12.4W of electrical input power). Teams
should make sure that their total servo power usage remains below this limit at
all times.
Servo mechanical output power is approximated by the
following formula (using 6V data reported by manufacturer): Mechanical Output
Power (in W) = 0.25 x (Stall Torque in N-m) x (No Load Speed in rad/s). This calculator from the FIRST Tech Challenge
documentation can be used to help calculate output power from inputs
of various units.
Given the extensive amount of motors allowed on the ROBOT,
teams are encouraged to consider the total power available from the ROBOT
battery during the design and build of the ROBOT. Drawing large amounts of
current from many motors at the same time could lead to drops in ROBOT battery
voltage that may result in tripping the main breaker or trigger the brownout
protection of the roboRIO. For more information about the roboRIO brownout
protection and measuring current draw using the PDP/PDH, see roboRIO Brownout and Understanding Current Draw.
AndyMark PG Gearmotors are sold with labeling based on the
entire assembly. Assemblies labeled am-3651 through am-3656 contain legal
motors specified in Table 8‑1. These motors
may be used with or without the provided gearbox.
R502
*Only 4 propulsion motors. A
ROBOT may not have more than 4 propulsion motors. A propulsion motor is a motor
that enables the ROBOT to move around the FIELD surface. Motors that generate
small amounts of thrust as a secondary or incidental feature are not considered
propulsion motors.
Examples
that are not considered propulsion
motors include:
A. motors that primarily alter the alignment of a wheel in
contact with the FIELD surface (such as a swerve steering motor),
B. motors that run MECHANISM wheels (e.g. for CORAL
manipulation) that occasionally happen to contact the carpet, but without
enough force to generate significant thrust, and
C. motors that change the speed of the drive wheels using a
shifting MECHANISM without significantly contributing to propulsion.
R503
*Don’t modify motors (mostly).
The integral mechanical and electrical system of any motor must not be
modified. Motors, servos, and electric solenoids used on the ROBOT shall not be
modified in any way, except as follows:
A.
The mounting brackets and/or output shaft/interface may be modified to
facilitate the physical connection of the motor to the ROBOT and actuated part.
B.
The electrical leads may be trimmed to length as necessary and
connectors or splices to additional wiring may be added.
C.
The locking pins on the window motors (P/N 262100-3030 and 262100-3040)
may be removed.
D.
The connector housings on KOP automotive motors listed in Table 8‑1 may be modified to facilitate lead
connections.
E.
Servos may be modified as specified by the manufacturer (e.g.
re-programming or modification for continuous rotation).
F.
The wiring harness of the Nidec Dynamo BLDC Motor may be modified as
documented by FIRST in Nidec Dynamo BLDC Motor with Controller.
G.
Minimal labeling may be applied to indicate device purpose,
connectivity, functional performance, etc.
H.
Any number of #10-32 plug screws may be removed from the Falcon 500 and
the Kraken X60.
I.
Insulation may be applied to electrical terminals.
J.
Repairs, provided the original performance and specifications are
unchanged.
K.
Maintenance recommended by the manufacturer.
The intent of this rule is to allow teams to modify
mounting tabs and the like, not to gain a weight reduction by potentially
compromising the structural integrity of any motor.
R504
*Power (most) actuators off of
approved devices. With the exception of servos, fans, or motors integral
to sensors of COTS computing devices permitted in R501, each actuator must be controlled by a power
regulating device. The only power regulating devices for actuators permitted on
the ROBOT include:
A.
motor controllers:
a. DMC
60/DMC 60c Motor Controller (P/N 410-334-1, 410-334-2),
b. Jaguar
Motor Controller (P/N MDL-BDC, MDL-BDC24, and 217-3367) connected to PWM only,
c. Koors40
Motor Controller (P/N am-5600),
d. Nidec
Dynamo, BLDC Motor with Controller to control integral actuator only (P/N
840205-000, am-3740)
e. SD540
Motor Controller (P/N SD540x1, SD540x2, SD540x4, SD540Bx1, SD540Bx2, SD540Bx4,
SD540C),
f.
Spark Flex Motor Controller (P/N REV-11-2159, am-5276)
g. Spark
Motor Controller (P/N REV-11-1200, am-4260),
h. Spark
MAX Motor Controller (P/N REV-11-2158, am-4261),
i.
Talon FX Motor Controller (P/N 217-6515, 19-708850, am-6515, am-6515_Short,
WCP-0940, WCP-0941) for controlling integral Falcon 500, Kraken X60, Kraken X44
only,
j.
Talon FXS Motor Controller (P/N 24-708883, WCP-1692)
k. Talon
Motor Controller (P/N CTRE_Talon, CTRE_Talon_SR, and am-2195),
l.
Talon SRX Motor Controller (P/N 217-8080, am-2854, 14-838288),
m. Thrifty Nova
(P/N TTB-0100),
n. Venom
Motor with Controller (P/N BDC-10001) for controlling integral motor only,
o. Victor
884 Motor Controller (P/N VICTOR-884-12/12),
p. Victor
888 Motor Controller (P/N 217-2769),
q. Victor
SP Motor Controller (P/N 217-9090, am-2855, 14-868380), and
r.
Victor SPX Motor Controller (P/N 217-9191, 17-868388, am-3748).
B. relay
modules:
a. Spike
H-Bridge Relay (P/N 217-0220 and SPIKE-RELAY-H),
b. Automation
Direct Relay (P/N AD-SSR6M12-DC-200D, AD-SSRM6M25-DC-200D, AD-SSR6M40-DC-200D),
and
c. Power
Distribution Hub (PDH) switched channel (P/N REV-11-1850) for controlling
non-actuator CUSTOM CIRCUITS only.
C.
pneumatics controllers:
a. Pneumatics
Control Module (P/N am-2858, 217-4243) and
b. Pneumatic
Hub (P/N REV-11-1852).
D.
servo controllers:
a. Servo
Hub (P/N REV-11-1855)
Note: The Automation Direct Relays are single directional.
Per R504 they may not be
wired together in an attempt to provide bi-directional control.
R505
*Don’t overload controllers.
Each power regulating device may control electrical loads per Table 8‑2. Unless otherwise noted, each power
regulating device shall control 1 and only 1 electrical load.
Table 8‑2 Power regulating device allotments
|
Electrical
Load
|
Motor Controller
|
Relay Module
|
Pneumatics Controller
|
|
AndyMark RedLine Motor
Banebots
CIM
CTR Electronics Minion
REV Robotics NEO Brushless
REV Robotics NEO 550
REV Robotics NEO Vortex
VEX Mini-CIM
WCP RS775 Pro
|
Yes
|
No
|
No
|
|
AndyMark 9015
VEXpro BAG
|
Yes
(up to 2 per controller)
|
No
|
No
|
|
AndyMark PG
KOP Automotive Motors
NeveRest
Snow Blower Motor
REV Robotics HD Hex
|
Yes
(up to 2 per controller)
|
Yes
|
No
|
|
Linear Actuator
|
Yes
(20A breaker max)
|
Yes
(20A breaker max)
|
No
|
|
CTR Electronics/VEX Falcon 500
Nidec Dynamo BLDC Motor w/
Controller
Playing With Fusion Venom
WCP Kraken X44
WCP Kraken X60
|
Yes
(integrated controller only)
|
No
|
No
|
|
Compressor
|
No
|
Yes
|
Yes
|
|
Pneumatic Solenoid Valves
|
No
|
Yes
(multiple)
|
Yes
(1 per channel)
|
|
Electric Solenoids
|
Yes
(multiple)
|
Yes
(multiple)
|
Yes
(1 per channel)
|
|
CUSTOM CIRCUITS
|
Yes
(multiple)
|
Yes
(multiple)
|
Yes
(multiple)
|
R506
*Control servos safely. Servos
must be connected to, and only to, 1 of the following:
A.
PWM ports on the roboRIO,
B.
PWM ports on a WCP Spartan Sensor Board (P/N WCP-0045),
C.
REV Robotics Servo Power Module (P/N REV-11-1144),
D.
REV Robotics Servo Hub (P/N REV-11-1855)
In order to maintain safety, the rules in this section apply
at all times while at the event, not just while the ROBOT is on the FIELD for MATCHES.
R601
*Battery limit – everyone has the
same power. The only legal source of electrical energy for the ROBOT
during the competition, the ROBOT battery, must be 1 and only 1 non-spillable
sealed lead acid (SLA) battery with the following specifications:
A.
Nominal voltage: 12V
B.
Nominal capacity at 20-hour discharge rate: minimum 17Ah, maximum 18.2Ah
C.
Shape: Rectangular
D.
Nominal Dimensions: 7.1 in. x 3 in. x 6.6 in., +/- .1 in. for each
dimension (~ 180 mm x 76mm x 168 mm, +/- 2.5 mm for each dimension)
E.
Nominal weight: 11lbs. to 14.5 lbs. (~5 kg. to 6.5 kg.)
F.
Terminals: Nut and bolt style
"Nut and bolt style" refers to any style battery
terminal where the connector is secured to the battery using a threaded
fastener.
Examples of batteries which meet these criteria include:
A. Enersys (P/N NP18-12, NP18-12B, NP18-12BFR),
B. MK Battery (P/N ES17-12),
C. Battery Mart (P/N SLA-12V18),
D. Sigma (P/N SP12-18),
E. Universal Battery (P/N UB12180),
F. Power Patrol (P/N SLA1116),
G. Werker Battery (P/N WKA12-18NB),
H. Power Sonic (P/N PS-12180NB),
I.
Yuasa (P/N NP18-12B),
J. Panasonic (P/N LC-RD-1217),
K. Interstate Batteries (P/N BSL1116), and
L.
Duracell Ultra Battery (P/N
DURA12-18NB).
Teams should be aware that they may be asked to provide
documentation of the specifications of any battery not listed above.
Batteries should be charged in accordance with
manufacturer’s specification. (Please see the FIRST Safety
Manual for additional information.)
R602
*Other batteries for cameras or
computers only. COTS USB battery packs with a capacity of 100Wh or less
(27000mAh at 3.7V) with 5V/5A max output or 12V/5A max output using USB-PD per
port, batteries integral to and part of a COTS computing device or
self-contained camera (e.g. laptop batteries, GoPro style camera, etc.), or
batteries used to power CMOS/RTC features may be used to power COTS computing
devices and any peripheral COTS input or output devices connected to the COTS
computing device provided they are:
A.
securely fastened to the ROBOT,
B.
connected only using unmodified COTS cables, and
C.
charged according to manufacturer recommendations.
A COTS computing device is a non-roboRIO device used to
process or collect sensor information (e.g. a “smart flashlight” is not a COTS
computing device).
R603
*Charge batteries with safe
connectors. Any battery charger used to charge a ROBOT battery must have
the corresponding Anderson SB connector installed.
R604
*Charge batteries at a safe rate.
Any battery charger used to charge a ROBOT battery may not be used such that it
exceeds 6-Amp average charge current.
R605
*Batteries are not ballast. No
batteries other than those allowed per R601 and R602 are allowed on the ROBOT, whether or not they
are being used to supply power.
For example, teams may not use additional batteries as
extra weight on their ROBOTS.
R606
*Secure the battery. The ROBOT
battery must be secured such that it will not dislodge during vigorous ROBOT
interaction including if the ROBOT is turned over or placed in any arbitrary
orientation.
R607
*Insulate battery connections.
Each electrical terminal on the ROBOT battery, main breaker, and their
connections (lugs, stripped wire ends, etc.) to the wire must be fully
insulated at all times.
R608
*Limit non-battery energy.
Non-electrical sources of energy used by the ROBOT (i.e., stored at the start
of a MATCH) shall come only from the following sources:
A.
compressed air stored in the pneumatic system that has been charged in
compliance with R806
and R807,
B.
a change in the altitude of the ROBOT center of gravity,
C.
storage achieved by deformation of ROBOT parts,
D.
closed-loop COTS pneumatic (gas) shocks, or
E.
air-filled (pneumatic) wheels.
R609
*Connect main power safely.
The following devices shall be connected with 6 AWG (7 SWG or 16 mm2) copper
wire or larger as shown in Figure 8‑8:
A.
1 ROBOT battery,
B.
a single pair of Anderson Power Products (or APP) 2-pole SB type
connectors,
C.
the 1 main 120-Amp (120A) surface mount circuit breaker (Cooper Bussman
P/N CB185-120, CB185F-120, CB285-120 CB285F-120, CB285120F or Optifuse P/N
153120, 253120), and
D.
the 1 power distribution device (CTR Electronics Power
Distribution Panel, PDP or PDP 2.0, P/N am-2856, 217-4244, 14-806880, 24-806880
or REV Robotics Power Distribution Hub, PDH, P/N REV-11-1850)
No additional devices or modifications shall
be permitted with the following exceptions:
E.
Monitoring circuitry permitted by R625.
F.
SB-50 to SB-120 adapters, provided they have been presented for
Inspection
G.
Termination of wires with appropriate cable lugs
Figure 8‑8 Electrical connection diagram
“SB type” refers to SB type only (e.g. SB-50, SB-120,
etc.), not SBS or any other part type beginning with SB. All batteries supplied
by FIRST (such as Spare Parts and international batteries) will have a
red or pink SB50 connector installed which may not be removed.
The pink connectors included in the KOP mate with the red
SB50 connector.
R610
*1 breaker/fuse per circuit.
All circuits, with the exceptions of those listed in R615 and R617, must connect to, and have power sourced
solely by, a single protected 12VDC WAGO connector pair of the PDP/PDP2.0/PDH,
not the M6 cap screws.
R611
*The ROBOT frame is not a wire.
All wiring and electrical devices shall be electrically isolated from the ROBOT
frame. The ROBOT frame must not be used to carry electrical current.
Compliance with this rule is checked by observing a
>120Ω resistance between either the (+) or (-) post within the APP connector
that is attached to the PDP/PDP2.0/PDH and any point on the ROBOT.
All legal motor controllers with metal cases are
electrically isolated. They may be mounted directly to ROBOT frame COMPONENTS.
Note that some cameras, decorative lights, and sensors
(e.g. some encoders, some IR sensors, etc.) have grounded enclosures or are
manufactured with conductive plastics. These devices must be electrically
isolated from the ROBOT frame to ensure compliance with this rule.
R612
*Must be able to turn ROBOT on and
off safely. The 120A circuit breaker must be quickly and safely
accessible from the exterior of the ROBOT. This is the only 120A circuit
breaker allowed on the ROBOT.
Examples considered not “quickly and safely accessible”
include breakers covered by an access panel or door, or mounted on, underneath
or immediately adjacent to moving COMPONENTS.
It is strongly recommended that the 120A circuit breaker
location be clearly and obviously labeled so it can be easily found by FIELD
STAFF if needed.
While the main breaker must be accessible, consider positioning
or shielding it such that it’s protected from accidental actuation (e.g. it’s
unlikely to be hit by a SCORING ELEMENT during game play).
R613
*Electrical system must be
inspectable. The PDP/PDP2.0/PDH, associated wiring, and all circuit
breakers must be visible for inspection.
“Visible for inspection” does not require that the items be
visible when the ROBOT is in STARTING CONFIGURATION, provided the team can make
the items viewable during the inspection process.
R614
*No high voltage allowed. Any active electrical item that is not an actuator
(specified in R501) or core control system item (specified in R710) is considered a CUSTOM CIRCUIT. CUSTOM
CIRCUITS shall not produce measurable voltages exceeding 24V with the exception
of COTS Power-over-Ethernet (PoE) injector devices used with COTS Ethernet
cables and COTS receiving devices (i.e. not a breakout or adapter).
R615 *Power roboRIO as specified. The roboRIO power
input must be connected to either:
A.
the dedicated supply terminals on the PDP shown in Figure 8‑9 or
Figure 8‑9 roboRIO power source on a PDP
B.
the terminals of 1 of the non-switchable fused channels on the PDH
(20,21,22) with a 10A fuse or circuit breaker installed in the associated fuse
holder, or
Figure 8‑10 roboRIO power source on a PDH
C.
directly to the terminals of any single channel on the PDP 2.0 with a
10A fuse or circuit breaker installed in the associated fuse holder.
Figure 8‑11 roboRIO power source on a PDP 2.0
R616 *Power radio as specified – Part 1. The
wireless bridge (radio) power must be supplied by either:
A.
the 12V 2A output of a CTR Electronics Voltage Regulator
Module (VRM) (P/N am-2857, 217-4245), as shown in Figure 8‑12, and must be the only load connected to
those terminals or
Figure 8‑12
Radio power source from a VRM
B.
using an Ethernet cable between a REV Radio Power Module
(RPM) (P/N REV-11-1856) and the “RIO” Ethernet port on the wireless bridge (or
the 18-24v PoE port for events using OM5P radios), or
C.
directly from the PDP/PDP2.0/PDH ports described in R617 (this option is not permitted for OM5P radios)
Note that this prohibits using any other active PoE
injector device to power the radio but does not prohibit using any PASSIVE
CONDUCTORS to inject the VRM or direct PDP/PDP2.0/PDH power into an Ethernet
cable plugged into the radio port labeled “RIO.”
The use of a VRM or RPM to power the VH-109 radio is
permitted in 2025 to allow transition to the new radio. In 2026 the radio will
be required to be wired directly to the PDP/PDP2.0/PDH.
R617 *Power radio as specified – Part 2. The device
supplying power to the wireless bridge per R616 must be
connected to either:
A.
the designated supply terminals at the end of the PDP, as shown in Figure 8‑13. With the exception of a single CTR
Electronics Pneumatics Control Module (PCM, P/N am-2858) or REV
Robotics Pneumatic Hub (PH, P/N REV-11-1852), no other
electrical load shall be connected to these PDP terminals,
Figure 8‑13
VRM, PCM, RPM, and Radio power source on a PDP
B.
the terminals of the non-switchable fused channels on the PDH (20,21,22)
with a 10A fuse or circuit breaker installed in the associated fuse holder. No
other electrical load shall be connected to that channel, or
Figure 8‑14 VRM/RPM/Radio power source on a PDH
C.
directly to the terminals of any channel on the PDP 2.0 with a 10A fuse
or circuit breaker installed in the associated fuse holder.
Figure 8‑15 VRM/RPM/Radio power source on a PDP 2.0
R618
*Use PDP/PDP2.0/PDH terminals as
designed. Only 1 wire shall be connected to each terminal on the PDP/PDP2.0/PDH.
If multi-point distribution of circuit power is needed
(e.g. to provide power to multiple PCMs and/or VRMs from 1 20A circuit), then
all incoming wires may be appropriately spliced into the main lead (e.g. using
an insulated terminal block, crimped splice or soldered wire splice), and the
single main lead inserted into the terminal to power the circuit.
R619
*Only use specified circuit breakers
in PDP/PDP2.0/PDH. The only circuit breakers permitted for use in the
PDP/PDP2.0/PDH are:
A.
Snap Action VB3-A Series or AT2-A, terminal style F57, 40A rating or
lower,
B.
Snap Action MX5-A or MX5-L Series, 40A rating or lower,
C.
REV Robotics ATO auto-resetting breakers 40A rating or lower,
D.
Any ATM circuit breaker with value less than or equal to the fuses
permitted per R620.
R620
*Only use specified fuses in PDP/PDP2.0/PDH.
The only fuses permitted for use in the PDP/PDP2.0/PDH are automotive blade
fuses with the following values:
A.
for the PDP, ATM style fuses with values matching the value printed on
the device’s corresponding fuse holder,
B.
for the PDP 2.0, ATC/ATO style fuses with values 10A or lower, and
C.
for the PDH, ATM style fuses with values 15A or lower with the exception
of a single 20A fuse for powering a PCM or PH.
Note that these fuses must be pressed very firmly to seat
properly. Improper seating can cause a device to reboot upon impact.
R621
*Protect circuits with
appropriate circuit breakers. Each branch circuit must be protected by 1
and only 1 circuit breaker or fuse on the PDP/PDP2.0/PDH per Table 8‑3. No other electrical load can be connected
to the breaker or fuse supplying this circuit with the exception of devices
downstream of a Kraken X60 Powerpole adapter board (WCP-1380, RF-4003).
Table 8‑3 Branch circuit protection
requirements
|
Branch
Circuit
|
Circuit
Breaker/Fuse Value
|
Quantity
Allowed Per Breaker
|
|
Motor Controller
|
Up to 40A
|
1
|
|
CUSTOM CIRCUIT
|
Up to 40A
|
No limit
|
|
Automation Direct Relay 40A
(*6M40*)
|
Up to 40A
|
1
|
|
Fans permitted per R501 and not
already part of COTS computing devices.
|
Up to 20A
|
No limit
|
|
Spike Relay Module
|
Up to 20A
|
1
|
|
Automation Direct Relay 25A
(*6M25*)
|
Up to 20A
|
1
|
|
PCM/PH – with compressor
|
Up to 20A
|
1
|
|
Servo Power Module/Servo
Hub
|
Up to 20A
|
1
|
|
Additional VRM
(non-radio)/Additional PCM/PH (non-compressor)
|
Up to 20A
|
3 total
|
|
Automation Direct Relay 12A
(*6M12*)
|
Up to 10A
|
1
|
This rule does not prohibit the use of smaller value
breakers in the PDP/PDP2.0/PDH or any fuses or breakers within CUSTOM CIRCUITS
for additional protection.
Fans permitted per R501 may also be included
within CUSTOM CIRCUITS.
R622
*Use appropriately sized wire.
All circuits shall be wired with appropriately sized insulated copper wire
(SIGNAL LEVEL cables don’t have to be copper):
Table 8‑4 Breaker and wire sizing
|
Application
|
Minimum
Wire Size
|
|
31 – 40A breaker protected
circuit
|
12 AWG
(13 SWG or 4 mm2)
|
|
21 – 30A breaker protected
circuit
|
14 AWG
(16 SWG or 2.5 mm2)
|
|
6 – 20A breaker protected
circuit
|
18 AWG
(19 SWG or 1 mm2)
|
|
11-20A fuse protected
circuit
|
|
Between the PDP dedicated
terminals and the VRM/RPM or PCM/PH
|
|
Compressor outputs from the
PCM/PH
|
|
Between the PDH and PCM/PH
|
|
Between the PDP/PDP2.0/PDH
and the roboRIO
|
22 AWG
(22 SWG or 0.5 mm2)
|
|
Between the PDH and VRM/RPM
|
|
Kraken x60 Powerpole
Adapter protected circuit
|
|
≤5A breaker protected circuit
|
|
≤10A fuse protected circuit
|
|
VRM 2A circuits
≤2A fuse protected circuit
VH-109 Passthrough per R626
|
24 AWG
(24 SWG or .25 mm2)
Cat5e/6/7/8 cable, 2 pairs
|
|
roboRIO PWM port outputs
≤1A fuse protected circuit
|
26 AWG
(27 SWG or 0.14 mm2)
Cat5e/6/7/8 cable, single pair
|
|
SIGNAL LEVEL circuits (i.e.
circuits which draw ≤1A continuous and have a source
incapable of delivering >1A, including but not limited to roboRIO non-PWM
outputs, CAN signals, PCM/PH Solenoid outputs, VRM 500mA outputs, RPM
outputs, and Arduino outputs)
|
28 AWG
(29 SWG or .08 mm2)
|
Wires that are recommended by the device
manufacturer or originally attached to legal devices are considered part of the
device and by default legal. Such wires are exempt from this rule, provided
they are powered by the smallest value fuse or breaker which permits proper
device operation.
In order to show compliance with these rules, teams should
use wire with clearly labeled sizes if possible. If unlabeled wiring is used,
teams should be prepared to demonstrate that the wire used meets the
requirements of this rule (e.g. wire samples and evidence that they are the
required size).
R623
*Use only appropriate connectors.
Branch circuits may include intermediate elements such as COTS connectors,
splices, COTS flexible/rolling/sliding contacts, and COTS slip rings, as long
as the entire electrical pathway is via appropriately gauged/rated elements.
Slip rings containing mercury are prohibited per R203.
R624
*Use specified wire colors (mostly).
All non-SIGNAL LEVEL wiring with a constant polarity (i.e., except for outputs
of relay modules, motor controllers, or sensors) shall be color-coded along
their entire length from the manufacturer as follows:
A.
red, yellow, white, brown, or black-with-stripe on the positive (e.g.
+24VDC, +12VDC, +5VDC, etc.) connections
B.
black or blue for the common or negative side (-) of the connections
Exceptions to this rule include:
C.
wires that are originally attached to legal devices and any extensions
to these wires using the same color as the manufacturer
D.
Ethernet cable used in PoE cables
R625
*Don’t modify critical power paths.
CUSTOM CIRCUITS shall not directly alter the power pathways between the ROBOT
battery, PDP/PDP2.0/PDH, motor controllers, relays (per R504-B), motors
and actuators (per R501), pneumatic solenoid valves, or other
elements of the ROBOT control system (items explicitly mentioned in R710). Custom high impedance voltage monitoring or
low impedance current monitoring circuitry connected to the ROBOT’S electrical
system is acceptable, if the effect on the ROBOT outputs is inconsequential.
A noise filter may be wired across motor leads or PWM
leads. Such filters will not be considered CUSTOM CIRCUITS and violate neither
this rule nor R712.
Acceptable signal filters must be fully insulated and must
be 1 of the following:
-
1 microfarad (1 µF) or less,
non-polarized, capacitor may be applied across the power leads of any motor on
your ROBOT (as close to the actual motor leads as reasonably possible) or
-
a resistor may be used as a shunt load
for the PWM control signal feeding a servo.
R626
*VH-109 PoE passthrough. The
VH-109 PoE output may be used only under the following conditions:
A.
The device being powered is a COTS device or COTS adapter connected to a
single COTS device with current draw ≤ 2A at 12V.
B.
The connection is made using standard Cat5e/6/7/8 cable.
C.
The VH-109 is powered using the 12V input terminals with 18AWG wire or
larger (it may additionally be powered using the PoE input if desired).
R701
*Control the ROBOT with a roboRIO. ROBOTS
must be controlled via 1 programmable NI roboRIO or roboRIO 2.0 (P/N am3000 or
am3000a, both versions referred to throughout this manual as “roboRIO”), with
image version 2025_v2.0 or later.
There are no rules that prohibit co-processors, provided
commands originate from the roboRIO to enable and disable all power regulating
devices. This includes motor controllers legally wired to the CAN bus.
R702
*Communicate with the ROBOT with the
specified radio. 1 Vivid Hosting wireless bridge (P/N: VH-109), that has
been configured with the appropriate encryption key for your team number at
each event, is the only permitted device for communicating to and from the ROBOT
during the MATCH. Events held in China and Chinese Taipei are the exceptions to
this rule and must use an OpenMesh (P/N: OM5P-AN or OM5P-AC) radio.
R703
*Use specific Ethernet port for
roboRIO. The roboRIO Ethernet port must be connected to either
A. the
wireless bridge port labeled “18-24v PoE” for OpenMesh radios (either directly,
via a network switch, via an RPM, or via a Cat5 Ethernet pigtail).
B. the
port labeled “RIO” of a VH-109 radio via (either directly, or via a Cat5
Ethernet pigtail) an RPM, passive PoE injector cable or adapter (whether or not
it is used to power the radio), or an Ethernet cable with the appropriate wires
removed on the roboRIO end. All wires or adapters used must be fully insulated.
C. the
port labeled “AUX 1” or “AUX 2” of a VH-109 radio with the corresponding DIP
switch in the off (default) position (either directly, or via a Cat5 Ethernet
pigtail).
Note: Placing a switch between the roboRIO and radio may
impede the ability for FIELD STAFF to troubleshoot roboRIO connection issues on
the FIELD. Teams may be asked to connect directly between the radio and the
roboRIO as part of troubleshooting efforts.
If not using the “RIO” port of the VH-109, it is strongly
recommended to cover the port to prevent accidental damage to devices such as
laptops which may occur if attached to this port.
R704
*Only use allowed ports and bandwidth
to communicate with the ROBOT. Communication between the ROBOT and the
OPERATOR CONSOLE may not exceed the following and is restricted to network
ports listed in Table 8‑5:
A.
7 Mbits/second for Vivid Hosting wireless bridge radios
B.
4 Mbits/second for OpenMesh radios
Table 8‑5 Open FMS ports
|
Port
|
Designation
|
Bi-directional?
|
|
UDP/TCP 1180-1190
|
Camera data from the roboRIO
to dashboard software when the camera is connected the roboRIO via USB
|
Yes
|
|
TCP 1735
|
SmartDashboard
|
Yes
|
|
UDP 1130
|
Dashboard-to-ROBOT control
data
|
Yes
|
|
UDP 1140
|
ROBOT-to-Dashboard status data
|
Yes
|
|
HTTP 80
|
Camera connected via switch on
the ROBOT
|
Yes
|
|
HTTP 443
|
Camera connected via switch on
the ROBOT
|
Yes
|
|
UDP/TCP 554
|
Real-Time Streaming Protocol
for h.264 camera streaming
|
Yes
|
|
UDP/TCP 1250
|
CTRE Diagnostics Server
|
Yes
|
|
UDP/TCP 5800-5810
|
Team use
|
Yes
|
Teams may use these ports as they wish if
they do not employ them as outlined above (i.e. TCP 1180 can be used to pass
data back and forth between the ROBOT and the Driver Station Software if the
team chooses not to use the camera on USB).
Note that the 4 Mbit limit will be strictly enforced by the
wireless bridge.
The FMS Whitepaper has more details on how to check
and optimize bandwidth usage.
While FIRST makes every effort to provide a wireless
environment that allows teams access to a full 4 Mbits/second data rate (with
about 100 Kbit used for ROBOT control and status), at some events wireless
conditions may not accommodate this.
R705
*Configure devices for your team
number. The roboRIO, Driver Station Software, and wireless bridge must
be configured to correspond to the correct team number, per the procedures
defined in the FIRST Robotics Competition Control System documentation.
R706 *Don’t bypass the ARENA network. All signals
must originate from the OPERATOR CONSOLE and be transmitted to the ROBOT via
the ARENA Ethernet network.
R707
*Limited wireless allowed. The
only forms of wireless communication that may be used to communicate to, from,
or within the ROBOT, include:
A. those
required per R702 and R706
B. tags
used for location detection systems if provided by the event
C. RFID
or NFC systems used exclusively within the ROBOT
Devices that employ signals in the visual spectrum (e.g.
cameras) and non-RF sensors that don’t receive human-originated commands (e.g.
“beam break” sensors or IR sensors on the ROBOT used to detect FIELD elements)
are not wireless communication devices and thus this rule doesn’t apply.
R708
*Wireless bridge must be visible. The
wireless bridge must be mounted on the ROBOT such that the diagnostic lights
are visible to FIELD STAFF.
Teams are encouraged to mount the wireless bridge away from
noise generating devices such as motors, PCM(s)/PH(s), and VRM(s)/RPM(s).
R709
*ROBOTS must have a signal light. ROBOTS
must use at least 1, but no more than 2, diagnostic ROBOT Signal
Light (RSL) (P/N 855PB-B12ME522 and/or am-3583).
Any RSL must be:
A. mounted
on the ROBOT such that it is easily visible while standing 3 ft. (~ 100 cm)
away from at least one side of the ROBOT,
B. connected
to the “RSL” supply terminals on the roboRIO, and
C. if
using the 855PB-B12ME522, wired for solid light operation, by placing a jumper
between the “La” and “Lb” terminals on the light per Figure 8‑16.
Figure 8‑16 855PB-B12ME522 jumper wiring
R710 *Only specified modifications to control system
devices permitted. The Driver Station Software, roboRIO, PDP/PDP2.0/PDH,
PCM(s)/PH(s), VRM(s)/RPM(s), RSL, 120A breaker, motor controllers, MXP devices
used to control actuators per R713-C, relay modules (per R504-B), wireless bridge, PDP/PDP2.0/PDH breakers and
fuses, Servo Power Module, Servo Hub, Kraken Powerpole adapter boards, and
batteries shall not be tampered with, modified, or adjusted in any way
(tampering includes drilling, cutting, machining, rewiring, disassembling,
painting, etc.), with the following exceptions:
Please note that the Driver Station Software is a separate
application from the Dashboard. The Driver Station Software may not be
modified, while teams are expected to customize their Dashboard code.
A. User
programmable code in the roboRIO may be customized.
B. Motor
controllers may be calibrated as described in owner's manuals.
C. Fans
may be attached to motor controllers and may be powered from the power input
terminals.
D. If
powering the compressor, the fuse on a Spike H-Bridge Relay may be replaced
with a VB3A-20A Snap-Action circuit breaker.
E. Wires,
cables, and signal lines may be connected via the standard connection points
provided on the devices.
F. Fasteners
(including adhesives) may be used to attach the device to the OPERATOR CONSOLE
or ROBOT or to secure cables to the device.
G. Thermal
interface material may be used to improve heat conduction.
H. Labeling
may be applied to indicate device purpose, connectivity, functional
performance, etc.
I.
Jumpers may be changed from their default location.
J. Limit
switch jumpers may be removed from a Jaguar motor controller and a custom limit
switch circuit may be substituted.
K. Device
firmware may be updated with manufacturer supplied firmware.
L. Integral
wires on motor controllers may be cut, stripped, and/or connectorized.
M. Devices may be
repaired, provided the performance and specifications of the device after the
repair are identical to those before the repair.
N. The cover
may be removed from the Talon SRX or Talon FX data port.
O. Electrical
tape may be applied to the aluminum plate inside the wireless bridge.
P. The
input terminal cover from the PDP may be omitted (no other element may be
installed using the threaded holes to install something in place of the PDP
terminal cover).
Q. The
roboRIO 2.0 SD card may be replaced with an SD card of any capacity.
R. adding
insulating material to exposed conductors.
S. replacing
control system power terminal blocks (e.g. RSL power connector) with functional
equivalents
T. tape
may be applied for debris protection.
Please note that while repairs are permitted, the allowance
is independent of any manufacturer’s warranty. Teams make repairs at their own
risk and should assume that any warranty or return options are forfeited. Be
aware that diagnosing and repairing COMPONENTS such as these can be difficult.
For more information about modification O, please see this OM5P-AC Radio Modification article.
R711
*Don’t connect motor outputs to
roboRIO. Neither 12VDC power nor relay module or motor controller
outputs shall be directly connected to the roboRIO, with the exception of the
designated 12VDC input.
R712 *Control PWM controllers from the roboRIO.
Every relay module (per R504-B), servo,
Servo Power Module, and PWM motor controller shall be connected to a
corresponding port (relays to Relay ports, servos, and PWM controllers to PWM
ports) on the roboRIO (either directly or through a WCP Spartan Sensor Board)
or via a legal MXP connection (per R713). They shall not be controlled by signals from
any other source, with the exception of the Nidec Dynamo motor controller which
must also be connected to the roboRIO Digital I/O.
R713 *Only approved MXP devices can control actuators.
If a motor is controlled via the MXP, its power regulating device must be
connected by 1 of the following methods:
A.
directly to any PWM pins,
B. via
a network of PASSIVE CONDUCTORS used to extend the PWM pins, or
C. via
1 approved ACTIVE DEVICE:
a. Kauai
Labs navX MXP
b. Kauai
Labs navX2 MXP
c. RCAL
MXP Daughterboard
d. REV Robotics
RIOduino
e. REV Robotics
Digit Board
f.
West Coast Products Spartan Sensor Board
g. Huskie
Robotics HUSKIE 2.0 Board
R714 *Control CAN motor controllers from the roboRIO.
Each CAN motor controller must be controlled with enable/disable inputs sourced
from the roboRIO and passed via either a PWM (wired per R713) or CAN bus (either directly or daisy-chained
via another CAN bus device) signal, but both shall not be wired simultaneously
on the same device.
As long as the CAN bus is wired legally so that the
heartbeat from the roboRIO is maintained, all closed loop control features of
the CAN motor controller may be used. (That is, commands originating from the
roboRIO to configure, enable, and specify an operating point for all CAN motor
controller closed loop modes fit the intent of R701).
“Wired directly” includes via any series of PASSIVE
CONDUCTORS (i.e. star or hub configurations using only PASSIVE CONDUCTORS are
permitted.)
R715
*Control PCM, PH, and Servo Hub from
roboRIO. Each PCM, PH, and Servo Hub must be controlled with signal
inputs sourced from the roboRIO and passed via a CAN bus connection from the
built-in CAN on the roboRIO (either directly or daisy-chained via another CAN
bus device).
R716
*Don’t alter the CAN bus. No
device that interferes with, alters, or blocks communications among the roboRIO
and the PDP/PDH, PCMs/PHs, and/or CAN motor controllers on the bus will be
permitted.
Only 1 wire should be inserted into each Weidmuller CAN
connector terminal. For documentation on how to wire the CAN bus connections
see How to Wire an FRC ROBOT.
R717
*USB to CAN adapter permitted.
Additional CAN bus connections may be added to the roboRIO using the CTR
Electronics CANivoreTM (P/N 21-678682, WCP-1522) USB-to-CAN adapter.
Any additional CAN bus added in this manner satisfies the
requirements of R714 (i.e. you may connect motor controllers to this additional
bus).
In order to maintain safety, the rules in this section apply
at all times while at the event, not just while the ROBOT is on the FIELD for MATCHES.
R801
*Only use explicitly permitted
pneumatic parts. To satisfy multiple constraints associated with safety,
consistency, inspection, and constructive innovation, no pneumatic parts other
than those explicitly permitted in this section shall be used on the ROBOT.
R802
*No custom pneumatics and meet
minimum pressure ratings. All pneumatic items must be COTS pneumatic
devices and either:
A.
rated by their manufacturers for pressure of at least 125psi (~862 kPa,
8.6 Bar), or
B.
installed downstream of the primary relieving regulator (see R809),
and rated for pressure of at least 70psi (~483 kPa, 4.8 Bar)
Any pressure specification such as “working,” “operating,”
“maximum,” etc. may be used to satisfy the requirements of this rule.
It is recommended that all pneumatic items be rated by
their manufacturers for a working pressure of at least 60 psi (~414 kPa, 4.1
Bar).
R803
*Don’t modify pneumatics. All
pneumatic COMPONENTS must be used in their original, unaltered condition.
Exceptions are as follows:
A.
tubing may be cut,
B.
wiring for pneumatic devices may be modified to interface with the
control system,
C.
assembling and connecting pneumatic COMPONENTS using the pre-existing
threads, mounting brackets, quick-connect fittings, etc.,
D.
removing the mounting pin from a pneumatic cylinder, provided the
cylinder itself is not modified, and
E.
labeling applied to indicate device purpose, connectivity, functional
performance, etc.
Do not, for example, paint, file, machine, or abrasively
remove any part of a pneumatic COMPONENT – this would cause the part to become
a prohibited item.
R804 *Only use specific pneumatic devices. The only
pneumatic system items permitted on ROBOTS include the following items:
A.
pneumatic pressure vent plug valves functionally equivalent to those
provided in the KOP,
Examples of acceptable valves include Parker PV609-2 or
MV709-2.
B.
pressure relief valves functionally equivalent to those provided in the
KOP,
Examples of acceptable valves include Norgren 16-004-011,
16-004-003 or McMaster-Carr 48435K714.
To be considered functionally equivalent the valve must be
preset or adjustable to 125 psi (~862 kPA, 8.6 Bar) and capable of relieving at
least 1 scfm (~472 cm3/s).
C.
solenoid valves with a maximum ⅛ in. (nominal, ~3 mm) NPT, BSPP, or BSPT
port diameter or integrated quick connect ¼ in. (nominal, ~6mm) outside
diameter tubing connection,
D.
additional pneumatic tubing, with a maximum ¼ in. (nominal, ~6 mm)
outside diameter,
E.
pressure transducers, pressure gauges, passive flow control valves
(specifically “needle valve”), manifolds, and connecting fittings (including
COTS pneumatic U-tubes),
F.
check and quick exhaust valves, provided that the requirements of R813
are still met.
G.
shutoff valves which relieve downstream pressure to atmosphere when closed
(may also be known as 3-way or 3-way exhausting valves),
H.
pressure regulators with the maximum outlet pressure adjusted to no more
than 60 psi (~413 kPa, 4.1 Bar),
I.
pneumatic cylinders, pneumatic linear actuators, and rotary actuators,
J.
pneumatic storage tanks (with the exception of white Clippard tanks P/N
AVT-PP-41),
K.
1 compressor that is compliant with R806,
L.
debris or coalescing (water) filters, and
M.
Venturi valves (note: the high-pressure side of a Venturi valve is
considered a pneumatic device and must follow all pneumatic rules. The vacuum
side of a Venturi valve is exempt from the pneumatic rules per “a” in the blue
box below).
The following devices are not considered pneumatic devices
and are not subject to pneumatic rules (though they must satisfy all other
rules):
A. a device that creates a vacuum,
B. closed-loop COTS pneumatic (gas) shocks,
C. air-filled (pneumatic) wheels, and
D. pneumatic devices not used as part of a pneumatic system
(i.e. used in a way that does not allow them to contain pressurized air)
R805
*If using pneumatics, these parts are
required. If pneumatic COMPONENTS are used, the following items are
required as part of the pneumatic circuit and must be used in accordance with
this section, as illustrated in Figure 8‑17.
A.
1 FIRST Robotics Competition legal compressor (per R806),
B.
a pressure relief valve (per R804-B) connected
and calibrated (per R811),
C.
a Nason pressure switch (P/N SM-2B-115R/443) and/or REV Robotics Analog
Pressure Sensor (P/N REV-11-1107) connected and wired per R812,
D.
at least 1 pressure vent plug plumbed (per R813),
E.
stored pressure gauge and working pressure gauge (per R810), and
F.
1 primary working pressure regulator (per R808).
Figure 8‑17 Pneumatic circuitry
R806 *Compressed air from ROBOT compressor only.
Throughout an event, compressed air on the ROBOT must be provided by its 1
onboard compressor only. Compressor specifications must not exceed nominal 1.1
cfm (~519 cm3/s) flow rate @ 12VDC at any pressure.
A ROBOT’S compressor may be substituted by another
compressor, but a ROBOT may only have 1 designated compressor at a time, and
all compressed air on the ROBOT must be sourced from a single compressor.
Note: Viair C-series compressors, which have a max working
pressure of 120 PSI, are rated for intermittent pressures greater than 125 PSI
and therefore meet the requirements of this rule.
R807 *Air storage pressure limit. Stored air
pressure on the ROBOT must be no greater than 120 psi (~827 kPa, 8.2 Bar). No
stored air pressure intended for the ROBOT may be located off-board the ROBOT.
R808 *Working air pressure limit. Working air
pressure (air pressure used to actuate devices) on the ROBOT must be no greater
than 60 psi (~413 kPa, 4.1 Bar) and must be provided through a single primary
adjustable, relieving, pressure regulator. Additional regulators may be located
downstream of the single primary regulator.
Examples of acceptable valves include Norgren regulator P/N
R07-100-RNEA and Monnier P/N 101-3002-1.
R809
*Limited devices at high pressure.
Only the compressor, relief valve, pressure switch, pressure vent plug,
pressure gauge, storage tanks, tubing, pressure transducers, filters, and
connecting fittings may be in the high-pressure pneumatic circuit upstream from
the regulator.
It is recommended that all COMPONENTS in the high-pressure
pneumatic circuit upstream from the regulator be rated for at least 115 psi
(~793 kPa, 7.9 Bar) working pressure.
R810
*Pressure gauges must be visible.
Pressure gauges must be placed in easily visible locations upstream and
downstream of the regulator to display the stored and working pressures,
respectively. Pressure gauges must show pressure in psi, kPa, or Bar.
R811
*Relief valve requirements.
The relief valve must be attached directly to the compressor or attached by
legal hard fittings (e.g. brass, nylon, etc.) connected to the compressor
output port.
Teams are required to check and/or adjust the
relief valve to release air at 125 psi (~862 kPa, 7.9 Bar). The valve may or
may not have been calibrated prior to being supplied to teams.
Instructions for adjusting the pressure relief valve can be
found in the Pneumatics Manual.
R812
*Pressure switch requirements.
The pressure switch must be connected to the high-pressure side of the
pneumatic circuit (i.e. prior to the pressure regulator) to sense the stored
pressure of the circuit.
It must be either:
A.
Nason P/N SM-2B-115R/443 (wired as described) and/or
The 2 wires from
the pressure switch must be connected directly to the pressure switch input of
the PCM/PH controlling the compressor or, if controlled using the roboRIO and a
relay, to the roboRIO. If connected to the roboRIO, the roboRIO must be programmed
to sense the state of the switch and operate the relay module that powers the
compressor to prevent over-pressuring the system.
B.
REV Robotics P/N REV-11-1107 (wired as described)
The analog output
of the sensor must be connected directly to analog input 0 of the PH (with
firmware version 22.0.2 or newer) controlling the compressor.
The REV Robotics Analog Pressure Sensor may only be used
with PH compressor control and may not be used with PCM compressor control.
R813 *Vent plug requirements. Any pressure vent plug
must be:
A.
connected to the pneumatic circuit such that, when manually operated, it
will vent to the atmosphere to relieve all stored pressure in a reasonable
amount of time and
B.
placed on the ROBOT so that it is visible and easily accessible.
R814
*Don’t connect solenoid
outputs together. The output air from multiple solenoid valves must not
be combined.
Manifolds, shuttle valves, and other devices which do not
combine output airflow, even though it may be plumbed into the same device, are
not violations of this rule.
8.9
OPERATOR CONSOLE
R901
*Use the specified Driver Station
Software. The Driver Station Software provided by National Instruments (install instructions found here) is the only application permitted to specify and
communicate the operating mode (i.e. AUTO/TELEOP) and operating state
(Enable/Disable) to the ROBOT. The Driver Station Software must be version 25.0
or newer.
Teams are permitted to use a portable computing device of
their choice (laptop computer, tablet, etc.) to host the Driver Station
Software while participating in MATCHES.
R902
*The OPERATOR CONSOLE must have a
visible display. The OPERATOR CONSOLE, the
set of COMPONENTS and MECHANISMS used by the DRIVERS and/or HUMAN PLAYERS to
relay commands to the ROBOT, must include a graphic display to present the
Driver Station Software diagnostic information. It must be positioned within
the OPERATOR CONSOLE so that the screen display can be clearly seen during
inspection and in a MATCH.
R903
*Connect FMS Ethernet directly to the
OPERATOR CONSOLE. Devices hosting the Driver Station Software must only
interface with the FMS via the Ethernet cable provided at the DRIVER STATION
(e.g. not through a switch). Teams may connect the FMS Ethernet cable to the
device running the Driver Station Software directly via an Ethernet pigtail, or
with a single-port Ethernet converter (e.g. docking station, USB-Ethernet
converter, Thunderbolt-Ethernet converter, etc.). The Ethernet port on the
OPERATOR CONSOLE must be easily and quickly accessible.
Teams are strongly encouraged to use pigtails on the
Ethernet port used to connect to the FMS. Such pigtails will reduce wear and
tear on the device’s port and, with proper strain relief employed, will protect
the port from accidental damage.
R904
*OPERATOR CONSOLE physical
requirements. The OPERATOR CONSOLE must not
A.
be longer than 5 ft. (~152 cm),
B.
be deeper than 1 ft. 2 in. (~35 cm) (excluding any items that are held
or worn by the DRIVERS during the MATCH),
C.
extend more than 6 ft. 6 in. (~198 cm) above the floor, or
D.
attach to the FIELD (except via the loop tape as described in section 5.6.1 DRIVER STATIONS).
There is a 4 ft. 6 in. (~137 cm) long by 2 in. (nominal)
wide strip of hook-and-loop tape (“loop” side) along the center of the DRIVER
STATION support shelf that should be used to secure the OPERATOR CONSOLE to the
shelf. See section 5.6.1 DRIVER STATIONS for
details.
Please note that while there is no hard weight limit,
OPERATOR CONSOLES that weigh more than 30 lbs. (~13 kg.) will invite extra
scrutiny as they are likely to present unsafe circumstances.
R905
*FIELD wireless only. Other
than the system provided by the FIELD, no other form of wireless communications
shall be used to communicate to, from, or within the OPERATOR CONSOLE.
Examples of prohibited wireless systems include, but are
not limited to, active wireless network cards and Bluetooth devices. For the
case of the FIRST Robotics Competition, a motion sensing input device
(e.g. Microsoft Kinect) is not considered wireless communication and is
allowed.
R906
*No unsafe OPERATOR CONSOLES. OPERATOR
CONSOLES shall not be made using hazardous materials, be unsafe, cause an
unsafe condition, or interfere with other DRIVE TEAMS or the operation of other
ROBOTS.
R907
*No AC inverters. OPERATOR
CONSOLES must not contain AC inverters.
9
Inspection & Eligibility (I)
This section describes the rules governing MATCH
participation. A team has participated in a MATCH if any member of their DRIVE
TEAM is in the ALLIANCE AREA or PROCESSOR AREA, with or without the ROBOT on
the FIELD, at the start of the MATCH.
At each event, the Lead ROBOT INSPECTOR (LRI)
has final authority on the legality of any COMPONENT, MECHANISM, or ROBOT. The
LRI may consult with additional sources including the Global LRIs and/or FIRST
personnel before making their final decision. INSPECTORS may re-inspect ROBOTS
at any time to ensure compliance with the rules. Teams are encouraged to
consult with INSPECTORS or the LRI if they have any questions regarding the
legality of a ROBOT or about how to make a ROBOT legal.
The inspection process may progress in blocks, i.e. it may
pause for a team’s Practice MATCH, lunch break, etc. The process may employ
various INSPECTORS throughout the process based on availability. At the team’s
discretion, they may request a different INSPECTOR or invite the Lead ROBOT
INSPECTOR to participate in their ROBOT’S inspection.
While there is no specific defined procedure in place for
teams to be re-inspected prior to Playoff MATCHES, it is typical for INSPECTORS
to use the re-inspection discretion described above to do a limited
re-inspection on all ROBOTS near the end of QUALIFICATIONS or beginning of
Playoff MATCHES to help identify any modifications that should be re-inspected
per I104.
ROBOTS are permitted to participate in scheduled Practice MATCHES
prior to passing inspection. However, the FTA, LRI, or Head REFEREE may
determine at any time that the ROBOT is unsafe and may prohibit further
participation in Practice MATCHES until the condition is corrected and/or the ROBOT
passes inspection. A safe ROBOT has functional BUMPERS that approximately meet
the required coverage (R401), height (R402), and cross section (R408) requirements.
Prior to the start of a MATCH, any ROBOT
which is unable or ineligible to participate in that MATCH, as determined by
the FTA, LRI, or Head REFEREE, is declared to be BYPASSED and is DISABLED.
A team whose ROBOT is BYPASSED remains eligible to receive Qualification
Ranking Points or Playoff MATCH points provided that its ROBOT has passed
inspection, per I102.
An Inspection Checklist is available to help teams
self-inspect their ROBOT before their event. Teams are strongly encouraged to
self-inspect prior to their event.
I101
*It’s your team’s ROBOT. The
ROBOT and its MAJOR MECHANISMS must be built by the FIRST Robotics Competition
team.
A MAJOR MECHANISM is a
group of COMPONENTS and/or MECHANISMS assembled together to address at least 1
game challenge: ROBOT movement, SCORING ELEMENT manipulation, FIELD element
manipulation, or performance of a scorable task without the assistance of
another ROBOT.
This rule requires that the ROBOT
and its MAJOR MECHANISMS were built by its team, but isn’t intended to prohibit
or discourage assistance from other teams (e.g. fabricating elements,
supporting construction, writing software, developing game strategy,
contributing COMPONENTS and/or MECHANISMS, etc.)
Examples of MAJOR MECHANISMS
include, but are not limited to, assemblies used to:
A. manipulate SCORING ELEMENTS,
B. manipulate a FIELD element, and
C. move the ROBOT around the FIELD.
Examples that would generally not
be considered MAJOR MECHANISMS, and thus probably aren’t subject to this rule
include, but are not limited to, the following:
A. a gearbox assembly,
B. a COMPONENT or MECHANISM that’s part of a MAJOR MECHANISM,
and
C. COTS items.
Neither this rule nor the
language in this blue box define specific thresholds for how much of a MAJOR
MECHANISM must be the result of the team’s effort. This rule expects and
requires the team’s honest assessment of whether they built the MAJOR MECHANISMS
of their ROBOT.
Attempts to exploit loopholes in
the definition of MAJOR MECHANISM in order to bypass this requirement are in
the spirit of neither this rule nor the FIRST Robotics Competition. Examples of
exploitation include:
A. assembling pieces of a MAJOR MECHANISM provided by another
team, except COTS kits and
B. receiving a mostly complete MAJOR MECHANISM from another
team and providing a small piece.
I102
*Get inspected before
playing a Qualification/Playoff MATCH. A team is only permitted to
participate in a Qualification or Playoff MATCH and receive Ranking or MATCH
Points if their ROBOT has passed an initial, complete inspection.
Violation: If prior to the start of the MATCH, the team is
DISQUALIFIED and not eligible to participate in the MATCH.
If after the MATCH, the team receives a RED CARD and the MATCH may be
replayed per T201.
I103
*Bring it all to inspection.
At the time of inspection, the OPERATOR CONSOLE and the ROBOT must be presented
with all MECHANISMS (including all COMPONENTS of each MECHANISM),
configurations, and decorations that will be used on the ROBOT in MATCHES
without re-inspection (per I104) and may not exceed 150 lbs. (~68 kg) (note
that while up to 150 lbs. (~68 kg) of ROBOT MECHANISMS may be inspected
together, the ROBOT configuration used in a MATCH may not violate R103). The OPERATOR CONSOLE and exceptions listed in R103 are not included in this weight.
I104
*Unless the change is listed
below, any change to a ROBOT must get re-inspected. A ROBOT may play MATCHES
with a subset of the MECHANISMS that were present during inspection provided
the reconfigured ROBOT still complies with all ROBOT Construction Rules. Only
MECHANISMS that were present during the inspection may be added, removed, or
reconfigured between MATCHES without re-inspection per this rule. If a ROBOT is
modified after its most recent passed inspection, it must be re-inspected
before it is eligible to participate in a MATCH.
Exceptions are listed in A through F (unless
they result in a significant change to the ROBOT’S size, weight, legality, or
safety).
A.
addition, relocation, or removal of fasteners (e.g. cable ties, tape,
and rivets),
B.
addition, relocation, or removal of labeling or marking,
C.
revision of ROBOT code,
D.
replacement of a COTS COMPONENT with an identical COTS COMPONENT,
E.
replacement of a MECHANISM with an identical MECHANISM (size, weight,
material), and
F.
additions, removals, or reconfiguration of ROBOT with a subset of
MECHANISMS already inspected per I103.
I105
*Don’t exploit re-inspection.
Teams may not use the re-inspection process in I104 to circumvent the weight limit in I103.
This restriction is not intended to prevent a team from
returning to a previous configuration (e.g. due to an unsuccessful upgrade or
failure of a new COMPONENT). If a team is believed to be violating this rule,
the LRI will discuss the situation with the team to understand the changes and,
if appropriate, the LRI in conjunction with the team will select a single
configuration with which the team will compete for the duration of the event.
Example 1: A ROBOT passes initial inspection (which
includes MECHANISM A). Its team then decides they want to use MECHANISM B,
which was not inspected. The weight of the ROBOT, A, and B is less than the
weight limit in I103, but more than that
in R103. I104 requires the ROBOT be
re-inspected, and this rule allows the ROBOT, A, and B to be inspected
collectively. If passed, the ROBOT may then compete in subsequent MATCHES with
A or B.
Example 2: A ROBOT passes initial inspection (which
includes MECHANISM A). Its team then decides they want to use MECHANISM B,
which was not inspected. The weight of the ROBOT, A, and B is greater than the
weight limit in I103. This requires
re-inspection per I104 and A is excluded to
satisfy I103. B breaks, and the
team decides to switch back to A. The ROBOT must be re-inspected per I104, and the team is not
violating this rule.
Example 3: A team arrives at an event with a ROBOT,
MECHANISM A, and MECHANISM B, which collectively weigh 175 lbs (79 kg). The ROBOT
passes initial inspection with A and plays a MATCH. The team switches to B,
gets re-inspected, and plays again. The team switches back to A, gets
re-inspected, and plays again. The team switches back to B and asks to be
re-inspected. At this point, the LRI suspects the team may be violating this
rule and has a discussion with the team to understand the changes being made.
The team reveals that this rule has been violated, and the LRI works with them
to select A or B for use for the remainder of the event.
I106
*ROBOTS are off for inspection
(mostly). For the safety of all those involved, ROBOTS, must be
presented for inspection with the ROBOT powered off, pneumatics unpressurized,
and springs or other stored energy devices in their lowest potential energy
states (e.g. battery removed).
Power and air pressure should only be enabled
on the ROBOT during those portions of the inspection process where it is
absolutely required to validate certain system functionality and compliance
with specific rules (firmware check, etc.). INSPECTORS may allow the ROBOT to
be powered beyond the parameters above if both criteria below are met:
A.
the ROBOT design requires power or a charged stored energy device in
order to confirm that the ROBOT meets volume requirements and
B.
the team has included safety interlocks that mitigate unexpected release
of such stored energy.
The team may be asked to demonstrate these interlocks
during the inspection process.
I107
*No STUDENT, no inspection.
At least 1 STUDENT team member must accompany the ROBOT for any inspection
efforts.
Exceptions may be made for major conflicts, e.g. religious
holidays, major testing, transportation issues, etc.
Each 2025 FIRST Robotics Competition event is played
in a tournament format. Each tournament consists of 3 types of MATCHES: Practice
MATCHES (not necessarily played at all District Events), Qualification MATCHES,
and Playoff MATCHES.
Practice MATCHES provide each team with an opportunity to
operate its ROBOT on the FIELD prior to the start of the Qualification MATCHES.
Qualification MATCHES allow each team to earn Ranking Points
which determine their seeding position and may qualify them for participation
in the Playoff MATCHES.
Playoff MATCHES determine the event Champions.
10.1 MATCH
Schedules
A MATCH schedule is used to coordinate MATCHES at an Event. Figure 10‑1 details information shown on each
schedule. SURROGATE MATCHES are described in section 10.5.2 MATCH Assignment.
Figure 10‑1 Sample MATCH schedule
Over the course of the tournament, it may be necessary for a
MATCH to be replayed. Typical causes for replays are MATCHES that end in a tie
during the Playoffs (due to criteria listed in Table 10‑3 or any Finals MATCH), MATCHES that are
stopped because FIELD STAFF anticipated FIELD damage or personal injury, or if
there is an ARENA FAULT. An ARENA FAULT is an error in ARENA
operation that includes, but is not limited to:
A.
broken FIELD elements due to
a. normal,
expected game play or
b. ROBOT
abuse of FIELD elements that affects the outcome of the MATCH for their
opponents
A broken FIELD element caused by ROBOT abuse that affects
the outcome of the MATCH for their ALLIANCE is not an ARENA FAULT.
B.
power failure to a portion of the FIELD (tripping the circuit breaker in
the DRIVER STATION is not considered a power failure),
C.
improper activation by the FMS,
D.
errors by FIELD STAFF (except those listed in section 6.8 Other Logistics), and
E.
a ROBOT radio disconnect that impairs operation of other ROBOTS on the
FIELD for more than 8 seconds.
If, in the judgment of the Head REFEREE, an ARENA FAULT
occurs that affects the outcome of the MATCH and any team on the affected ALLIANCE
desires a replay, the MATCH will be replayed. FIRST Headquarters
reserves the right to, with consultation of the Head REFEREE and the FTA,
replay a MATCH in which an ARENA FAULT impacts the outcome of an event.
The outcome of the MATCH is affected if an error occurs
that, in the judgement of the Head REFEREE, changes which ALLIANCE would have
won the MATCH and/or the assignment of Ranking Points.
The outcome of an event is affected if an error occurs
that, in the judgement of FIRST Headquarters, changes the assignment of
Ranking Points or has a dramatic effect on points used for ranking criteria.
Note that an ARENA FAULT that does not affect MATCH
outcome, in the judgement of the Head REFEREE, does not lead to a MATCH replay.
Examples include, but are not limited to:
A. a piece of FIELD plastic falls into the FIELD, far away
from any human or ROBOT activity, and in such a way that it does not affect MATCH
outcome,
B. delay in the playing of an ARENA sound,
C. mismatch between the timer on the audience screen and the ARENA
timer,
D. any adjustment or delay in assignment of a score or penalty
(including those made after the MATCH), and
E. the disconnect described in scenario E occurring before the
last 20 seconds of the MATCH.
Examples of errors by FIELD STAFF include, but are not
limited to:
F. a gate being left open when the MATCH starts,
G. mistakenly allowing a ROBOT in violation of I102 that hasn’t passed an initial, complete
inspection to participate in the MATCH
T201 *Replays will be the same. All reasonable
effort is made to create the same conditions when replaying a MATCH caused by
an ARENA FAULT or FIELD damage. This means, for example, that a team that was BYPASSED
prior to the start of the MATCH which is to be replayed is BYPASSED for the
replay MATCH. ROBOT and DRIVE TEAM starting locations do not need to be
replicated when replaying a MATCH.
Violation: MATCH with not start until the situation is
corrected
Per section 6.6.1 YELLOW and RED CARDS,
cards assigned in previous MATCHES, including prior instances of the MATCH to
be replayed, are not cleared.
At each event, the ARENA will be open for at least 30
minutes prior to the start of Qualification MATCHES, during which time teams
may survey and/or measure the ARENA and bring ROBOTS on the FIELD to perform
sensor calibration. The specific time that the FIELD is open will be
communicated to teams at the event. Teams may bring specific questions or
comments to the FTA.
T301
*Measurement, not practice.
During the period when the ARENA is open for measurement:
A.
ROBOTS can be enabled, but may neither drive, extend outside their ROBOT
PERIMETER, nor interact with (e.g. score, push, pickup, etc.) SCORING ELEMENTS
(or anything resembling SCORING ELEMENTS), a CAGE, PROCESSOR, REEF, CORAL
STATION, or other FIELD elements.
B.
Humans may touch a SCORING ELEMENT but may not practice with it (e.g.
throw ALGAE, or anything resembling ALGAE, or use the CORAL STATION)
Violation: VERBAL WARNING, plus YELLOW CARD if subsequent
violations at any point during the event or egregious.
10.4
Practice MATCHES
Practice MATCHES are played before Qualification MATCHES.
The Practice MATCH schedule is available as soon as possible, but no later than
the start of Practice MATCHES. For Regional events, it will also be published
and available online on the FRC-Events website, except during exceptional
circumstances. Practice MATCHES are randomly assigned, and teams may not switch
scheduled Practice MATCHES. Each team is assigned an equal number of Practice MATCHES
unless the number of teams multiplied by number of Practice MATCHES is not
divisible by 6. In this case, the FMS randomly selects some teams to play an
extra Practice MATCH.
Practice MATCHES are not guaranteed at District Events due
to event schedule constraints.
A Filler Line is used to fill open slots at events that
employ scheduled Practice MATCHES or all slots at events with an open Practice MATCH
schedule. Teams from the Filler Line are used on a first come, first served
basis to fill empty spots in Practice MATCHES left by other teams that do not
report to Queueing. The number of teams in the Filler Line is dependent upon
space at venues.
Only teams that meet all criteria below qualify for the
Filler Line:
A.
ROBOTS in the Filler Line must have passed inspection (this requirement
may be waived for events with open Practice MATCH schedules),
B.
DRIVE TEAMS must join the Filler Line with their ROBOT,
C.
teams may not work on their ROBOT while in the Filler Line,
D.
teams may not occupy more than 1 spot in the Filler Line, and
E.
if a team is queued for their Practice MATCH, they may not also join the
Filler Line.
10.5
Qualification MATCHES
The Qualification MATCH schedule is made available as soon
as possible, but no later than 30 minutes before Qualification MATCHES are
scheduled to begin. Teams receive 1 hard copy and it is also available on the FRC-Events
website, except during exceptional circumstances. Each Qualification
schedule consists of a series of rounds in which each team plays 1 MATCH per
round.
10.5.2
MATCH Assignment
FMS assigns each team 2 ALLIANCE partners for each
Qualification MATCH using a predefined algorithm, and teams may not switch
Qualification MATCH assignments. The algorithm employs the following criteria,
listed in order of priority:
1. ensure
each team has at least the minimum required time between MATCHES (varies by
event size)
2. minimize
the number of times a team is allied with any team
3. minimize
the number of times a team plays opposite any team
4. minimize
the use of SURROGATES (teams randomly assigned by the FMS to
play an extra Qualification MATCH)
5. provide
even distribution of MATCHES played on blue and red ALLIANCE
6. provide
even distribution of MATCHES played in each DRIVER STATION number
At events with fewer than 24 participating teams, the
criteria are similar, however criterion 5 is changed to minimize the number of
times a team swaps between the blue and red ALLIANCE rather than an even
distribution.
All teams are assigned the same number of Qualification MATCHES,
equal to the number of rounds, unless the number of teams multiplied by number
of MATCHES is not divisible by 6. In this case, the FMS randomly selects some
teams to play an extra MATCH. For the purpose of seeding calculations, those
teams are designated as SURROGATES for the extra MATCH. If a team plays a MATCH
as a SURROGATE, it is indicated on the MATCH schedule, it is always their third
Qualification MATCH, and the outcome of the MATCH has no effect on the team’s
ranking. YELLOW and RED CARDS assigned to SURROGATES, however, do carry forward
to subsequent MATCHES.
10.5.3 Qualification Ranking
Ranking Points are units credited to a team based on their ALLIANCE’S
performance in Qualification MATCHES. Ranking Points are awarded to each
eligible team at the completion of each Qualification MATCH per Table 6‑2.
Exceptions to Ranking Point assignment are as follows:
A. A SURROGATE
receives 0 Ranking Points.
B. A
DISQUALIFIED team, as determined by the Head REFEREE, receives 0 Ranking Points.
C. A
“no-show” team is either DISQUALIFIED from or issued a RED CARD for that MATCH
(see G208). A team is declared a no-show if no member of
the DRIVE TEAM is in the ALLIANCE AREA at the start of the MATCH.
The total number of Ranking Points earned by a team
throughout their Qualification MATCHES divided by the number of MATCHES they’ve
been scheduled to play (minus any SURROGATE MATCH), then rounded to 2 decimal
places, is their Ranking Score (RS).
All teams participating in Qualification MATCHES are ranked
by Ranking Score. If the number of teams in attendance is ‘n’, they are ranked
‘1’ through ‘n’, with ‘1’ being the team with the highest Ranking Score and ‘n’
being the team with the lowest Ranking Score.
Teams are ranked in order, using the sorting criteria
defined in Table 10‑1.
Table 10‑1 Qualification MATCH ranking
criteria
|
Order
Sort
|
Criteria
|
|
1st
|
Ranking Score
|
|
2nd
|
Average Coopertition Bonus
points
|
|
3rd
|
Average ALLIANCE MATCH points,
not including MINOR FOULS and MAJOR FOULS
|
|
4th
|
Average ALLIANCE LEAVE + AUTO CORAL
points
|
|
5th
|
Average ALLIANCE BARGE points
|
|
6th
|
Random sorting by the FMS
|
10.6 Playoff MATCHES
Playoff MATCHES follow the qualification MATCHES. In the
Playoffs, teams play on set ALLIANCES, chosen during ALLIANCE selection, and
advance through a double elimination bracket. Teams do not earn Ranking Points;
they advance based on winning, losing, or tying a MATCH.
A DISQUALIFIED team, as determined by the Head REFEREE,
causes their alliance to receive 0 MATCH points in a Playoff MATCH.
10.6.1 ALLIANCE Selection
Process
At the end of the Qualification MATCHES, the top 8 ranked
teams become the ALLIANCE Leads. The ranked ALLIANCES are designated, in order,
ALLIANCE 1, ALLIANCE 2, etc., down to ALLIANCE 8. Using the ALLIANCE selection
process described in this section, each ALLIANCE Lead chooses 2 other teams to
join their ALLIANCE.
A break of 8 minutes (8:00) occurs between the posting of
scores from the last qualification match (scheduled or replay, whichever comes
later) and the start of the ALLIANCE Selection process for events that host
Alliance Selection shortly after QUALIFICATION MATCHES. At the end of this
break, ALLIANCE 1 is “on the clock” as defined below in T605.
T601 *Send your STUDENT representatives. Each team
must choose and send a minimum of one and a maximum of three STUDENT team
representatives. Representative(s) must report to the ARENA before the start of
ALLIANCE Selection.
Violation: Team is ineligible for the Playoff Tournament if
they are not represented by the time they are announced.
If an absent team would have been an ALLIANCE Lead, all
lower ranked ALLIANCE Leads are promoted 1 spot.
The designated STUDENT
representative from each ALLIANCE Lead is called the ALLIANCE CAPTAIN (if
the ALLIANCE has sent multiple STUDENT representatives, they must designate
only one as the ALLIANCE CAPTAIN). This representative may change between
ALLIANCE selection and Playoff MATCHES.
T602 *STUDENTS must outnumber adults. A non-STUDENT
may additionally be a representative from a team if the team has exactly two
STUDENT representatives.
Violation: Non-STUDENT must leave the ARENA
These are the possible combinations of ALLIANCE Selection
representatives between T601/T602:
A. One STUDENT
B. Two STUDENTS
C. Three STUDENTS
D. Two STUDENTS and one non-STUDENT
The ALLIANCE selection process consists of rounds during
which each ALLIANCE CAPTAIN invites a team ranked below them in the standings
to join their ALLIANCE. The invited team’s representative must either accept or
decline the invitation immediately. If the team accepts, it becomes a member of
that ALLIANCE. This process results in 8 ALLIANCES of 3 teams.
Each round is complete when all ALLIANCES have added one
additional team, and each round must be complete before the next round can
begin. In round 1 selections are made in descending order (ALLIANCE 1 to
ALLIANCE 8), whereas in round 2 selections are made in ascending order
(ALLIANCE 8 to ALLIANCE 1).
T603 * Only STUDENTS
may use the mic. Only a single STUDENT from the invited team is allowed
to accept/decline.
Violation: The team is assumed to have declined.
T604
* Only the ALLIANCE CAPTAIN may invite an ALLIANCE. The
ALLIANCE CAPTAIN is the only representative of the ALLIANCE who may approach
the emcee and make a valid pick via the microphone.
Violation: Pick does not count, and pick timer continues to
count down.
T605 * Picks are time
limited. Once the emcee requests an ALLIANCE’S selection, the ALLIANCE
is considered “on the clock” and the pick timer begins to countdown. In round
1, the timer begins at 45 seconds (0:45), in round 2 the timer begins at 1
minute and 30 seconds (1:30). A sound will play to indicate that there are 5
seconds left on the timer and a buzzer will go off to indicate the end of the
time. The ALLIANCE CAPTAIN must make a good faith effort, as determined by the
FTA or their designee, to state a valid team selection before the expiration of
the pick timer.
Violation: The ALLIANCE is skipped, and the emcee moves to
the next ALLIANCE, unless the selection is the last of a round in which case
the ALLIANCE receives the next highest-ranked unselected team to the ALLIANCE.
The time remaining on the pick timer is displayed on the
FIELD timers. Please note that audio cues are intended as a courtesy to
participants and not intended as official markers.
A valid team selection includes any team who has not yet
accepted or declined an invitation to join another ALLIANCE and is not an
ALLIANCE Lead that has had a pick timer violation. If an ALLIANCE CAPTAIN
attempts to select a team that is not valid, the pick timer continues to run
until it either expires, or a different (valid) team is invited to join the
ALLIANCE.
Examples of good faith efforts to state a valid team
selection include but are not limited to:
A. Walking safely towards the emcee when the clock hits zero
B. Starting to state a team as the clock hits zero
Examples that are not considered good faith efforts to
quickly state a valid team selection include but are not limited to:
C. Continuing to talk with your ALLIANCE partners without
moving towards the emcee
D. Talking into the microphone for more than approximately 30
seconds without clearly stating a team number to invite
If an ALLIANCE CAPTAIN extends a valid invitation and the
invited team declines, the pick clock resets to the time for the designated
round and restarts immediately.
After each accepted ALLIANCE invitation or T605 violation, the emcee invites any ALLIANCE
CAPTAINS that received a T605
violation in that round to make their selections. Each ALLIANCE CAPTAIN may
either indicate that they are ready to make their selection (and immediately do
so as determined by the FTA or their designee) or indicate that they are not
yet ready, and they will be revisited after the next accepted invitation or T605 violation. If a team
with a T605 violation
extends a valid invitation and the invited team declines, they are allowed to
make another selection immediately or else they are skipped and will be
revisited as described above. If there are multiple ALLIANCE CAPTAINS that have
received T605 violations,
they are revisited in the same order in which they received their violations.
If all remaining teams in a round have received a T605 violation, each team is revisited to
either make a pick immediately or receive the next highest-ranked unselected
team.
The ALLIANCE CAPTAIN with the last selection of a given
round may not be the ALLIANCE CAPTAIN scheduled to have the final
pick. For example, imagine in round 1 that ALLIANCES 1-6 have all made valid
selections and ALLIANCE Lead 7 receives a T605 violation. If ALLIANCE Lead 8 makes a
valid selection, then ALLIANCE Lead 7 now has the final selection of round 1.
A break of 2 minutes (2:00) occurs between each round of
selections. At the conclusion of the break, the ALLIANCE scheduled to make the
next selection goes “on the clock” and their timer begins per T605.
T606
*Declining teams can’t be picked. An
ALLIANCE CAPTAIN may not invite a team that has declined another ALLIANCE’S
invitation to participate in the Playoff tournament. Declining teams are
ineligible to be a BACKUP TEAM.
Violation: The ALLIANCE CAPTAIN must make another selection
and pick timer continues to count down.
An ALLIANCE Lead that declines an invitation from another ALLIANCE
is able to invite teams to join their ALLIANCE but may not be invited to join
another ALLIANCE.
At the conclusion of ALLIANCE selection, the highest ranked
unselected teams are eligible to become a BACKUP TEAM, as defined in section 10.6.3 BACKUP TEAMS.
The double elimination tournament consists of an Upper and
Lower bracket as shown in Figure 10‑2. Each ALLIANCE begins with a slot in
the Upper bracket. If an ALLIANCE wins a MATCH in the Upper bracket, they
remain in the Upper bracket. If an ALLIANCE loses a MATCH in the Upper bracket,
they transition to the Lower bracket. ALLIANCES in the Lower bracket must win
any subsequent MATCHES (except for finals) to remain in the tournament, i.e.
once they lose a MATCH, they’re out of the tournament.
In Round 1, the higher ranked ALLIANCE is assigned to the
red ALLIANCE. For subsequent rounds, ALLIANCE color is assigned as shown in Figure 10‑2, regardless of ALLIANCE rank at the
start of the Playoff tournament.
Figure 10‑2 Playoff MATCH bracket (Red ALLIANCE
tops each pairing)
As shown in Figure 10‑2 and Table 10‑2, Playoff MATCHES consist of 6 rounds
with breaks between later rounds and between Finals MATCHES. Breaks begin after
the FIELD has been cleared from the previous MATCH. The Blue and Red Gap
columns indicate the approximate time between each ALLIANCE’S MATCHES. The
expected start time of the scheduled MATCH is the time indicated on the MATCH
schedule or 15 minutes from the end of either ALLIANCE’S previous MATCH,
whichever is later. Occasionally, replayed MATCHES within a round may be played
out of order; if MATCHES are played out of order, teams are informed by the emcee,
FIELD STAFF, and/or queueing staff.
If a Playoff MATCH needs to be replayed as described in section
10.2 MATCH Replays, teams are notified of when the replay
will occur. A minimum 10-minute delay is provided for teams to reset their ROBOTS
prior to the replay unless all teams are ready sooner. The affected MATCH must
be replayed before the next round begins.
Table 10‑2 Typical Playoff MATCH schedule
|
Round
|
MATCH
|
Upper/
Lower
|
|
|
Gap
(min)
|
Next MATCH
(MATCH # (ALLIANCE color))
|
|
Blue
|
Red
|
Blue
|
Red
|
Winner
|
Loser
|
|
1
|
1
|
Upper
|
8
|
1
|
|
M7
(R)
|
M5
(R)
|
|
2
|
Upper
|
5
|
4
|
M7
(B)
|
M5
(B)
|
|
3
|
Upper
|
7
|
2
|
M8
(R)
|
M6
(R)
|
|
4
|
Upper
|
6
|
3
|
M8
(B)
|
M6
(B)
|
|
2
|
5
|
Lower
|
L2
|
L1
|
0:24
|
0:33
|
M10
(B)
|
|
|
6
|
Lower
|
L4
|
L3
|
0:15
|
0:24
|
M9
(B)
|
|
7
|
Upper
|
W2
|
W1
|
0:42
|
0:51
|
M11
(R)
|
M9
(R)
|
|
8
|
Upper
|
W4
|
W3
|
0:33
|
0:42
|
M11
(B)
|
M10
(R)
|
|
3
|
9
|
Lower
|
W6
|
L7
|
0:24
|
0:15
|
M12
(B)
|
|
|
10
|
Lower
|
W5
|
L8
|
0:42
|
0:15
|
M12
(R)
|
|
6-minute
break
|
|
4
|
11
|
Upper
|
W8
|
W7
|
0:27
|
0:36
|
M14
(R)
|
M13
(R)
|
|
12
|
Lower
|
W9
|
W10
|
0:27
|
0:18
|
M13
(B)
|
|
|
15-minute
awards break: Imagery, Gracious Professionalism, Team Spirit, and Rising
All Star
|
|
5
|
13
|
Lower
|
W12
|
L11
|
0:18
|
0:27
|
M14
(B)
|
|
|
15-minute
awards break: Autonomous, Creativity, Quality, and Industrial Design
|
|
Finals
|
14
|
|
W13
|
W11
|
0:18
|
0:48
|
M15
|
M15
|
|
15-minute
awards break: Innovation in Control, Excellence in Engineering, Team
Sustainability, Judges
|
|
Finals
|
15
|
|
W13
|
W11
|
0:18
|
0:18
|
M16*
|
M16*
|
|
15-minute
awards break: Rookie All Star, Dean's List, Engineering Inspiration**
|
|
Finals
|
16*
|
|
W13
|
W11
|
0:18
|
0:18
|
|
|
Awards:
Remaining awards, Finalists, Winners, and FIRST Impact Award
|
* if required
** Program Delivery Partners may choose to hold these
awards until after all MATCHES are complete.
10.6.2.1
Playoff MATCH ties
If final MATCH scores for both ALLIANCES are equal, the win
is awarded to the ALLIANCE per criteria listed in Table 10‑3.
Table 10‑3 Playoff MATCH Tiebreaker Criteria
|
Order
Sort
|
Criteria
|
|
1st
|
Cumulative MAJOR FOUL points
due to opponent rule violations
|
|
2nd
|
ALLIANCE LEAVE + AUTO CORAL
points
|
|
3rd
|
ALLIANCE BARGE points
|
|
4th
|
MATCH is replayed
|
10.6.2.2
Playoff Finals
Once a single ALLIANCE remains in each Upper and Lower
bracket, those ALLIANCES proceed to the Finals round. The first ALLIANCE to win
2 MATCHES in the Finals becomes the event’s Champions.
If a Finals MATCH ends in a tie score, the tie is not broken
using the criteria in Table 10‑3, the MATCH remains a tie. In the case
where an ALLIANCE hasn’t won 2 MATCHES after 3 MATCHES have been played
(because of tied MATCHES), the Playoffs proceed with up to 3 additional Finals MATCHES,
called Overtime MATCHES, until an ALLIANCE has won 2 Finals MATCHES. In the
case where the Overtime MATCH scores for both ALLIANCES are equal, the win for
that Overtime MATCH is awarded based on the criteria listed in Table 10‑3.
During the Playoff MATCHES an ALLIANCE CAPTAIN may elect to
replace one of its ROBOTS. The team whose ROBOT and DRIVE
TEAM replaces another ROBOT and DRIVE TEAM on an ALLIANCE during the Playoff MATCHES
is called the BACKUP TEAM.
In this situation, the ALLIANCE CAPTAIN has the option to
bring in the highest ranked team from the pool of available teams to join its ALLIANCE
for the following MATCH. The resulting ALLIANCE is then composed of 4 teams.
ALLIANCES submit LINEUPS (as described in section 10.6.4 LINEUPS) for each Playoff MATCH.
After the BACKUP TEAM’s first Playoff MATCH, the ALLIANCE’S LINEUP may consist
of any 3 of the ALLIANCE’S 4 teams.
10.6.3.1
BACKUP TEAM Coupons
Each ALLIANCE is allotted 1 BACKUP TEAM coupon during the
Playoff MATCHES. If two or more ROBOTS from the ALLIANCE become inoperable,
then the ALLIANCE must play the following MATCHES with only 2 (or even 1) ROBOTS.
Example: 3 teams, A, B and C, form an ALLIANCE going into
the Playoff MATCHES. The highest ranked team not on 1 of the 8 ALLIANCES is
Team D. During 1 of the Playoff MATCHES, Team C’s ROBOT suffers damage to its
mechanical arm. The ALLIANCE CAPTAIN decides to bring in Team D to replace Team
C in the next MATCH. The new ALLIANCE of Teams A, B, C, and D are successful in
advancing to the Finals and win the event. Teams A, B, C, and D are all
recognized as members of the Winning ALLIANCE and receive awards.
The Head REFEREE will not accept the BACKUP TEAM coupon
unless it lists the number of the team whose ROBOT is being replaced and is
initialed by the ALLIANCE CAPTAIN. Once a BACKUP TEAM coupon is submitted and
accepted by the Head REFEREE, the BACKUP TEAM coupon may not be withdrawn by
the ALLIANCE.
T607
*No BACKUP TEAM for replayed MATCHES.
An ALLIANCE may not request a BACKUP TEAM for a replayed MATCH. The sole
exception is if, in the judgment of the Head REFEREE, the replay is due to an ARENA
FAULT that rendered an ALLIANCE’S ROBOT inoperable.
Violation: The request is denied.
T608
*No BACKUP TEAMS for 1st MATCH.
An ALLIANCE may not request a BACKUP TEAM until after their first Playoff MATCH.
Violation: The request is denied.
T609
*BACKUP TEAMS play when called.
A BACKUP TEAM must be included in the LINEUP for the ALLIANCE’S next MATCH
following their recruitment.
Violation: The LINEUP is denied.
If the Head REFEREE is busy, and there is no designee, the ALLIANCE
CAPTAIN remains in the Question Box to report the LINEUP.
T610
*BACKUP TEAMS due 2 minutes before
the MATCH start time. The BACKUP TEAM Coupon must be submitted to the
Head REFEREE (or their designee) by the ALLIANCE CAPTIAN not later than 2
minutes before the expected MATCH start time in which the BACKUP TEAM is to
play.
Violation: The request is denied
If the Head REFEREE is busy, and there is no designee, the ALLIANCE
CAPTAIN remains in the Question Box to submit the BACKUP TEAM coupon.
10.6.3.2
BACKUP POOL
After the top ranked ALLIANCE has made their final pick
during ALLIANCE Selection, the lead queuer (or their designee) polls the
remaining eligible teams. In rank order, the lead queuer (or their designee)
will invite remaining teams to accept or decline a position in the BACKUP POOL,
i.e. the group of teams willing and able to join an ALLIANCE
during the Playoff MATCHES, if needed, until up to 8 teams accept.
T611
*Be there to be a BACKUP TEAM.
A team must be present after ALLIANCE Selection to accept the lead queuer’s (or
their designee) invitation to join the BACKUP POOL.
Violation: Team is ineligible to be a BACKUP TEAM.
T612
*Send a BACKUP TEAM Representative.
The top 2 ranked BACKUP TEAMS must send at least 1 STUDENT representative (and
optionally 1 additional STUDENT or mentor) to a designated area near the FIELD
for the duration of the Playoff MATCHES.
These 2 representatives are available to
answer questions and accept invitations to be a BACKUP TEAM from ALLIANCE
CAPTAINS. If 1 of these 2 teams joins an ALLIANCE or excuses themselves from
the BACKUP POOL, the next highest ranked team in the BACKUP POOL must provide
their representative. Once a BACKUP TEAM has declined an invitation to join an ALLIANCE,
it is no longer a member of the BACKUP POOL and ineligible to join another ALLIANCE.
Violation: VERBAL WARNING, plus the team is removed from
BACKUP POOL if the situation cannot be corrected within a reasonable amount of
time.
Some events may offer an area near the FIELD where the top
1 or 2 teams in the BACKUP POOL may choose to stage their ROBOT for quick and
easy access to the FIELD if recruited.
10.6.4
LINEUPS
Each ALLIANCE competing in a Playoff MATCH has the option to
submit a LINEUP, which lists the 3 teams participating in the MATCH
and their selected DRIVER STATIONS.
The LINEUP is kept confidential until the FIELD is set for
the MATCH at which point each ALLIANCE’S LINEUP appears on the Team Signs.
10.6.4.1
LINEUPS for 4-team ALLIANCES
If an ALLIANCE has 4 members (either because a 3-team ALLIANCE
has called a BACKUP TEAM or the event is the FIRST Championship), a
single representative from the team not on the LINEUP is allowed as a sixteenth
ALLIANCE member but must be a member of that team’s DRIVE TEAM. This additional
representative may only serve as a COACH.
10.6.4.2
Default LINEUP
T613
*LINEUPS due 2 minutes before the MATCH.
The ALLIANCE CAPTAIN must submit their LINEUP in writing to the Head REFEREE (or
their designee) 2 minutes before their expected MATCH start time.
Violation: Late LINEUPS are denied, and the ALLIANCE’S most
recent LINEUP is applied.
If the Head REFEREE is busy, and there is no designee, the ALLIANCE
CAPTAIN remains in the Question Box to report the LINEUP.
If no previous LINEUP exists, the ALLIANCE Lead is assigned
DRIVER STATION 2, 1st team selected is assigned DRIVER STATION 1, and the 2nd
team selected is assigned DRIVER STATION 3. If any of these 3 ROBOTS are unable
to play, the ALLIANCE must play the MATCH with only 2 (or even 1) ROBOT(s).
Example: 3 teams, A, B, and C form an ALLIANCE going into
the Playoff MATCHES. During one of the Playoff MATCHES, Team C’s ROBOT becomes
inoperable. The ALLIANCE decides to bring in Team D to replace Team C. Team C
repairs their ROBOT and may play in any subsequent Playoff MATCHES replacing
Team A, B, or D
If a BACKUP TEAM Coupon is accepted and the LINEUP for the
next MATCH is not submitted or it omits the BACKUP TEAM, then the ALLIANCE’S
most recent LINEUP is used with the BACKUP TEAM in the position populated by
the team for whom they’re substituting.
T614
*For replays, no changing LINEUPS
(mostly). If a MATCH must be replayed due to an ARENA FAULT, the LINEUP
for the replayed MATCH is the same as the original MATCH. The sole exception is
if, in the opinion of the Head REFEREE, the ARENA FAULT rendered a ROBOT
inoperable, in which case the LINEUP can be changed.
Violation: The new LINEUP is denied.
During the Playoff MATCHES and because of the distance
between the FIELD and the pit area, extra team members may be needed to
maintain and otherwise assist with the ROBOT between MATCHES. Each team is
permitted to have up to 3 additional pit crew members to help with needed ROBOT
repairs/maintenance.
The scheduling algorithm described in section 10.5.2 MATCH Assignment works to minimize teams playing in
back-to-back MATCHES. However, at events with fewer than 24 teams, back-to-back
plays may occur.
Multi-day events with 24 teams or fewer employ a modified
Playoff MATCH format. Instead of 8 ALLIANCES, these events proceed through ALLIANCE
SELECTION and the Playoff Tournament with the maximum number of complete 3-team
ALLIANCES that can be formed while leaving at least 1 BACKUP TEAM (e.g. a
24-team event creates 7 ALLIANCES, a 20-team event creates 6 ALLIANCES).
The Playoff Bracket remains as shown in Figure 10‑2, with any matchup against a non-existent
ALLIANCE resulting in a bye (i.e. automatic advancement to the next round). An ALLIANCE
assigned a bye-MATCH is invited, though not required, to practice together in a
null MATCH (i.e. it has no bearing on the Playoff tournament) during the
designated time in the Playoff schedule.
District points for Draft Order Acceptance (per section 11.1.2 ALLIANCE Selection Results) are awarded as if a full
set of ALLIANCES was selected (i.e. the 2nd selection of the 3-seed ALLIANCE
still receive 3 points regardless of how many ALLIANCES are formed).
Teams advance through the season depending on the events at
which they compete: Regional or District. This section details how District
teams advance from District qualifying events to their District Championship.
11.1 District
Events
District teams are ranked throughout the season based on the
points they earn at the first 2 home District events they attend, as well as at
their District Championship. Points are awarded to teams as follows:
Table 11‑1 District Point Assignment
|
Category
|
Points
|
|
Qualification Round
Performance
|
(For a typically sized
District event, this will result in a minimum of 4 points being awarded for
Qualification round performance. For events of all sizes, a maximum of 22
points will be awarded.)
|
|
ALLIANCE CAPTAINS
|
Equal to 17 minus the ALLIANCE
CAPTAIN number (e.g. 14 points for ALLIANCE #3 Captain)
|
|
Draft Order Acceptance
|
Equal to 17 minus the Draft
Order Acceptance Number (e.g. 12 points for the team that accepts the fifth
draft position, regardless of whether it was delayed per T605.)
|
|
Playoff Advancement
|
Points awarded based on team
participation in individual playoff rounds, and whether or not the ALLIANCE
advances. See section 11.1.3 Playoff Performance for details.
|
|
Judged Team Awards
|
10 points for FIRST
Impact Award
8 points each for Engineering
Inspiration and Rookie All Star Awards
5 points each for all other
judged team awards
|
|
Team Age
|
10 points for 2025 rookie
teams
5 points for 2024 rookie teams
|
Points earned at District Championships are multiplied by 3
and then added to points earned at District events, to determine the final
season point total for the team.
If there is a tie in the season point total between teams, the
higher ranked team will be determined using the following additional sorting
criteria:
Table 11‑2 District team sort criteria
|
Order
Sort
|
Criteria
|
|
1st
|
Total Playoff Performance
Points
|
|
2nd
|
Best Playoff Points at a
single event
|
|
3rd
|
Total ALLIANCE Selection
Results Points
|
|
4th
|
Highest Qualification Round
Seed or Draft Order Acceptance (i.e. Highest ALLIANCE Selection points at a
single event)
|
|
5th
|
Total Qualification Round
Performance Points
|
|
6th
|
Highest Individual MATCH
Score, regardless of whether that score occurred in a Qualification or
Playoff MATCH
|
|
7th
|
Second highest Individual MATCH
Score, regardless of whether that score occurred in a Qualification or
Playoff MATCH
|
|
8th
|
Third highest Individual MATCH
Score, regardless of whether that score occurred in a Qualification or
Playoff MATCH
|
|
9th
|
Random Selection
|
11.1.1 Qualification Round
Performance
The calculation of Qualification performance points is done
using the equation (an inverse error function) in Table 11‑1. The equation utilizes the following
variables:
-
R – the qualification rank of the team at the event at the
conclusion of Qualification MATCHES (as reported by FMS)
-
N – the number of FIRST Robotics Competition teams
participating in the Qualification rounds at the event
-
Alpha (α) – a static value (1.07) used to standardize the
distribution of points at events
This formula generates an approximately normal distribution
of Qualification Round Performance points at an event, based on rank, with most
teams getting a moderate number of points, and fewer teams getting the highest
or lowest numbers of points available.
Table 11‑3 displays sample Qualification Round
Performance points for variously ranked teams at a 40-team event. The system
will automatically generate the appropriate points for each team based on their
rank and the number of teams at the event.
Table 11‑3 Sample Qualification Round point
assignments
|
Rank
|
1
|
2
|
3
|
4
|
…
|
19
|
20
|
21
|
…
|
37
|
38
|
39
|
40
|
|
Points
|
22
|
21
|
20
|
19
|
…
|
13
|
13
|
12
|
…
|
6
|
6
|
5
|
4
|
11.1.2 ALLIANCE Selection
Results
This attribute measures both individual team qualification
round seeding performance and recognition by peers.
ALLIANCE CAPTAINS are recognized based on their
qualification round seeding rank. This rank is a result of the rules of the
game, which typically incorporate several team performance attributes, and are
designed to eliminate ties in rank. Non-ALLIANCE CAPTAINS are rewarded based on
peer recognition. To be invited to join an ALLIANCE, a team’s peers have
decided that the team has attributes that are desirable. Giving points for ALLIANCE
selection also supports come-from-behind teams. A team taking several MATCHES
to optimize their performance may be recognized as a late bloomer by a top
seeded team, even if that performance isn’t reflected in the rankings because
of poor performance in early MATCHES. These points also have the potential to
recognize teams employing a minority strategy with their ROBOT. Teams with
unique or divergent ROBOT capabilities that complement the strengths of other ALLIANCE
members may be selected to fill a strategic niche.
Note also that ALLIANCE CAPTAINS are given the same number
of points as the team drafted in the same sequence. For example, the third ALLIANCE
CAPTAIN gets the same number of points as the third draft. Numerical analysis
supports the idea that ALLIANCE CAPTAINS are about as strong in ROBOT
performance as equivalently drafted teams. As an additional minor benefit,
awarding the same points for ALLIANCE CAPTAINS and equivalent drafts lubricates
the acceptance of draft offers between ALLIANCE CAPTAINS, which gives teams out
of the top 8 the chance to experience being ALLIANCE CAPTAINS themselves.
11.1.3
Playoff Performance
This attribute measures team performance as part of an
ALLIANCE.
Teams that advance to at least MATCH 12 earn Double
Elimination (DE) Points per the formula below, where β is defined in Table 11‑4.
Table 11‑4 Double Elimination Points, β
values
|
ALLIANCE
Finish
|
β
|
|
1st Place
(Winners)
|
20
|
|
2nd Place (Finalists)
|
20
|
|
3rd Place (loser
of MATCH 13)
|
13
|
|
4th Place (loser
of MATCH 12)
|
7
|
In most cases, unless a BACKUP is recruited, a team plays
100% of the DE MATCHES won by their ALLIANCE, thus their DE Points simply equal
β. If a team does not play 100% of the DE MATCHES won by their ALLIANCE, their
DE Points equal their β value multiplied by the percentage of DE MATCHES won by
their ALLIANCE in which that team participated. If the result is not a whole
number, the value is rounded up to the nearest integer.
Teams on the winning ALLIANCE are awarded additional Finals
Points, which are 5 points for each Finals MATCH won and in which the team
participated, up to a maximum of 10 points.
For example, if Team X’s ALLIANCE wins the event, but Team
X only played in 2 MATCHES won by their ALLIANCE, MATCH 13 and Final 1, Team
X’s Playoff Performance points are 20 * (1/5) + 5 = 9 points.
The maximum number of Playoff Performance Points a team can
earn is 30 (20 DE points + 10 Finals Points).
11.1.4
Awards
This attribute measures team performance with respect to
team awards judged at the event.
The points earned for team awards in this system are not
intended to capture the full value of the award to the team winning the award,
or to represent the full value of the award to FIRST. In many ways, the
team’s experience in being selected for awards, especially the FIRST
Impact Award, the Engineering Inspiration Award, and the Rookie All Star Award
(which is optional for District Championship events), is beyond measure, and
could not be fully captured in its entirety by any points-based system. Points are
being assigned to awards in this system only to help teams recognize that FIRST
continues to be “More than Robots®,” with the emphasis on our
cultural awards, and to assist in elevating award-winning teams above
non-award-winning teams in the ranking system.
Teams only get points for team awards judged at the event.
If an award is not judged, is not for a team (e.g. the Dean’s List Award) or is
not judged at the event (e.g. Safety Animation Award, sponsored by UL), no
points are earned.
11.1.5 Team Age
This attribute recognizes the difficulty in being a rookie
or relatively new team.
Points are awarded to 2024 and 2025 rookie teams in
recognition of the unique challenges teams face in those early years, and to
increase the chance that they will make it to the District Championship to
compete with their ROBOTS. Like our dedicated Rookie awards, these additional
points are intended to recognize and motivate newer participants in FIRST
Robotics Competition. These points are awarded once at the beginning of the
season. Rookie year is calculated based on the year in which FIRST
recognizes the team as a rookie.
District teams neither earn points for their actions at any
Regionals, nor are eligible for any FIRST Championship qualifying
benefits at that Regional (awards, etc.).
A team competing in a District qualifies for their District
Championship by meeting 1 of the following criteria:
A.
District FIRST Impact Award Winner,
B.
District Ranking (based on total points earned at their first 2 home
District events as detailed in section 11.1 District Events),
Teams do not earn points at third or subsequent District
events, nor at any inter-district or Regional events at which they compete
during the season.
If a team declines an invitation to the District
Championship, the next highest uninvited team on the list is invited, and so
on, until the event capacity is filled.
C.
District Engineering Inspiration winner (qualifies to compete for the
award only), and
D.
District Rookie All Star winner (qualifies to compete for the award
only).
The capacity of each District Championship is shown in Table 11‑5. Each District determines the number of
teams that qualify for their District Championship. These limits are based on
factors including but not limited to the total number of teams in the District,
available venue capacity, etc.
Table 11‑5 2025 District Championship
Capacities
|
District
Championship
|
Capacity
|
Divisions
|
|
FIRST Chesapeake
District Championship
|
54
|
1
|
|
FIRST in Michigan State
Championship
|
160
|
4
|
|
FIRST in Texas District
Championship
|
90
|
2
|
|
FIRST Indiana State
Championship
|
38
|
1
|
|
FIRST Israel District
Championship
|
45
|
1
|
|
FIRST Mid-Atlantic District Championship
|
60
|
1
|
|
FIRST North Carolina State Championship
|
40
|
1
|
|
FIRST Ontario Provincial Championship
|
100
|
2
|
|
FIRST South Carolina State Championship
|
28
|
1
|
|
New England District Championship
|
96
|
2
|
|
Pacific Northwest District Championship
|
50
|
1
|
|
Peachtree District State Championship
|
45
|
1
|
If a District Championship has too many teams to allow all
teams 12 Qualification MATCHES, then the event hosts multiple divisions. These
events have 2 or 4 divisions (based on the number of teams participating, see Table 11‑5) with approximately 40–60 teams in each
division. Teams are assigned divisions by FIRST using a process
developed by FIRST in Michigan and balances need for accessible seating
between Divisions.
The process employs a “brute force iterative randomizer” and
is executed as follows:
1. The
district team list is sorted in order of cumulative district points earned as described
in section 11.1 District Events.
2. The
list is divided into quartiles based on rank (e.g. the first quartile has the
top 25% ranked teams). If the total number of teams is not evenly divisible by
4 times the number of divisions, additional teams are distributed to quartiles
4, then 2, then 3.
3. Division
assignments are randomly generated using equal contributions from each
quartile.
4. 3
criteria are calculated for each division:
a. average
strength: the arithmetic mean of the district point values of teams in a
division
b. distribution
of strength: the Signal to Noise Ratio (SNR) of the district point values of
teams in a division. SNR is calculated as follows:
=
arithmetic mean of the district points in a division
σ = standard deviation of the
district points in a division
c. distribution
of strength for “top” teams: The SNR of the district point values of teams in
the first quartile of a division
5. The
3 criteria for each division are compared to the other division(s). If the
difference between the division’s value and any other division’s value exceeds
the limits in Table 11‑6, the criteria is not met.
Table 11‑6 District Championship division evaluation
limits
|
|
2
divisions
|
4
divisions
|
|
Average strength
|
1
|
2
|
|
Distribution of strength
|
1
|
2.5
|
|
Distribution of strength
for “top” teams
|
1.5
|
2
|
6.
If all 3 criteria met, event organizers publish the assignments. If any
of the 3 criteria are not met, assignments are rejected, and the process
returns to Step 3.
In these cases:
-
Division winning ALLIANCES play each other in District
Championship Playoffs, employing the brackets shown in Figure 11‑1 and Figure 11‑2 (and detailed in Table 11‑7) that corresponds to their District,
until a winning ALLIANCE for the event is determined.
Figure 11‑1 4-division District Championship
Playoff Bracket
Figure 11‑2 2-division District Championship
Playoff Bracket
Table 11‑7
District Championship 4-ALLIANCE Playoff MATCH schedule
|
Round
|
MATCH
|
Upper/
Lower
|
|
|
Gap
(min)
|
Next MATCH
(MATCH # (ALLIANCE color))
|
|
Blue
|
Red
|
Blue
|
Red
|
Winner
|
Loser
|
|
1
|
1
|
Upper
|
B
|
A
|
|
M3 (R)
|
M4 (R)
|
|
2
|
Upper
|
D
|
C
|
M3 (B)
|
M4 (B)
|
|
15-minute break
|
|
2
|
3
|
Upper
|
W2
|
W1
|
17m
|
24m
|
M6 (R)
|
M5 (R)
|
|
4
|
Lower
|
L2
|
L1
|
24m
|
31m
|
M5 (B)
|
|
|
15-minute
break
|
|
3
|
5
|
Lower
|
W4
|
L3
|
17m
|
24m
|
M6 (B)
|
|
|
15-minute break
|
|
Finals
|
6
|
|
W5
|
W3
|
17m
|
44m
|
M7
|
M7
|
|
15-minute break
|
|
Finals
|
7
|
|
W5
|
W3
|
17m
|
17m
|
M8*
|
M8*
|
|
15-minute break
|
|
Finals
|
8*
|
|
W5
|
W3
|
17m
|
17m
|
|
* if required
-
Each team on a Champion ALLIANCE of a 2-Division District
Championship Playoff tournament earns 10 points.
-
For a 4-Division District Championship Playoff tournament, each
team on a Champion ALLIANCE earns 20 points and each team on a Finalist ALLIANCE
receives 10 points.
-
If any of these ALLIANCES has recruited a BACKUP TEAM, these
points are divided amongst the teams as described in section 11.1.3 Playoff Performance.
-
If an ALLIANCE in a District Championship Playoff has not yet
recruited a BACKUP TEAM per section 10.6.3 BACKUP TEAMS, the ALLIANCE CAPTAIN may bring in only
the highest ranked team from their division’s BACKUP POOL to join its ALLIANCE.
11.5 FIRST
Championship Eligibility
Each District determines the number of Dean’s List
Finalists, FIRST Impact Awards, Rookie All Star Awards, and Engineering
Inspiration Awards to present at their District Championship, within a range
established by FIRST. The team counts are based on the team
representation of the respective District at the Championship. For the awards,
ranges are developed by using ratios agreed upon by FIRST and District
Leadership. These ranges allow each District to represent their own community
as they see fit.
·
For the FIRST Impact Award, the ratios range from one FIRST
Impact Award team for every 18 Championship District teams to one FIRST
Impact Award team for every nine Championship District teams.
·
For the Dean’s List Finalist Award, the ratios range from one
Dean’s List Finalist for every nine Championship District teams to one Dean’s
List Finalist for every six Championship District teams.
·
All Districts, regardless of FIRST Championship Slot
allocation, may award one or two Engineering Inspiration and Rookie All-Star
Awards.
The following teams competing in the District model earn a
Merit-Based Qualifying slot:
·
District Championship
o
FIRST Impact Award Winners
o
Engineering Inspiration Award Winners
o
Rookie All-Star Winners (the judges can decide if they present
this award or not)
o
Winning Alliance members
·
as many teams in District-points total order to fill the
Allocated FIRST Championship slots granted per the table below.
Districts receive the percentage of 'available slots' at FIRST
Championship, rounded up to the nearest whole slot, equal to the percentage of
teams they have in their District compared to the total of all FIRST
Robotics Competition teams. 'Available slots' are calculated by taking the
total number of slots at FIRST Championship and subtracting the number
of pre-qualified teams. This overall calculation uses a ‘snapshot’ of teams
that have registered and paid as of three weeks after initial season payment was
due.
Table 11‑8 District FIRST Championship and awards
allocations
|
District
|
Allocated
FIRST Championship Slots
|
FIRST Impact Award Winners
|
Dean's
List Award Finalists
|
Engineering
Inspiration Award Winners
|
Rookie
All-Star Award Winners
|
Woodie
Flowers Award Finalists
|
|
FIRST Chesapeake
|
17
|
2
|
3
|
2
|
1
|
2
|
|
FIRST in Michigan
|
80
|
4
|
13
|
1
|
2
|
3
|
|
FIRST in Texas
|
28
|
2
|
5
|
2
|
2
|
2
|
|
FIRST Indiana
Robotics
|
12
|
1
|
2
|
1
|
1
|
1
|
|
FIRST Israel
|
10
|
1
|
2
|
1
|
1
|
1
|
|
FIRST Mid-Atlantic
|
23
|
2
|
4
|
2
|
1
|
2
|
|
FIRST North Carolina
|
14
|
1
|
2
|
2
|
2
|
1
|
|
FIRST South Carolina**
|
5
|
1
|
2
|
1
|
1
|
1
|
|
NE FIRST
|
31
|
3
|
5
|
2
|
1
|
2
|
|
Ontario
|
22
|
2
|
4
|
1
|
1
|
2
|
|
Pacific Northwest
|
22
|
2
|
4
|
2
|
1
|
2
|
|
Peachtree
|
12
|
1
|
2
|
2
|
1
|
1
|
*Due to its size, FIRST South Carolina does not have
enough Championship slots for this method to work. The following teams will
receive automatic invitations to the 2025 FIRST Championship from the FIRST
South Carolina State Championship:
·
Winning Alliance Captain
·
Winning Alliance First Pick
·
FIRST Impact Award Winner
·
Engineering Inspiration Award Winner
·
Next highest District Points
Teams advance through the season depending on the events at
which they compete: Regional or District. This section details how Regional
teams advance from Regional events to FIRST Championship.
Regional teams are ranked throughout the season based on the
points they earn at the first 2 Regional events they attend. Points are awarded
to teams as follows:
Table 12‑1 Regional Point Assignment
|
Category
|
Points
|
|
Qualification Round
Performance
|
(For a Regional event, this
will result in a minimum of 3 points being awarded for Qualification round
performance. For events of all sizes, a maximum of 22 points will be
awarded.) See section 11.1.1 Qualification Round Performance for details.
|
|
ALLIANCE CAPTAINS
|
Equal to 17 minus the ALLIANCE
CAPTAIN number (e.g. 14 points for ALLIANCE #3 Captain.) See section 11.1.2 ALLIANCE Selection Results for details.
|
|
Draft Order Acceptance
|
Equal to 17 minus the Draft
Order Acceptance Number (e.g. 12 points for the team that accepts the fifth
draft position, regardless of whether it was delayed per T605.)
|
|
Playoff Advancement
|
Points awarded based on team
participation in individual playoff rounds, and whether or not the ALLIANCE
advances. See section 11.1.3 Playoff Performance for details.
|
|
Judged Team Awards
|
45 points for FIRST
Impact Award
28 points for Engineering
Inspiration Award
8 points for Rookie All Star
Award
5 points each for all other
judged team awards
See section 12.1.1 Awards for full details.
|
|
Team Age
|
10 points for 2025 rookie
teams
5 points for 2024 rookie teams
See section 12.1.2 Team Age for full details.
|
If there is a tie in the event point total between teams, the
higher ranked team will be determined using the following additional sorting
criteria:
Table 12‑2 Regional team sort criteria
|
Order
Sort
|
Criteria
|
|
1st
|
Best Playoff Points at a
single event
|
|
2nd
|
Highest Qualification Round
Seed or Draft Order Acceptance (i.e. Highest ALLIANCE Selection points at a
single event)
|
|
3rd
|
Best Qualification Round
Performance Points
|
|
4th
|
Highest Individual MATCH
Score, regardless of whether that score occurred in a Qualification or
Playoff MATCH
|
|
5th
|
Second highest Individual MATCH
Score, regardless of whether that score occurred in a Qualification or
Playoff MATCH
|
|
6th
|
Third highest Individual MATCH
Score, regardless of whether that score occurred in a Qualification or
Playoff MATCH
|
|
7th
|
Random Selection
|
12.1.1
Awards
This attribute measures team performance with respect to
team awards judged at the event.
Much of what is stated in section 11.1.4 Awards is also relevant to Regional events. Points
are assigned to awards to recognize that FIRST continues to be “More
than Robots®” and to elevate award-winning teams above
non-award-winning teams in the ranking system. These points are not intended to
capture the true value of these awards as that value is truly immeasurable.
Point values for some culture awards (FIRST Impact
Award, Engineering Inspiration) are higher for Regional events than District
events because Districts reward those teams with slots at an intermediate level
of competition: their District Championship. Regional teams do not have an
intermediate competition level and FIRST wants those teams to have an
opportunity to share their stories and celebrate their success outside of their
regional event.
12.1.2
Team Age
This attribute recognizes the difficulty in being a rookie
or relatively new team.
Much of what is stated in section 11.1.5 Team Age is also relevant to Regional events. Points
are awarded to 2024 and 2025 rookie teams. Unlike in the District events where
these points are awarded once per season, for Regional events these points are
awarded at each event they attend. Awarding these points at every event will
assist rookies with earning one of the three per-event qualification slots
starting in 2026. Rookie year is calculated based on the year in which FIRST
recognizes the team as a rookie.
12.2
FIRST Championship Eligibility
A team competing in a Regional in 2025 qualifies for the FIRST
Championship by meeting 1 of the following criteria:
A.
Regional FIRST Impact Award Winner,
B.
Regional Engineering Inspiration Winner,
C.
Winning Alliance: Captain,
D.
Winning Alliance: 1st Pick, or
E.
Invited from the Regional Pool
All Regional event teams not already qualified for the FIRST
Championship are ranked together in the “Regional Pool” based on the points
earned from their first two regional events. This list helps ensure the top
performing teams across events qualify for the FIRST Championship and
allows for the consideration of performance across multiple events for teams. Awarding
points at the first two events, with a projection if a team has only played one
event, rewards consistent performance over the season without being punitive to
single-event teams.
The global Regional
Rankings webpage shows all regional teams in rank order by their assigned
points. Teams are invited to the FIRST Championship from the Regional Pool on a
weekly basis beginning after Week 2.
Our goal is to release enough slots each week so that the
same proportion of Championship slots have been filled as events have been
completed. For example, 47 of 69 (~68%) Regional Events will be completed after
Week 4, and we plan to have approximately the same percentage of Regional slots
filled by that point as well.
12.3.1 Single-event team
points calculation
If a team has only played one event at the end of the
interval, they are awarded second event points using this formula:
This model is based on a regression of Event 1 vs Event 2
points in 2023 and 2024. This calculation projects how many points would be
earned by the average team who earned X points at their first event. If the
result is not a whole number, the value is rounded to the nearest integer.
At the 2025 FIRST Championship presented by BAE
Systems, teams are split into 8 divisions. The process used to assign teams to
their division is as follows:
1. Teams
requesting accessible seating are split amongst the divisions.
2. Rookies
are randomized and then assigned sequentially to divisions, skipping a division
for each rookie assigned in Step 1 (i.e. a team in Division 1, a team in
Division 2, a team in Division 3, a team in Division 4, a team in Division 5, a
team in Division 6, a team in Division 7, a team in Division 8, then back to
Division 1 again, until Rookies are all assigned to a division).
3. Step
2 is repeated with veteran teams, with additional assignments as necessary to balance
the total teams in each division.
Each division plays a standard tournament as described in section
10.5 Qualification MATCHES and section 10.6 Playoff MATCHES to produce the division Champions.
Those 8 division Champions proceed to the Championship Playoffs, on the
Einstein FIELDS, to determine the 2025 FIRST Robotics Competition
Championship Winners, per section 13.4 FIRST Championship Playoffs.
Details on how teams earn eligibility to attend the FIRST
Championship can be found in section 11.5 FIRST Championship Eligibility and section 12.2 FIRST Championship Eligibility. Teams that are
pre-qualified can be found on the FIRST Championship eligibility webpage.
There is no provision for BACKUP TEAMS at the FIRST
Championship.
Instead, before each division Playoff Tournament, ALLIANCES
are selected per the process as described in section 10.6.1 ALLIANCE Selection Process, however the process
continues with a third round of selection as follows.
Round 3: The same method is used for each ALLIANCE
CAPTAIN’S third choice except the selection order is reversed again, with ALLIANCE
1 picking first and ALLIANCE 8 picking last. This process results in 8 ALLIANCES
of 4 teams each.
ALLIANCES may start with any 3 of the 4 ROBOTS on their ALLIANCE
during division Playoff MATCHES and during the Championship Playoffs. ALLIANCES
submit LINEUPS for their MATCHES as described in section 10.6.4 LINEUPS.
FIRST distributes buttons to the ALLIANCE CAPTAINS
during the ALLIANCE CAPTAIN meeting, which takes place on the division FIELDS.
These buttons provide the necessary access to the ARENA for pit crew members.
C301
*Wear your buttons.
Only team members wearing proper buttons are allowed on the ARENA floor during
division and Playoff MATCHES.
Violation: MATCH won’t start until the situation is
corrected. Those not displaying identification must leave the ARENA.
Teams should assume they may be chosen for an ALLIANCE and
think about the logistics of button distribution and set a plan prior to the ALLIANCE
selection process. It is each ALLIANCE CAPTAIN’S responsibility to distribute
buttons to their pit crew members.
13.4
FIRST Championship Playoffs
The 8 division Champions play a Double Elimination style
tournament as described in section 10.6 Playoff MATCHES to determine the 2025 FIRST Robotics
Competition Champions. Exact MATCH timing is provided to FIRST
Championship Playoff teams. ALLIANCES are paired as shown in Figure 13‑1.
Figure 13‑1 FIRST Championship playoff
bracket
During the Einstein Finals, if the MATCH score of each ALLIANCE
is equal, the MATCH is replayed. In this circumstance, the LINEUP may be
changed.
FIRST is committed to Equity, Diversity, and
Inclusion and as such, FIRST strives to make reasonable accommodations
for persons with disabilities that request accommodation. If a participant
needs an accommodation for an event, please talk to a volunteer at the event or
contact your local leadership before the event so they can help ensure the
accommodation is provided. Local leadership may make exceptions to event rules
to allow for reasonable accommodations given the exceptions do not create an
undue hardship or cause safety concerns.
Rules around safety and security within this section are
minimum requirements, and Program Delivery Partners are able to implement
increased restrictions due to local or venue requirements (e.g. requiring
badging for all attendees, reserving seating for accessibility, etc.). Partners
should communicate additional local requirements early enough to allow teams to
plan.
Safety is always paramount, and many rules are intended to
establish norms at each event that will mitigate injury risk to all
participants.
Event staff have the final decision authority for all
safety-related issues within a venue.
The rules below apply throughout an event, i.e. from when
Load-In begins to when Load-Out is complete.
Universal Violation Note: A violation of any Event Rule will
result in a VERBAL WARNING. Egregious or subsequent violations will be
addressed by the Head REFEREE, the Lead Robot INSPECTOR (LRI) and/or Event
Management. Teams should note that egregious and frequent violations may be
shared with the Judge Advisor which could lead to disqualification from awards.
Additional rule specific violations, if applicable, are
listed with their corresponding rule.
E101
*Personal safety comes first.
All team members must observe the following safety practices throughout the
event:
A.
wear safety glasses (only ANSI-approved, UL Listed, CE EN166 rated,
AS/NZS certified, or CSA rated non-shaded) while in and around the playing
FIELD and in the pit area. Lightly tinted lenses are permitted provided eyes
are clearly visible to others, but reflective lenses are prohibited.
Accommodations will be made for participants that require tinted safety
glasses. The only exception is for teams in their first 10 minutes of their
load in and for the first 10 minutes pits are open each day of the event as
long as they’re not working on the ROBOT or setting up their pit.
B.
wear closed toed/heeled shoes.
C.
tie back long hair while working on or around a ROBOT or ROBOT related
materials.
D.
wear appropriate clothing.
E.
walk in the venue.
F.
health and safety requirements in place for that event (e.g. mask
wearing).
For more information about safety at FIRST Robotics
Competition events, please reference the Safety Manual.
E102
*Be nice. All
participants must be gracious and professional at all times while attending FIRST
Robotics Competition events. Uncivil behavior toward any participants is not
tolerated.
Examples of inappropriate behavior include, but are not
limited to
A. use of offensive language or other uncivil conduct,
B. intentionally blocking the view of other participants or
spectators for an extended period (team members momentarily holding up team
signs while directly supporting their team is not considered a violation of
this rule.), and
C. jamming or interfering with the remote sensing capabilities
of a ROBOT or the FIELD while in open-access spectator seating areas.
Examples of remote sensing capabilities include, but are
not limited to, vision systems, acoustic range finders, sonars, and infrared
proximity sensors.
Use of imagery that, to a reasonably astute observer,
mimics the AprilTags employed on the FIELD is a violation of this rule.
Examples of particularly contemptible behavior that may
result in ejection from the event include, but are not limited to, the
following:
A. assault, e.g. throwing something that hits another person
(even if unintended),
B. threat, e.g. saying something like “if you don’t reverse
that call, I’ll make you regret it,”
C. harassment, e.g. badgering someone with no new information
after a decision’s been made or a question’s been answered,
D. bullying, e.g. using body or verbal language to cause
another person to feel inadequate,
E. insulting, e.g. telling someone they don’t deserve to be on
a team,
F. swearing at another person (versus swearing under one’s
breath or at oneself), and
G. yelling at another person(s) in anger or frustration.
E103
*Children with adults, please.
Children under 12 must be accompanied in the pits by an adult at all
times.
E104
*Respect the venue. Teams
may not damage the venue, including but not limited to bleachers, floors,
walls, railings, etc., in any way.
E105
*Teams must check in. An
adult team member must check in at the Pit Administration station no later than
90 minutes before Qualification MATCHES are scheduled to start.
Violation: Teams will be contacted in their pit. Failure to
Check-In may result in a team not participating in the event.
Event check-in takes place at the Pit Administration
station the evening before and/or the first morning of each event.
Once a team’s consent and release forms are submitted at
Pit Administration, each team will receive their DRIVE TEAM & Safety
Captain buttons.
E106
*Some event resources for
event teams only. Only teams registered for an event may use that
event’s Competition FIELD, Practice Field, Spare Parts, Machine Shop, and
Inspection. Host teams supplying Practice Field elements and/or Machine Shop
resources may use them, however teams registered for that event must be granted
priority.
E107
*Work in designated areas
only. At the event venue, teams may only produce FABRICATED ITEMS as
follows:
A.
in their pit area,
B.
in another team’s pit area with permission from that team,
C.
while queued for a MATCH or Practice Field (given space constraints,
extra scrutiny regarding safety is required),
D.
any area designated by Event Staff (e.g. Playoff Pit Area, etc.), or
E.
as permitted at provided machine shops that are available to all teams.
E108
*Some things don’t belong at
events. Do not bring or use the following:
A.
skateboards
B.
‘hoverboards’
C.
drones
D.
bottled gas tanks (e.g. helium)
E.
noisy devices or noisemakers, such as floor stompers, whistles and/or
air horns
F.
walkie-talkies
G.
scooters, except for those used for accommodations
E109
*Don’t arrange for additional utilities.
Do not arrange for power, internet access, or phone lines from venue service
providers or attempt to use venue internet connections reserved for event
purposes (e.g. the FIELD Management System or web casting).
E110
*Don’t sell stuff.
Teams may not conduct sales at an event. This includes, but is not limited to,
raffle tickets, food, hats, shirts, candy, water, soft drinks, fruit, or any
promotional products.
E111
*Don’t give out food.
Teams may not distribute food to others at an event.
E112
*Make FIRST loud, but
with restrictions. Do not invite or bring live bands to play in the
audience. Do not play loud music.
E113
*Hang banners with care.
Be respectful when hanging your banners.
A.
Do not cover or move other team or sponsor signs already in place.
B.
Share the available space fairly with other teams.
C.
Do not obstruct the view of spectators.
D.
Get permission from the Event Coordinator before hanging banners outside
of your pit.
E.
Hang signs and banners in a safe manner.
F.
Banners hung outside team pits must not be larger than 25 ft.2
(2.3 m2).
We encourage teams to bring team flags and/or signs for
display in their pits and/or the playing FIELD area.
To find your Event Coordinator, inquire at the Pit
Administration desk.
Respect venue-specific rules regarding sign location and
hanging methods. At the end of the event, safely remove all signs and anything
used to hang the signs (tape, string, etc.).
E114
*Limit flag and flagpole size.
Flags and flagpoles may not be of unreasonable size and weight.
As a guideline, reasonable flags are less than 3 ft. by 5 ft.
(~91 cm by 152 cm) in size and weigh less than 2 lbs. (~907g). Reasonable flagpoles
may not be more than 8 ft. (~243 cm) long and weigh less than 3 lbs. (~1360g).
E115
*No firearms. Firearms
are prohibited at all FIRST events for all FIRST programs,
including without limitation, all official FIRST Events posted here. This policy
does not apply to law enforcement or venue security personnel.
E116
*Only COTS batteries allowed.
Teams may only bring COTS batteries to events. Output wires or connectors may
be modified as long as no safety systems are compromised.
Violation: Teams will be asked to remove or not bring in the
batteries.
E117
*Enter only 1 ROBOT.
Each registered FIRST Robotics Competition team may enter only 1 ROBOT
(or “robot,” a ROBOT-like assembly equipped with most of its drive base, i.e.
its MAJOR MECHANISM that enables it to move around a FIELD) into a 2025 FIRST
Robotics Competition Event.
“Entering” a ROBOT (or robot) into a FIRST Robotics Competition
means bringing it to or using it at the event such that it’s an aid to your
team (e.g. for spare parts, judging material, or for practice).
While “most of its drive base” is a subjective assessment,
for the purposes of this rule, an assembly whose drive base is missing all
wheels/treads, gearboxes, and belts/chains is not considered a “ROBOT.” If any
of those COMPONENTS are incorporated, the assembly is now considered a “ROBOT.”
This rule does not prohibit teams from bringing in ROBOTS
from other FIRST programs for the purposes of awards presentations or
pit displays.
Some events host a machine shop, open during specific hours
(see the event’s agenda), to help teams with repair and fabrication of their
ROBOT. Machine shops are typically sponsored by NASA or local organizations.
While the machine shops vary, FIRST strives to have welding and a
variety of high-powered tools available at all events.
In most cases, the machine shop is on site and readily
accessible to all teams. If a team attends an event where the Machine Shop is
off-site, volunteers are in place to transport the ROBOT or parts to and from
the machine shop. In this case, a team fills out a Machine Shop Request Form
that travels with the ROBOT or parts, so the machine shop staff and volunteers
can follow their directions. The event should set up a method of communication
between the venue and off-site machine shop in case there are any questions.
E201
*The ROBOT goes alone to
off-site machine shops. Team members may not travel to off-site machine
shops with the ROBOT being transported by volunteers.
Teams may travel to the off-site machine shop on their own,
either by walking or using their own vehicle, but all STUDENT team members must
be accompanied by an adult at all times. Teams should strongly consider
including a third team member per the FIRST Youth Protection Program guidelines.
E301
*No wireless communication.
Teams may not set up their own 802.11a/b/g/n/ac/ax/be wireless communication
(e.g. access points or ad-hoc networks) in the venue.
A wireless hot spot created by a cellular device, camera,
smart TV, etc. is considered an access point.
Some smart TVs have access points enabled by factory
default. Please make sure that functionality is disabled for any TVs brought to
the event.
E302
*Don’t interfere with wireless
networks. Participants may not interfere, attempt to interfere, or
attempt to connect with any other team or FIRST wireless communication
except as expressly allowed for purposes of communicating with their team’s
ROBOT on the FIELD or Practice Field.
Teams are encouraged to report suspected wireless security
vulnerabilities to the FIRST Technical Advisor (FTA) if at the event or
to FIRST via customerservice@firstinspires.org.
Violation: Subsequent violations may lead to dismissal from
event and/or legal action based on applicable laws.
E303
*Tethered operation outside
FIELDS/Practice Fields. ROBOTS may only be operated by tether when
outside the FIELD or Practice Field.
Events set specific time frames, published on the event’s
schedule, in which teams are invited to load their ROBOT and equipment into
their pit areas before pits officially open.
Load-In can be stressful for teams and volunteers, which can
be mitigated by preparation and planning. Unanticipated factors, like traffic
or weather, can change a team’s scheduled arrival time, making the process
difficult. The most important things a team should remember are to be safe,
gracious, and professional. Teams who experience smooth and easy Load-Ins are
encouraged to check with others to see if they can help and make their
experience as positive as possible.
E401
*Load in during Load-In. Teams
may not bring the ROBOT or ROBOT elements into the event after the designated
Load-In period. Exceptions are as follows:
A.
exceptions listed in R304
B.
raw stock
C.
COTS items
D.
gearboxes attached to associated motor(s)
E.
assembled wheels
F.
exceptional circumstances that result in a team not being able to make
the Load-In time and has made arrangements with Event Management.
There are no rules that explicitly restrict items that may
be brought into the venue during the designated Load-In period.
If an event does not have a designated Load-In period on
its Public Schedule, the designated Load-In period begins when pits open and
ends when opening ceremonies start.
During Load-In, teams are not limited to a single trip, and
are encouraged to be as efficient and safe as possible.
Violation: Item will not be permitted into venue.
E402
*Load-In person limit is 5. Only
5 team members (one of which must be an adult) may be in the pit area during
any Load-In period prior to pits opening.
Violation: Extra team members must leave the venue.
E403
*Load-In Restrictions. The
only team permitted activities during load in are:
A.
bringing materials into their pit area.
B.
ROBOT and BUMPER weighing (if available at your event), including any
necessary BUMPER installation or removal
C.
Early Pit Setup (if available at your event)
Violation: Teams will be asked to leave the pit area.
E404
*Pit must be left in a safe
state. Teams must have their pits in a safe state by the time pits close
(even if some tasks are left undone).
E405
*Once done, head out. Unless
assisting other teams per the introductory language in this section, teams must
leave the venue once finished delivering materials (or, in the case of Early
Pit Setup, when setup is complete).
If an event has designated Early Pit Setup times both the
evening before and the morning before pits officially open, a team may use both
periods for Load-In and setup, but per this rule must leave once pit setup is
complete.
Violation: Teams will be asked to leave the pit area.
A team pit is the designated space, usually 10 ft. by 10 ft.
by 10 ft. (~3 m x 3 m x 3 m), where a team may work on their ROBOT. Each team
is assigned a pit space marked with their team number. This helps team members,
judges, and visitors find teams easily. Each team pit has a power outlet and a
table may be provided.
Teams, volunteers, FIRST staff, and guests spend a
lot of time in the pits. Get to know other teams and help each other when you
can. Time is short and help is very often right "next door" in the
adjacent team pits.
Small, bench-top machinery, with appropriate guards, is
permitted in team pits. ‘Small’ machinery is machinery that can be easily
lifted by one person and examples include, but are not limited to, small band
saws, drill presses, desktop CNC mills, and sanders.
E501
*Pits are unavailable if
closed. Teams may not be in their team pit outside the designated pit
hours.
E502
*Stay in your pit.
Teams may neither allow their materials to expand beyond their team pit
(including running power or internet lines from their team pit to any other
area), swap team pits with other teams, nor move themselves to empty team pits.
E503
*Keep aisles clear.
Aisles must be kept clear.
E504
*No sparks. Tools that
throw sparks or produce open flames are prohibited.
Examples of tools that violate this rule include, but are
not limited to, welders, bench and angle grinders, gas torches, etc.
E505
*Nothing too big. Floor
standing power tools are prohibited.
Examples include but are not limited to full-size drill
presses, band saws, and table saws.
Violation: Teams will be asked to remove or not bring in
floor standing power tools. Any items that are deemed unsafe or outside
specifications by FIRST personnel, event management, and/or local committee
members must be removed.
E506
*No brazing or welding.
Brazing/welding is prohibited.
Violation: Teams will be asked to remove or not bring in
brazing/welding tools. Any items that are deemed unsafe or outside
specifications by FIRST personnel, event management, and/or local committee
members must be removed.
E507
*Solder with specific tools
only. Soldering may be done using an electric iron/gun only.
Violation: Any items that are deemed unsafe or outside
specifications by FIRST personnel, event management, and/or local committee
members must be removed.
E508
*Structures must be safe.
Teams may not build any structure that supports people or stores items
overhead.
Violation: Any pit structures that is deemed unsafe or
outside specifications by FIRST personnel, event management, and/or local
committee members must be removed.
E509
*Secure team identification
assets. Team signs, flags, and displays must be securely mounted to the
pit structure.
Violation: Any pit structures that is deemed unsafe or
outside specifications by FIRST personnel, event management, and/or local
committee members must be removed.
FIRST Robotics Competition Practice Areas are
intended to allow teams to interact with representative FIELD elements and to
test their starting AUTO modes, they are not designed for multiple SCORING
ELEMENT AUTO modes or full FIELD play. Although some Practice Fields may
provide more space for additional strategy development, ample space for long
full FIELD interaction should not be expected. FIRST provides a
recommended layout, but events may need to tweak exact placement depending on
the space available in the venue. Teams should not relocate elements from their
original locations. The layout is specifically intended to discourage testing
of complex AUTO routines.
Practice Fields are tether-only except for some District
Championships and FIRST Championship which may choose to run a full
Field Management System on a Practice Field. For events that have full FIELDS
but are using tether, teams should expect that 2 teams are allowed on half the
field at a time. Practice Field Attendants may allow additional teams provided
teams are a safe distance from one another.
FIRST is providing a small set of production run
AprilTags for the Practice Field. The tags provided for the 2025 Practice Field
will include tags 1, 3, 5, and 6. Teams that wish to use other AprilTag IDs for
the Practice Fields may print copies of other tags to bring with them to events
but should not remove the provided tags. Printable copies of the field AprilTags
can be found on the 2025 Playing FIELD webpage.
FIRST is also providing a minimum of one “crosshatch”
pattern ALGAE which is representative of the ALGAE used on the competition
FIELD. Teams may not damage or remove it from the Practice Areas, as the supply
is limited. Additional crosshatch ALGAE may be available depending on supply.
CORAL is not provided and if a team wishes to practice with CORAL, they must
bring their own.
HUMAN PLAYERS are welcome to practice throwing ALGAE into
the Practice Field NET as long as the area around the BARGE is clear of other
ROBOTS and humans to avoid missed shots hitting people or interfering with
ROBOT testing. Priority is given to ROBOT practice over HUMAN PLAYER practice.
Teams choosing to practice throwing ALGAE must bring their own ALGAE; the
provided ALGAE are for ROBOT use only.
E601
*Inspection for Practice
Fields. A team may only use the designated event practice areas with a
ROBOT that has passed an initial, complete inspection.
E602
*Practice only when/where
permitted. Teams may only practice with their ROBOT in their pit space,
in the designated event practice areas, or while in a Practice MATCH.
Teams may not set up their own practice equipment outside
their pit. When practicing in their pit, safety must remain the top priority.
If Event Management determines a pit practice setup is unsafe or interferes
with activity in adjacent pits or aisles, the team must discontinue the
activity.
E603
Practice Field attendance is
limited. Only team members actively working on the ROBOT are allowed to
be on the Practice Field.
The intent of this rule is to limit the number of people
directly next to ROBOTS that are enabled. The recommendation is no more than 5
members per team, but some events may limit further due to available space.
Teams may have additional team members watching from a
distance, provided the venue has space, but those members should be a safe
distance from all ROBOTS operating at the Practice Field.
E604
Give ROBOTS space. When
using a tether on Practice Fields, teams must keep a safe distance from all ROBOTS
and moving elements and must not interact directly with the ROBOT when it is
enabled.
Generally, a safe distance is ~6’ (~182 cm) from the ROBOT.
E605
Be ready to DISABLE.
Teams must be ready to DISABLE their ROBOT if the ROBOT does not move in the desired
direction or in case of safety.
E606
Be safe. G102 and G103 also apply at the Practice Field(s).
Violation: VERBAL WARNING. Practice Field suspension if
subsequent violations during the event.
Most teams use carts to transport their ROBOT throughout an
event. Carts are not required but are strongly recommended (to minimize risk of
muscle strains, dropped ROBOTS, and other hazards). In addition to the rules
listed below, teams are strongly encouraged to put the team’s number on the
cart, refer to the FIRST Safety Manual for ROBOT lifting
techniques, and practice putting the ROBOT on and off the cart to develop a
safe, quick, fluid routine.
E701
*Carts must be safe and easy
to use. Carts must be easy to control, maneuver, and pose no risk to
bystanders.
E702
*Carts shouldn’t be too big.
Carts must fit through a standard 30-inch door.
E703
*Carts can’t park anywhere.
Carts must remain in the team pit (or cart staging area if during a MATCH) when
not in use.
E704
*No noisy carts. Carts
may not be equipped with music or other sound-generating devices, except for
devices of reasonable volume used for safety purposes (e.g. to make others in
the vicinity aware that a ROBOT is on the move).
E705
*No motor driven carts.
ROBOT carts may not use powered propulsion.
E706
*Small ROBOT carts are allowed
on the FIELD. ROBOT carts smaller than 2 ft 6 in. (~76 cm) by 3 ft. (~91
cm) may be brought onto the FIELD to aid in staging and retrieving the ROBOT provided
they are not left unattended and do not pose any other safety hazards.
At every event, there are Opening and Closing Ceremonies to
show honor and respect for represented countries, sponsors, teams, mentors,
volunteers, and award winners. Ceremonies provide everyone with the opportunity
to collectively applaud the successes of all participants. They also give teams
a chance to "meet" the volunteers and other people and sponsors
involved with the event. Closing Ceremony elements at the end of the event are
integrated into and presented between Playoff Matches.
At the Awards Ceremony, FIRST presents trophies and
medallions to outstanding teams. All team members are encouraged to attend the
ceremonies, be punctual, and show appreciation to volunteers that staffed the
event.
E801
*If in the pits during
Ceremonies, shhhhhh. During Ceremonies outside of Playoff MATCHES, team
members may not:
A.
use power tools
B.
use loud hand tools (hammers, saws, etc.)
C.
shout, yell, or use loud voices, unless as a demonstration of approval
during a ceremonial activity.
E802
*Pit person limit during
Ceremonies is 5. No more than 5 team members may be in the pits during
Ceremonies outside of Playoff MATCHES.
E803
*Be respectful during anthems.
Team members, including any remaining in the pits, should exhibit peaceful
behavior during the presentation of all national anthems. Traditionally, team
members stand to face the flag, remove hats, and either sing along or maintain
a respectful silence during the anthems of all nations present at the event. If
team members wish to abstain, they have a right to do so, as long as they
remain silent and non-disruptive.
E901
*No saving seats. Teams
are not permitted to save or designate seats for team members that are not
present.
Teams may not hang banners or ribbons or otherwise
designate seating. (Event staff will remove and discard any banners, roping,
etc., used to designate seating.) Please take turns sitting in the
bleachers/stands if seating is limited. If there is a crowding problem, we ask
that you kindly leave after your team's MATCH and return later, if possible.
Event management may reserve seats for attendees who
require accommodations.
E902
*Don’t throw items from the
stands. Items may not be thrown from audience seating.
|
Term
|
Definition
|
|
ACTIVE DEVICE
|
any
device capable of dynamically controlling and/or converting a source of
electrical energy by the application of external electrical stimulus
|
|
ALGAE
|
a 16.25 in. (~413 mm) ± ¼ in.
(~6 mm) diameter rubber playground ball.
|
|
ALLIANCE
|
a
cooperative of up to 4 FIRST Robotics Competition teams
|
|
ALLIANCE AREA
|
a
30 ft. wide by 13 ft. 8⅜ in. deep (~914 cm by 423 cm) infinitely tall volume
formed by, and including the ALLIANCE WALL, CORAL STATION AREAs, the edge of
the carpet, and white colored tape
|
|
ALLIANCE CAPTAIN
|
The
designated STUDENT representative from each ALLIANCE Lead
|
|
ALLIANCE WALL
|
separates
ROBOTS from DRIVE TEAM members in the ALLIANCE AREA
|
|
ANCHOR
|
a collection of surfaces at
the top of the CAGE and chain assembly
|
|
ARENA
|
includes
all elements of the game infrastructure that are required to play REEFSCAPESM
presented by Haas: the FIELD, SCORING ELEMENTS, queue area, team media area,
designated TECHNICIAN area, and all equipment needed for FIELD control, ROBOT
control, and scorekeeping
|
|
ARENA FAULT
|
an
error in ARENA operation
|
|
AUTO
|
the
first 15 seconds of the MATCH, and the FMS blocks any DRIVER control, so
ROBOTS operate with only their pre-programmed instructions
|
|
BACKUP POOL
|
the
group of teams willing and able to join an ALLIANCE during the Playoff
MATCHES, if needed
|
|
BACKUP TEAM
|
The
team whose ROBOT and DRIVE TEAM replaces another ROBOT and DRIVE TEAM on an
ALLIANCE during the Playoff MATCHES
|
|
BARGE
|
a 29 ft. 2 in. (889 cm) wide,
3 ft. 8 in. (~112 cm) deep, and 8 ft. 5 in. (~257 cm) tall structure that
spans the center of the FIELD
|
|
BARGE ZONE
|
a
3 ft. 10 in. deep by 12 ft. 2½ in. long (~117 cm by 372 cm)., infinitely
tall, 4-sided volume surrounding the ALLIANCE’S half of the BARGE. It is
bounded by and includes the ALLIANCE-colored tape.
|
|
BRANCH
|
angled or compound extensions
from the REEF vertical pipes.
|
|
BUMPER
|
a
required assembly which attaches to the ROBOT frame. BUMPERS protect ROBOTS
from damaging/being damaged by other ROBOTS and FIELD elements.
|
|
BUMPER ZONE
|
a
space between 2 ½ in. (~63 mm) and 5 ¾ in. (~146 mm) from the floor.
|
|
BYPASSED
|
a state applied to any
ROBOT which is unable or ineligible to participate in that MATCH, as
determined by the FTA, LRI, or Head REFEREE
|
|
CAGE
|
2 ft. tall and 7⅜ in. wide
(outside dimension) (~61 cm tall and ~19 cm wide) rectangular structures suspended
from the truss structure in specific locations
|
|
CHUTE
|
55°
sloped tunnel that leads to the opening in the CORAL STATION
|
|
COACH
|
a
guide or advisor
|
|
COMPONENT
|
any
part in its most basic configuration, which cannot be disassembled without
damaging or destroying the part or altering its fundamental function
|
|
CONTINUOUS
|
describes
durations that are more than approximately 10 seconds
|
|
CONTROL
|
an action by a ROBOT in which
a the SCORING ELEMENT is fully supported by or stuck in, on, or under the
ROBOT or intentionally pushes a SCORING ELEMENT to a desired location or in a
preferred direction (i.e. herding).
|
|
CORAL
|
a 11 ⅞ in. long (~30 cm) piece
of 4 in. diameter Schedule 40 Cellular (Foam) Core PVC pipe. CORAL has a 4-in.
(~102 mm) inside diameter and a 4½-in. (~11 cm) outside diameter.
|
|
CORAL STATION
|
assembly
through which HUMAN PLAYERS feed CORAL into the FIELD
|
|
CORAL STATION AREA
|
a
5 ft. 10⅞ in. wide by 13 ft. 8⅜ in. ft deep (~180 cm by 423 cm) infinitely
tall volume bounded by the CORAL STATION, edge of carpet, and ALLIANCE and
white colored tape
|
|
CORAL MARK
|
1
of 6 4 in. by 4 in. (~102 mm by 102 mm) “+” marks used to identify placement
of CORAL before the MATCH. Marks are made with black tape.
|
|
COTS
|
a
standard (i.e. not custom order) part commonly available from a VENDOR for
all teams for purchase
|
|
CUSTOM CIRCUIT
|
Any
active electrical item that is not an actuator (specified in R501) or core control system item (specified in R710)
|
|
DISABLED
|
the
state in which a ROBOT is commanded to deactivate all outputs, rendering the ROBOT
inoperable for the remainder of the MATCH
|
|
DISQUALIFIED
|
the
state of a team in which they receive 0 MATCH points and 0 Ranking Points in
a Qualification MATCH or causes their ALLIANCE to receive 0 MATCH points in a
Playoff MATCH
|
|
DRIVE TEAM
|
a
set of up to 5 people from the same FIRST Robotics Competition team
responsible for team performance for a specific MATCH
|
|
DRIVER
|
an
operator and controller of the ROBOT
|
|
DRIVER STATION
|
1
of 3 assemblies within an ALLIANCE WALL behind which a DRIVE TEAM operates
their ROBOT
|
|
FABRICATED ITEM
|
any
COMPONENT or MECHANISM that has been altered, built, cast, constructed,
concocted, created, cut, heat treated, machined, manufactured, modified,
painted, produced, surface coated, or conjured partially or completely into
the final form in which it will be used on the ROBOT
|
|
FIELD
|
an
approximately 26 ft. 5 in. (~805 cm) by 57 ft. 6⅞ in. (~1 755 cm) carpeted area
bounded by inward facing surfaces of the ALLIANCE WALLS, CORAL STATIONS,
PROCESSORS and PROCESSOR openings, and guardrails
|
|
FIELD STAFF
|
the collective group of people
working on or near the FIELD responsible
for making sure the MATCHES are cycled through efficiently, fairly, safely,
and with a spirit of cooperation, Gracious Professionalism, and generosity of
spirit
|
|
FMS
|
the
FIELD Management System
|
|
FTA
|
FIRST
Technical Advisor
|
|
HUMAN PLAYER
|
a
SCORING ELEMENT manager
|
|
HUMAN STARTING LINE
|
a
white line spanning the ALLIANCE AREA between the CORAL STATION AREAs that is
parallel to and located 2 ft. (~61 cm) from the bottom square tube of the
ALLIANCE WALL to the near edge of the tape.
|
|
INSPECTOR
|
a person determined by FIRST
to accurately and efficiently assess the legality of a given part of a ROBOT
|
|
KOP
|
the
Kit of Parts (KOP)
|
|
LINEUP
|
the
3 teams participating in the MATCH and their selected DRIVER STATIONS
|
|
LEAVE
|
a scoring accomplishment in
which a ROBOT must move such that its BUMPERS no longer overlap its ROBOT
STARTING LINE at the end of AUTO.
|
|
LRI
|
the
Lead ROBOT INSPECTOR
|
|
MAJOR FOUL
|
a
credit of 6 points towards the opponent’s MATCH point total
|
|
MAJOR MECHANISM
|
a
group of COMPONENTS and/or MECHANISMS assembled together to address at least
1 game challenge: ROBOT movement, SCORING ELEMENT manipulation, FIELD element
manipulation, or performance of a scorable task without the assistance of
another ROBOT.
|
|
MATCH
|
the
2-minute and 30-second in which a ROBOT is enabled to play REEFSCAPE
|
|
MECHANISM
|
an
assembly of COMPONENTS that provide specific functionality on the ROBOT. A
MECHANISM can be disassembled (and then reassembled) into individual
COMPONENTS without damage to the parts.
|
|
MINOR FOUL
|
a
credit of 2 points towards the opponent’s MATCH point total
|
|
MOMENTARY
|
describes
durations that are fewer than approximately 3 seconds
|
|
MXP
|
myRIO Expansion port, the
expansion port on the roboRIO
|
|
NET
|
a goal in which an ALLIANCE
scores ALGAE
|
|
OPERATOR CONSOLE
|
the
set of COMPONENTS and MECHANISMS used by the DRIVERS and/or HUMAN PLAYERS to
relay commands to the ROBOT
|
|
PARK
|
a state in which a
ROBOT’S BUMPERS must be partially or completely contained in their BARGE ZONE
at the end of the MATCH
|
|
PASSIVE CONDUCTOR
|
any
device or circuit whose capability is limited to the conduction and/or static
regulation of the electrical energy applied to it (e.g. wire, splices,
connectors, printed wiring board, etc.)
|
|
PROCESSOR
|
A goal with a rectangular
opening through which ROBOTS score ALGAE which is 2 ft. 4 in. wide (~71 cm),
1 ft. 8 in. tall (~51 cm), and 7 in. (~18 cm) from the carpet
|
|
PROCESSOR AREA
|
a
3 ft. 7⅜ in. wide by 7 ft. 6 in. deep (~110 cm by 229 cm) infinitely tall
volume formed by, and including, the ALLIANCE colored tape, guardrail, and
the PROCESSOR wall.
|
|
PCM
|
Pneumatics
Control Module
|
|
PDH
|
Power
Distribution Hub
|
|
PDP
|
Power
Distribution Panel
|
|
PH
|
Pneumatic
Hub
|
|
PIN
|
an action by a ROBOT that is preventing
the movement of an opponent ROBOT by contact, either direct or transitive
(such as against a FIELD element)
|
|
RED CARD
|
issued
by the Head REFEREE for egregious ROBOT or team member behavior or rule
violations which results in a team being DISQUALIFIED for the MATCH.
|
|
REEF
|
1 of 2 5 ft. 5 ½ in. (~166 cm)
hexagonal structures with BRANCHES that extend from each side where CORAL are
scored
|
|
REEF ZONE
|
an infinitely tall 6-sided, 7
ft. 9½ in. wide (face to face) (~237 cm), volume surrounding the ALLIANCE’S
REEF. It is bounded by and includes the ALLIANCE-colored tape.
|
|
REFEREE
|
an official who is certified
by FIRST to enforce the rules of REEFSCAPE
|
|
REPEATED
|
describes
actions that happen more than once within a MATCH
|
|
ROBOT
|
an
electromechanical assembly built by the FIRST Robotics Competition
team to play the current season’s game and includes all the basic systems
required to be an active participant in the game –power, communications,
control, BUMPERS, and movement about the FIELD
|
|
ROBOT PERIMETER
|
the part of a ROBOT contained
within the BUMPER ZONE and established while in the ROBOT’S STARTING
CONFIGURATION, that is comprised of fixed, non-articulated structural
elements of the ROBOT
|
|
ROBOT STARTING LINE
|
a
black line that spans the width of the FIELD between each REEF and the BARGE.
It is positioned such that it is 7 ft. 4 in. (~224 cm) from the REEF.
|
|
RP
|
Ranking
Points
|
|
RPM
|
Radio
Power Module
|
|
RS
|
Ranking
Score
|
|
RSL
|
ROBOT
Signal Light
|
|
SCORING ELEMENT
|
a CORAL or an ALGAE
|
|
SIGNAL LEVEL
|
a term used to characterize
circuits which draw ≤1A continuous and have a source incapable of delivering
>1A, including but not limited to roboRIO non-PWM outputs, CAN signals,
PCM/PH Solenoid outputs, VRM 500mA outputs, RPM outputs, and Arduino outputs
|
|
STARTING CONFIGURATION
|
the
physical configuration in which a ROBOT starts a MATCH
|
|
STUDENT
|
a
person who has not completed high-school, secondary school, or the comparable
level as of September 1 prior to Kickoff
|
|
SURROGATE
|
a team randomly assigned by the FMS to play an extra Qualification MATCH
|
|
TECHNICIAN
|
a
resource for ROBOT troubleshooting, setup, and removal from the FIELD
|
|
TELEOP
|
the
Teleoperated Period
|
|
VENDOR
|
a
legitimate business source for COTS items that satisfies criteria defined in Section 8
ROBOT Construction Rules
|
|
VERBAL WARNING
|
a
warning issued by event staff or the Head REFEREE.
|
|
VRM
|
Voltage
Regulator Module
|
|
YELLOW CARD
|
issued
by the Head REFEREE for egregious ROBOT or team member behavior or rule
violations
|
